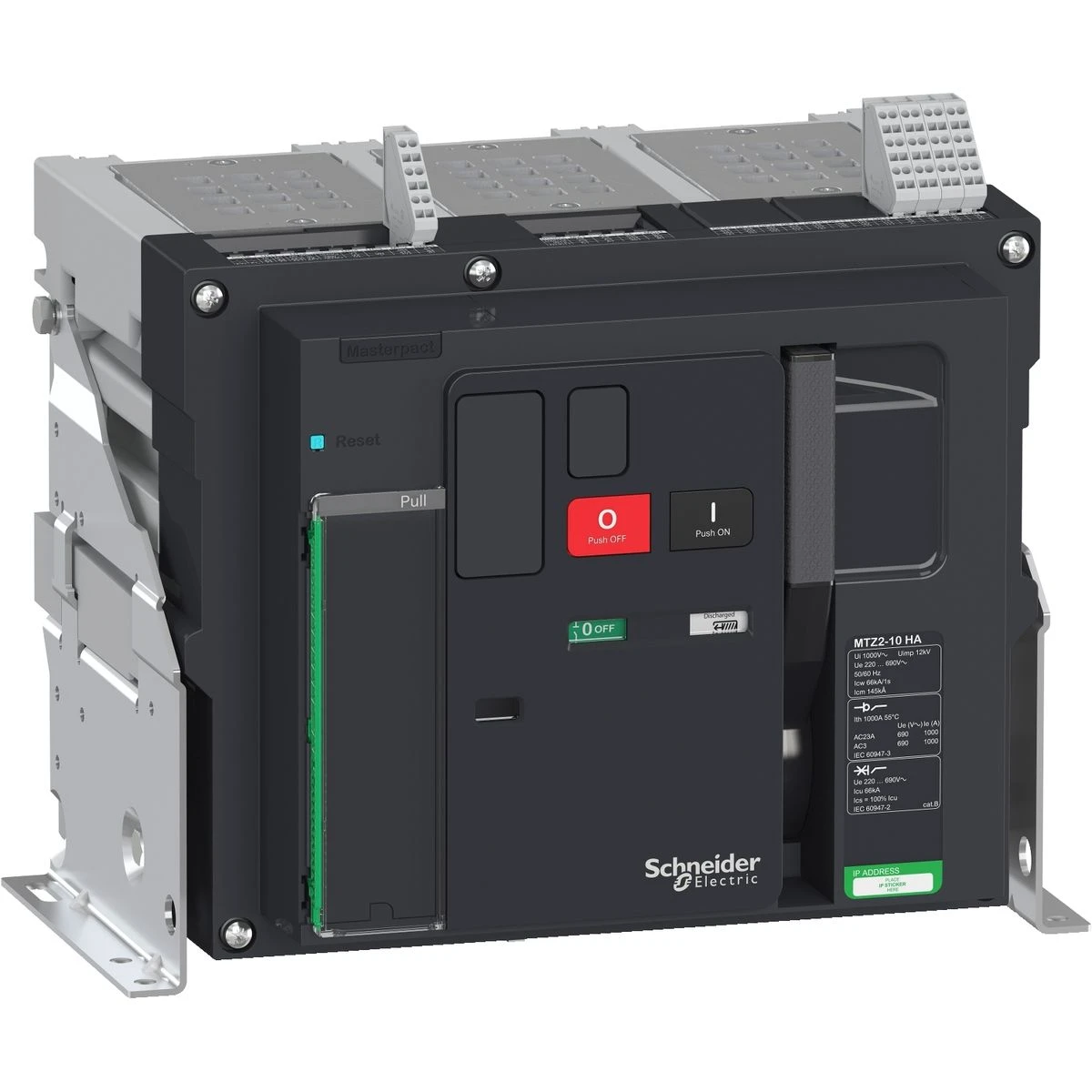

LV848019 - Switch disconnector, MasterPact MTZ2 10HA, 1000A, 145kA/690VAC 50/60Hz (Icm), 3P, fixed - Schneider Electric

Expected in 2-4 weeks EAN: 3606480813375
LV848019 - Switch disconnector, MasterPact MTZ2 10HA, 1000A, 145kA/690VAC 50/60Hz (Icm), 3P, fixed - Schneider Electric - Switch disconnector, MasterPact MTZ2 10HA, 1000A, 145kA/690VAC 50/60Hz (Icm), 3P, fixed - Schneider Electric - 0
EAN: 3606480813375
LV848019 - Switch disconnector, MasterPact MTZ2 10HA, 1000A, 145kA/690VAC 50/60Hz (Icm), 3P, fixed - Schneider Electric
2 433,69 € excl. VAT
3 017,78 € incl. VAT
Text About:
Switch disconnector, MasterPact MTZ2 10HA, 1000A, 145kA/690VAC 50/60Hz (Icm), 3P, fixed - Schneider Electric
3 017,78 €
SPECIFICATIONS
Main
Range Masterpact
sectioning ability Oui se conformer à EN/CEI 60947-3
job category AC-23A
AC-3
type of product or equipment Interrupteur-sectionneur
[ui] rated insulation voltage 1000 V CA 50/60 Hz se conformer à EN/CEI 60947-3
visible cut Non
switch-disconnector name Masterpact MTZ2 10 HA
performance level HA
Complementary
"no" connection 115 mm
[icm] rated short circuit making capacity 145 kA crête 220...690 V CA à 50/60 Hz
[ie] rated operational current 1000 A CA 50/60 Hz 690 V
[ue] rated operational voltage 690 V CA 50/60 Hz se conformer à EN/CEI 60947-3
application Distribution
[ics] rated service breaking capacity 66 kA à 220...690 V CA 50/60 Hz se conformer à EN/CEI 60947-2
[icw] rated short-time withstand current 36 kA pendant 3 s se conformer à EN/CEI 60947-3
66 kA pendant 1s se conformer à EN/CEI 60947-3
Handle front plate colour 352 mm
[uimp] rated impulse withstand voltage 12 kV se conformer à EN/CEI 60947-3
mechanical life 25000 cycle avec maintenance préventive périodique se conformer à EN/CEI 60947-3
product weight 50 kg
fully apparent cut Oui
mode d'installation Fixe
electrical life AC-23A: 10000 cycle 440 V CA 50/60 Hz se conformer à EN/CEI 60947-3
AC-23A: 10000 cycle 690 V CA 50/60 Hz se conformer à EN/CEI 60947-3
AC-3: 6000 cycle 440 V CA 50/60 Hz se conformer à EN/CEI 60947-3
AC-3: 6000 cycle 690 V CA 50/60 Hz se conformer à EN/CEI 60947-3
width (w) 422 mm
network frequency 50/60 Hz
depth 300 mm
Network type CA
order type Bouton-poussoir
Poles description 3P
Environment
degree of pollution 3 se conformer à EN/CEI 60947-4-1
ip degree of protection IP30
product certificates certificat CEI CE
operating ambient temperature -25…70 °C
standards EN/CEI 60947-3
storage room temperature -40…85 °C
About this product

The LV848019 - Switch disconnector, MasterPact MTZ2 10HA, 1000A, 145kA/690VAC 50/60Hz (Icm), 3P, fixed is crafted to serve the obligations of sector experts, such as switchboard fabricators, wiremen, maintenance service providers, and original producers. LV848019 delivers extraordinary integrity and beneficence for experts in the energy management industry. This Switch disconnector, MasterPact MTZ2 10HA, 1000A, 145kA/690VAC 50/60Hz (Icm), 3P, fixed and other Masterpact MTZ from Schneider Electric are on offer at the unbeatable price and turnaround time through BALTELEC.EU, a reputable retailer aiding practitioners in their collection needs.

Users who have selected Schneider Electric Masterpact MTZ have consistently applauded the maker's resilience. It has been mentioned that the superlative efficiency of LV848019 - Switch disconnector, MasterPact MTZ2 10HA, 1000A, 145kA/690VAC 50/60Hz (Icm), 3P, fixed extends to a variety of deployments. Its exceptional qualities make it perfect choice for various requirements, securing success in your industrial, tertiary, and automation endeavors.

BaltElec dedicates in addressing industrial and tertiary professionals’ needs. We know the customized standards and standards of our clients in the niche. By aligning with Baltelec team, your enterprise secure access to the leading pricing and stock of the top-of-the-line products like LV848019 - Switch disconnector, MasterPact MTZ2 10HA, 1000A, 145kA/690VAC 50/60Hz (Icm), 3P, fixed from Schneider Electric at the lowest price. Baltelec account members receive additional savings and dedicated support.

Begin today and order LV848019 - Switch disconnector, MasterPact MTZ2 10HA, 1000A, 145kA/690VAC 50/60Hz (Icm), 3P, fixed at our certified and hassle-free platform. Don't delay in making this wise investment that warrants the superior quality and fulfills the special requests of traders like your firm.

If you face any issues or concerns about LV848019 - Switch disconnector, MasterPact MTZ2 10HA, 1000A, 145kA/690VAC 50/60Hz (Icm), 3P, fixed or any other Schneider Electric products, contact us or refer to our Knowledge base section below. We have brought together answers to habitual matters to support you further in making an enlightened decision about industrial and tertiary electrical components.

Remember, LV848019 - Switch disconnector, MasterPact MTZ2 10HA, 1000A, 145kA/690VAC 50/60Hz (Icm), 3P, fixed from Schneider Electric is safe, economical, and high-quality to other producers in the Masterpact MTZ category. Make it a part of your electrical system today. Snap up at Baltelec e-shop, your dependable vendor for all your Masterpact MTZ.

In our Baltelec.eu dot-com store you will discover Switch disconnector, MasterPact MTZ2 10HA, 1000A, 145kA/690VAC 50/60Hz (Icm), 3P, fixed - LV848019 worth 2,969.10 €, which will be a faithful and up-to-date solution for your wishes. This merchandise is fabricated by the Schneider Electric brand using the up-to-the-minute technologies and meets the peak standards of reliability and performance. We give objects from the Masterpact MTZ category that fuse toughness and utility, which is an exceptional decision for various intents. Without consideration of whether you crave equipment for small production or for proficient industrial implementation, Switch disconnector, MasterPact MTZ2 10HA, 1000A, 145kA/690VAC 50/60Hz (Icm), 3P, fixed will be a secure helper in your duty.

Baltelec endeavors to make the purchasing process as smooth and fast as attainable for our clients. We offer detailed reports and high-quality illustrations of Switch disconnector, MasterPact MTZ2 10HA, 1000A, 145kA/690VAC 50/60Hz (Icm), 3P, fixed so that you can make an versed choice. A team of experts is always ready to help you with any enquiries in the Masterpact MTZ section involved to the choice and use of equipment. We are confident that Switch disconnector, MasterPact MTZ2 10HA, 1000A, 145kA/690VAC 50/60Hz (Icm), 3P, fixed will meet your expectations and become an needed element of your equipment for just 2,969.10 €.

FAQ about Schneider Electric Switch disconnector, MasterPact MTZ2 10HA, 1000A, 145kA/690VAC 50/60Hz (Icm), 3P, fixed:
