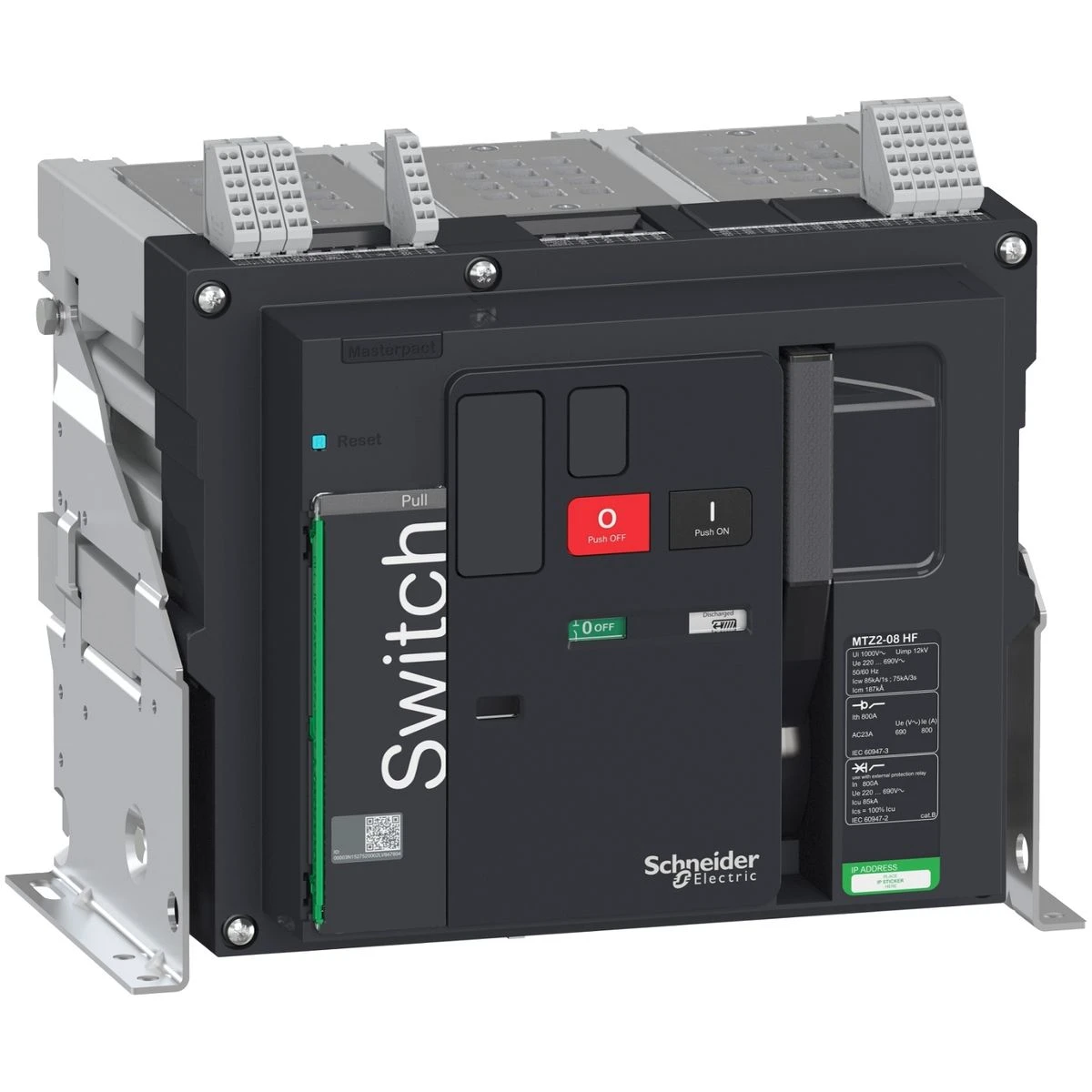

LV848006 - Switch disconnector, MasterPact MTZ2 08HF, 800A, 187kA/690VAC 50/60Hz (Icm), 3P, fixed - Schneider Electric

Pending restock EAN: 3606480817366

EAN: 3606480817366

2 182,57 € excl. VAT

2 706,39 € incl. VAT

Text About:

Switch disconnector, MasterPact MTZ2 08HF, 800A, 187kA/690VAC 50/60Hz (Icm), 3P, fixed - Schneider Electric

In cart

2 706,39 €

SPECIFICATIONS

Main

Range Masterpact

sectioning ability Oui se conformer à EN/CEI 60947-3

job category AC-23A
AC-3

type of product or equipment Interrupteur-sectionneur

[ui] rated insulation voltage 1000 V CA 50/60 Hz se conformer à EN/CEI 60947-3

visible cut Non

switch-disconnector name Masterpact MTZ2 08 HF

performance level HF

Complementary

"no" connection 115 mm

[icm] rated short circuit making capacity 187 kA crête 220...690 V CA à 50/60 Hz

[ie] rated operational current 800 A CA 50/60 Hz 690 V

[ue] rated operational voltage 690 V CA 50/60 Hz se conformer à EN/CEI 60947-3

application Distribution

[icw] rated short-time withstand current 50 kA pendant 3 s se conformer à EN/CEI 60947-3
85 kA pendant 1s se conformer à EN/CEI 60947-3

Handle front plate colour 352 mm

[uimp] rated impulse withstand voltage 12 kV se conformer à EN/CEI 60947-3

mechanical life 25000 cycle avec maintenance préventive périodique se conformer à EN/CEI 60947-3

product weight 50 kg

fully apparent cut Oui

mode d'installation Fixe

electrical life AC-23A: 10000 cycle 440 V CA 50/60 Hz se conformer à EN/CEI 60947-3
AC-23A: 10000 cycle 690 V CA 50/60 Hz se conformer à EN/CEI 60947-3
AC-3: 6000 cycle 440 V CA 50/60 Hz se conformer à EN/CEI 60947-3
AC-3: 6000 cycle 690 V CA 50/60 Hz se conformer à EN/CEI 60947-3

width (w) 422 mm

network frequency 50/60 Hz

depth 300 mm

Network type CA

order type Bouton-poussoir

Poles description 3P

Environment

degree of pollution 3 se conformer à EN/CEI 60947-4-1

ip degree of protection IP30

product certificates certificat CEI CE

operating ambient temperature -25…70 °C

standards EN/CEI 60947-3

storage room temperature -40…85 °C
