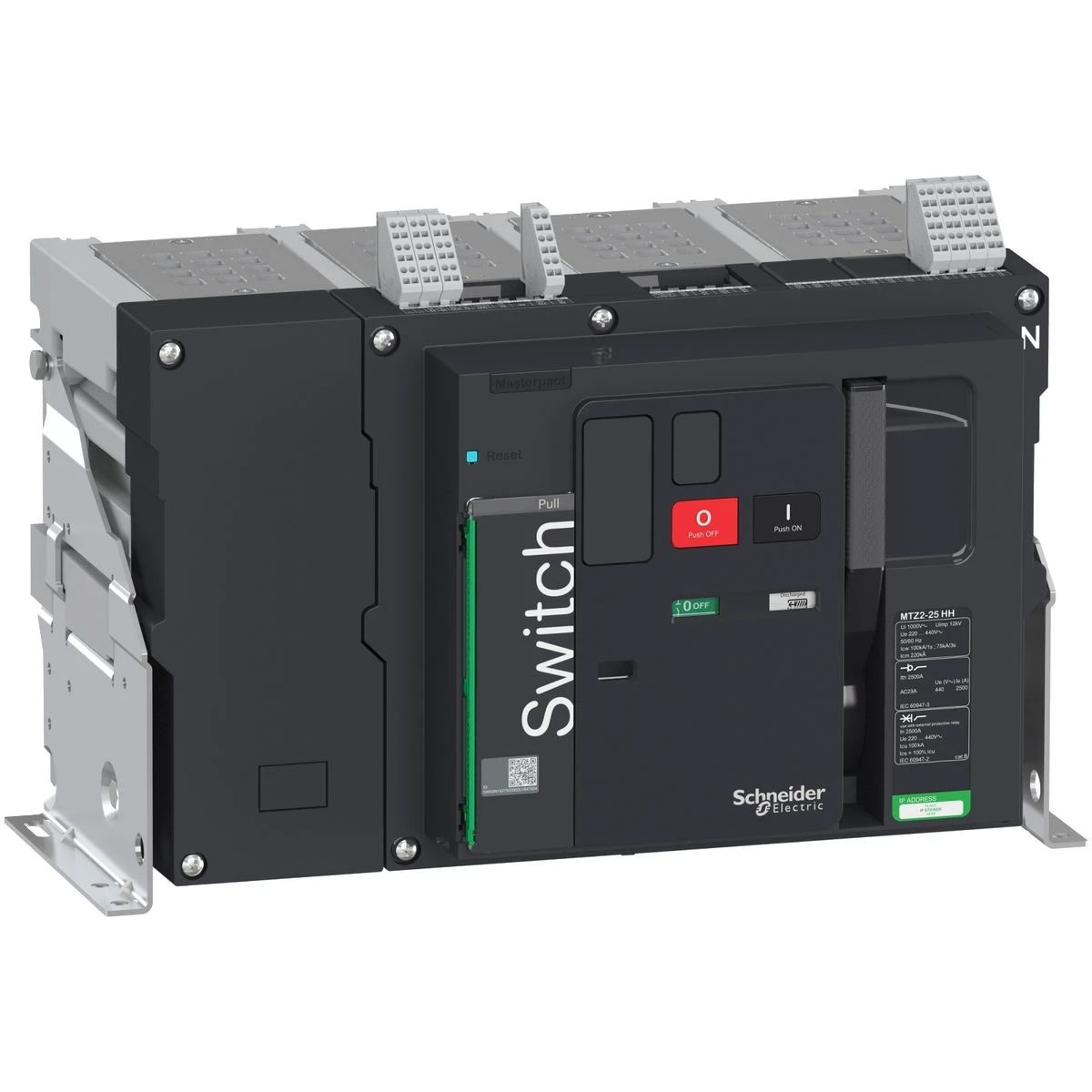

LV846343 - Switch disconnector, MasterPact MTZ2 25HH, 2500A, 220kA/440VAC 50/60Hz (Icm), 4P, fixed, right Neutral - Schneider Electric

Expected in 2-4 weeks EAN: 3606481462749
LV846343 - Switch disconnector, MasterPact MTZ2 25HH, 2500A, 220kA/440VAC 50/60Hz (Icm), 4P, fixed, right Neutral - Schneider Electric - Switch disconnector, MasterPact MTZ2 25HH, 2500A, 220kA/440VAC 50/60Hz (Icm), 4P, fixed, right Neutral - Schneider Electric - 0
EAN: 3606481462749
LV846343 - Switch disconnector, MasterPact MTZ2 25HH, 2500A, 220kA/440VAC 50/60Hz (Icm), 4P, fixed, right Neutral - Schneider Electric
7 737,38 € excl. VAT
9 439,60 € incl. VAT
Text About:
Switch disconnector, MasterPact MTZ2 25HH, 2500A, 220kA/440VAC 50/60Hz (Icm), 4P, fixed, right Neutral - Schneider Electric
9 439,60 €
SPECIFICATIONS
Main
Range Masterpact
sectioning ability Oui se conformer à EN/CEI 60947-3
job category AC-23A
AC-3
type of product or equipment Interrupteur-sectionneur
[ui] rated insulation voltage 1000 V CA 50/60 Hz se conformer à EN/CEI 60947-3
visible cut Non
switch-disconnector name MasterPact MTZ2 25 HH
performance level HH
Complementary
"no" connection 115 mm
[icm] rated short circuit making capacity 220 kA crête 220/415 V CA à 50/60 Hz
220 kA crête 440 V CA à 50/60 Hz
[ie] rated operational current 2500 A CA 50/60 Hz 440 V
[ue] rated operational voltage 440 V CA 50/60 Hz se conformer à EN/CEI 60947-3
application Distribution
[ics] rated service breaking capacity 100 kA à 220/415 V CA 50/60 Hz se conformer à EN/CEI 60947-2
100 kA à 440 V CA 50/60 Hz se conformer à EN/CEI 60947-2
[icw] rated short-time withstand current 75 kA pendant 3 s se conformer à EN/CEI 60947-3
100 kA pendant 1s se conformer à EN/CEI 60947-3
Handle front plate colour 352 mm
[uimp] rated impulse withstand voltage 12 kV se conformer à EN/CEI 60947-3
mechanical life 15000 cycle avec maintenance préventive périodique se conformer à EN/CEI 60947-3
product weight 65 kg
fully apparent cut Oui
mode d'installation Fixe
electrical life AC-23A: 5000 cycle 440 V CA 50/60 Hz se conformer à EN/CEI 60947-3
width (w) 537 mm
network frequency 50/60 Hz
depth 300 mm
Network type CA
order type Bouton-poussoir
Poles description 4P
Environment
degree of pollution 3 se conformer à EN/CEI 60947-4-1
ip degree of protection IP30
product certificates certificat CEI CE
operating ambient temperature -25…70 °C
standards EN/CEI 60947-3
storage room temperature -40…85 °C
About this product

The LV846343 - Switch disconnector, MasterPact MTZ2 25HH, 2500A, 220kA/440VAC 50/60Hz (Icm), 4P, fixed, right Neutral is formulated to fulfill the needs of industry experts, such as control panel builders, electrical technicians, repair companies, and equipment creators. LV846343 supplies extraordinary performance and value for planners in the power management industry. This Switch disconnector, MasterPact MTZ2 25HH, 2500A, 220kA/440VAC 50/60Hz (Icm), 4P, fixed, right Neutral and other Masterpact MTZ from Schneider Electric can be obtained at the most competitive price and shipment duration through baltelec.eu, a trustworthy vendor meeting the needs of professionals in their obtaining needs.

Engineers who have procured Schneider Electric Masterpact MTZ have commonly appreciated the manufacturer’s dependability. It has been pointed out that the notable competence of LV846343 - Switch disconnector, MasterPact MTZ2 25HH, 2500A, 220kA/440VAC 50/60Hz (Icm), 4P, fixed, right Neutral extends to a multitude of deployments. Its elite traits make it right choice to satisfy a wide array of needs, ensuring the success of your industrial, tertiary, and automation projects.

BALTELEC focuses in catering industrial and tertiary professionals’ needs. We appreciate the customized criteria and standards of our clients in the realm. By cooperating with BALTELEC, our partners access access to the finest price and availability of high-quality products like LV846343 - Switch disconnector, MasterPact MTZ2 25HH, 2500A, 220kA/440VAC 50/60Hz (Icm), 4P, fixed, right Neutral from Schneider Electric at the most competitive price. Authorized buyers receive special savings and exclusive assistance.

Get started and obtain LV846343 - Switch disconnector, MasterPact MTZ2 25HH, 2500A, 220kA/440VAC 50/60Hz (Icm), 4P, fixed, right Neutral at our protected and accessible online portal. Don't delay in making this intelligent move that confirms the superior quality and complies with the individual requests of buyers like your firm.

If you encounter any issues or concerns about LV846343 - Switch disconnector, MasterPact MTZ2 25HH, 2500A, 220kA/440VAC 50/60Hz (Icm), 4P, fixed, right Neutral or any other Schneider Electric products, connect with us or refer to our Assistance center section below. We have collected answers to routine issues to advise you further in making an considered decision about industrial and tertiary electrical components.

Remember, LV846343 - Switch disconnector, MasterPact MTZ2 25HH, 2500A, 220kA/440VAC 50/60Hz (Icm), 4P, fixed, right Neutral from Schneider Electric is sure, economical, and better to opposing companies in the Masterpact MTZ category. Make it a part of your configuration right now. Order at Baltelec e-shop, your reliable retailer for all your Schneider Electric.

In our Baltelec.eu dot-com store you will detect Switch disconnector, MasterPact MTZ2 25HH, 2500A, 220kA/440VAC 50/60Hz (Icm), 4P, fixed, right Neutral - LV846343 worth 9,439.60 €, which will be a secure and new solution for your demands. This goods is fabricated by the Schneider Electric brand using the current technologies and follows the highest standards of guarding and capability. We supply produce from the Masterpact MTZ category that merge durability and workability, which is an superb option for various operations. Without consideration of whether you want tools for small formation or for proficient industrial use, Switch disconnector, MasterPact MTZ2 25HH, 2500A, 220kA/440VAC 50/60Hz (Icm), 4P, fixed, right Neutral will be a trustworthy partner in your endeavor.

Baltelec strives to make the purchasing process as smooth and fast as achievable for our clients. We offer detailed narratives and high-quality photos of Switch disconnector, MasterPact MTZ2 25HH, 2500A, 220kA/440VAC 50/60Hz (Icm), 4P, fixed, right Neutral so that you can make an informed choice. A team of masters is always ready to help you with any questions in the Masterpact MTZ section affiliated to the choosing and use of wares. We are positive that Switch disconnector, MasterPact MTZ2 25HH, 2500A, 220kA/440VAC 50/60Hz (Icm), 4P, fixed, right Neutral will meet your expectations and become an essential element of your kit for just 9,439.60 €.
