Main
composition of signaling contacts
1 F/O
Range
Masterpact
name of the device
CE
type of product or equipment

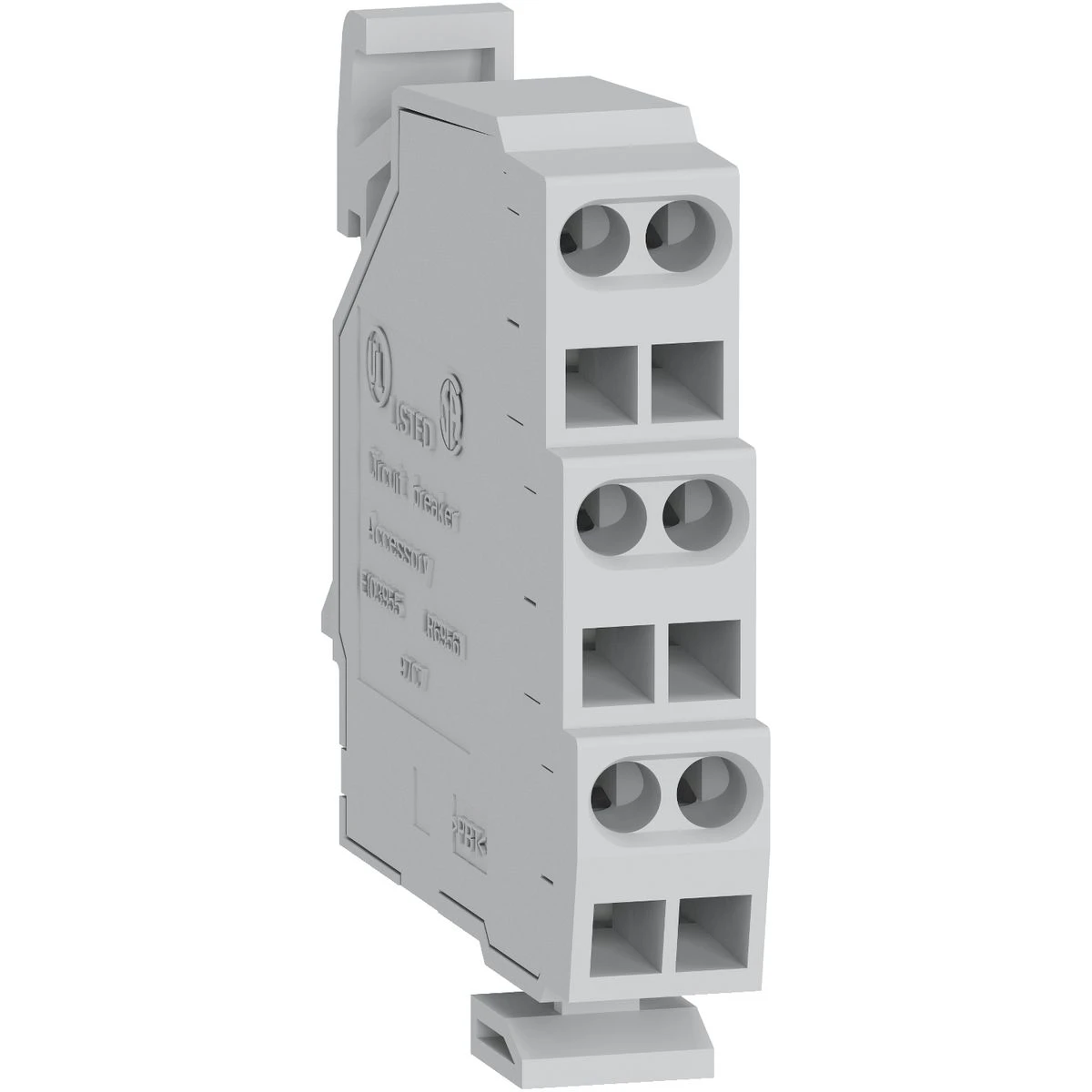

Contact auxiliaire
charge minimum
100 mA à 24 V
operation of auxiliary contacts
Position connectée
Complementary
[ie] rated operational current
AC-12: 6 A à 690 V CA 50/60 Hz
AC-12: 8 A à 240 V CA 50/60 Hz
AC-12: 8 A à 380 V CA 50/60 Hz
AC-12: 8 A à 480 V CA 50/60 Hz
DC-12: 0,8 A à 125 V CC
DC-12: 2,5 A à 24/48 V CC
DC-12: 0,3 A à 150 V CC
application
Contrôle
range compatibility
Masterpact (MasterPacT MTZ1) disjoncteur
Masterpact (MasterPacT MTZ2) disjoncteur
Masterpact (MasterPacT MTZ3) disjoncteur
mode d'installation
Extraire
type of auxiliary contacts
De base
