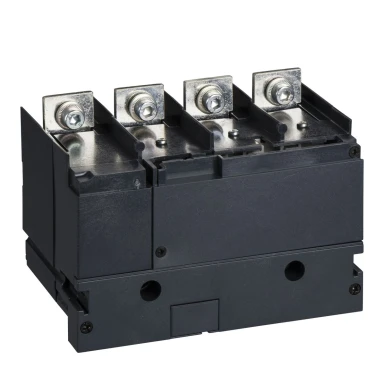

LV432862 - Current transformer module with voltage output, ComPact NSX630, 600 A rating, 4 poles - Schneider Electric

Expected in 2-4 weeks

572,85 € excl. VAT

698,87 € incl. VAT

Text About:

Current transformer module with voltage output, ComPact NSX630, 600 A rating, 4 poles - Schneider Electric

In cart

698,87 €

SPECIFICATIONS

Main

Device short name CT module and voltage output

Complementary

[in] rated current 600 A

[ue] rated operational voltage 530 V

auxiliary connection terminal Cable connector 2.5 mm²

range compatibility ComPact (ComPact NSX630)
ComPact (ComPacT INS)
ComPact (Compact INV)

Product or component type Current transformer

accuracy class Class 0.5

Device application Control

Electrical shock protection class Class II

network frequency 50/60 Hz

Ik degree of protection IK04 conforming to IEC 62262

current transformer ratio 600/5 A

Network type AC

Power consumption in va 2 VA

Poles description 4P

Environment

ip degree of protection IP40 conforming to IEC 60529
