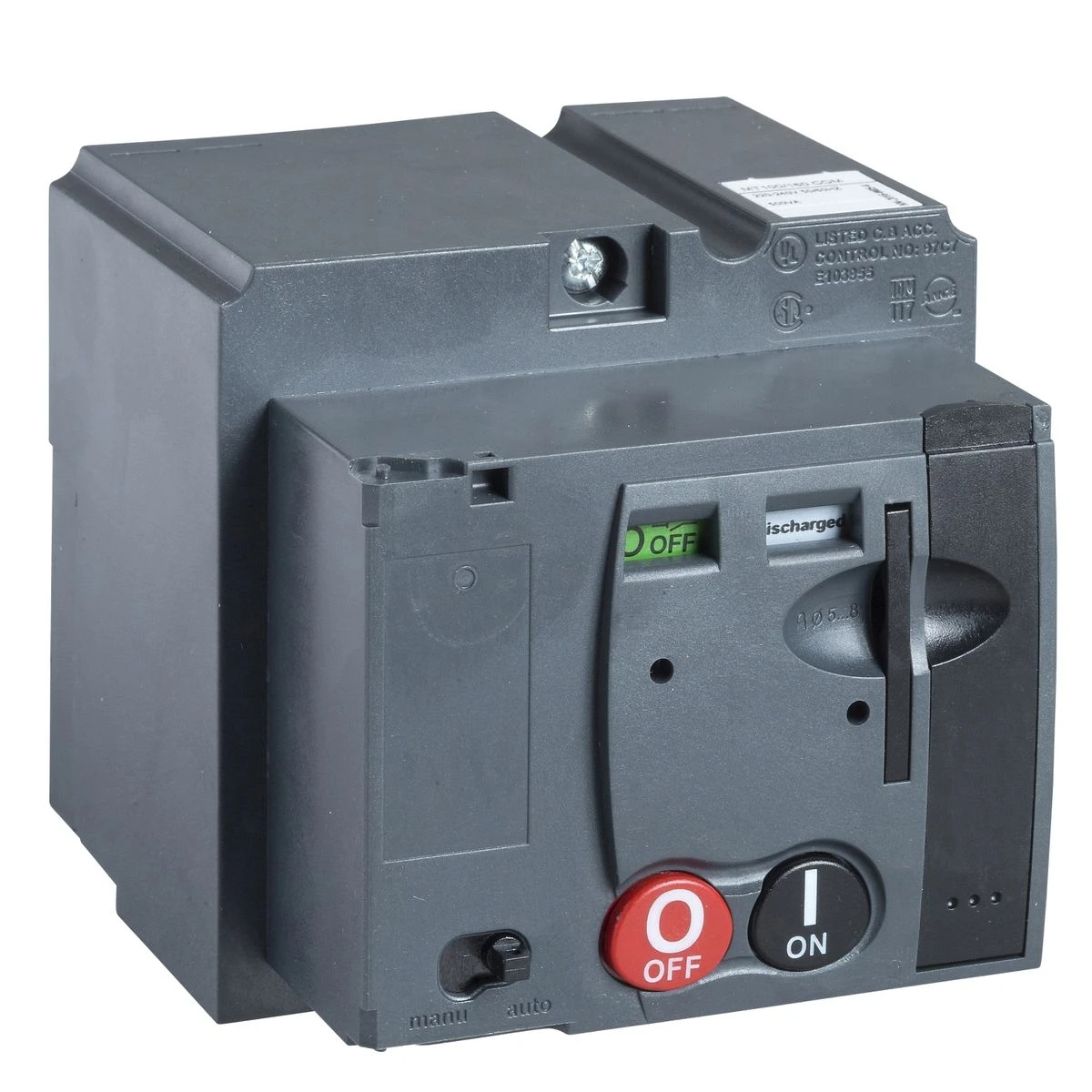

LV429441 - Communicating motor mechanism module MTc 100/160, ComPact NSX100/160, 220/240 VAC 50/60 Hz - Schneider Electric

Expected in 2-4 weeks

385,01 €

Text About:

Communicating motor mechanism module MTc 100/160, ComPact NSX100/160, 220/240 VAC 50/60 Hz - Schneider Electric

In cart

385,01 €

SPECIFICATIONS

Main

Device short name MT250

[uc] control circuit voltage 220...240 V AC 50/60 Hz

circuit breaker mounting mode Fixed

circuit breaker frame rated current 100 A
160 A

Complementary

circuit breaker response time < 700 ms open
< 80 ms closed

maximum operating frequency 4 per minute

range compatibility ComPacT new generation (ComPacT NSX100 new generation)
ComPacT new generation (ComPacT NSX160 new generation)
ComPact (ComPact NSX100)
ComPact (ComPact NSX160)
ComPact (ComPacT NSX DC new generation) NSX100 DC
ComPact (ComPacT NSX DC new generation) NSX160 DC
ComPact Compact NSX100 DC
ComPact Compact NSX160 DC
PowerPact Multistandard (PowerPact Multistandard)
EasyPact (EasyPact CVS250)
PowerPact (PowerPact J)
PowerPact (PowerPact H)

Control type Communicating

maximum power consumption in va 500 VA closing
500 VA opening

control signal type Impulse
Maintained

Product or component type Motor mechanism

Locking options description 1 to 3 padlocks Ø 5 to Ø 8
Padlocking in OFF position

Device application Automatic spring charging

Provided equipment SDE adaptor
