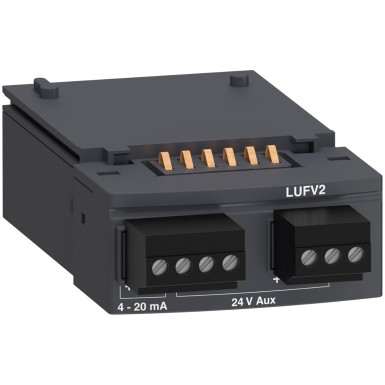

LUFV2 - Function module, TeSys Ultra, 24VDC, front side, indication of motor load 4 to 20 mA - Schneider Electric

Pending restock EAN: 3389110365498

EAN: 3389110365498

100,70 € excl. VAT

124,87 € incl. VAT

Text About:

Function module, TeSys Ultra, 24VDC, front side, indication of motor load 4 to 20 mA - Schneider Electric

In cart

124,87 €

SPECIFICATIONS

Main

Range TeSys

name of the device LUF

type of product or equipment Module de fonction

main function available Indication de charge moteur

Complementary

"no" connection 3,81 mm

associated accessories LUCC
LUCM
LUCB
LUCD

[un] rated nominal voltage 24 V CC

tightening torque 0,2…0,25 N.m - avec tournevis 2,5 mm plat

analog output function 4…20 mA

mounting location Avant

product weight 0,05 kg

mode d'installation Plug-in

ohmic load impedance 100 Ohm typique
<= 500 Ohm

connection mode Borniers à vis-étrier 1 câble(s) 0,14…1 mm² souple sans extrémité de câble
Borniers à vis-étrier 1 câble(s) 0,14…1 mm² rigide sans extrémité de câble
Borniers à vis-étrier 1 câble(s) 0,25…0,5 mm² souple avec extrémité de câble
Borniers à vis-étrier 1 câble(s) 0,25…1 mm² souple avec extrémité de câble
Borniers à vis-étrier 2 câble(s) 0,14…0,5 mm² rigide sans extrémité de câble
Borniers à vis-étrier 2 câble(s) 0,14…0,75 mm² souple sans extrémité de câble
Borniers à vis-étrier 2 câble(s) 0,25…0,34 mm² souple avec extrémité de câble
Borniers à vis-étrier 2 câble(s) 0,5 mm² souple avec extrémité de câble

type of cable to associate AWG 26...AWG 16

output signal type Valeur de la moyenne I/rapport Ir dans la plage de 0 à 2 pour LUCB et LUCD
Valeur de la moyenne I/rapport Ir dans la plage de 0 à 3 pour LUCC

measurement accuracy +/- 10 % avec unité de contrôle multifonctionnelle - résolution: 1 % d’Ir
+/- 6 % avec unité de contrôle avancée
