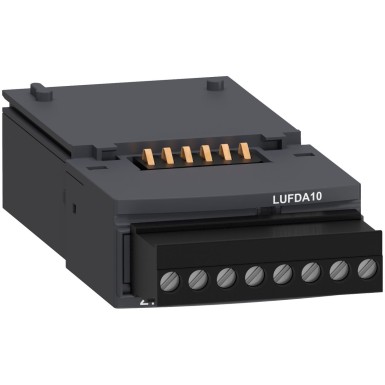

LUFDA10 - Function module, TeSys Ultra, 1NO, 24 to 240VAC/DC, Front side, thermal overload signalling - Schneider Electric

Pending restock EAN: 3389110109849

EAN: 3389110109849

122,57 € excl. VAT

151,99 € incl. VAT

Text About:

Function module, TeSys Ultra, 1NO, 24 to 240VAC/DC, Front side, thermal overload signalling - Schneider Electric

In cart

151,99 €

SPECIFICATIONS

Main

Range TeSys

name of the device LUF

type of product or equipment Module de fonction

main function available Signalisation de surcharge thermique et réinitialisation automatique ou distante

Complementary

"no" connection 5,08 mm

associated accessories LUCB
LUCC
LUCD

[un] rated nominal voltage 24...240 V CC
24...240 V CA

power consumption 7 mA à 24 V CC
1,1 mA à 240 V CA

[ith] conventional thermal current 2 A à <70 °C

tightening torque 0,5…0,6 N.m - avec tournevis 3,5 mm plat

auxiliary contacts 1 "F"

mounting location Avant

product weight 0,055 kg

mode d'installation Plug-in

logic output function 1 "F" (AC-15) à 230 V - puissance: 400 VA - pérennité de service: 100000 cycle
1 "F" (DC-13) à 24 V - puissance: 50 W - pérennité de service: 100000 cycle

connection mode Borniers à vis-étrier 2 câble(s) 0,2…1 mm² souple sans extrémité de câble
Borniers à vis-étrier 2 câble(s) 0,2…1 mm² rigide sans extrémité de câble
Borniers à vis-étrier 2 câble(s) 0,25…1 mm² souple avec extrémité de câble
Borniers à vis-étrier 2 câble(s) 0,5…1 mm² souple avec extrémité de câble

fault indication DEL face avant

type of entry Réinitialisation à distance - section de câble: 0,2…1,5 mm² <500 m - impédance relative: 50 Ohm 52,8 mH - capacité du câble: 0,093 nF

short circuit protection 2 A fusible gG se conformer à CEI 60947-5-1
