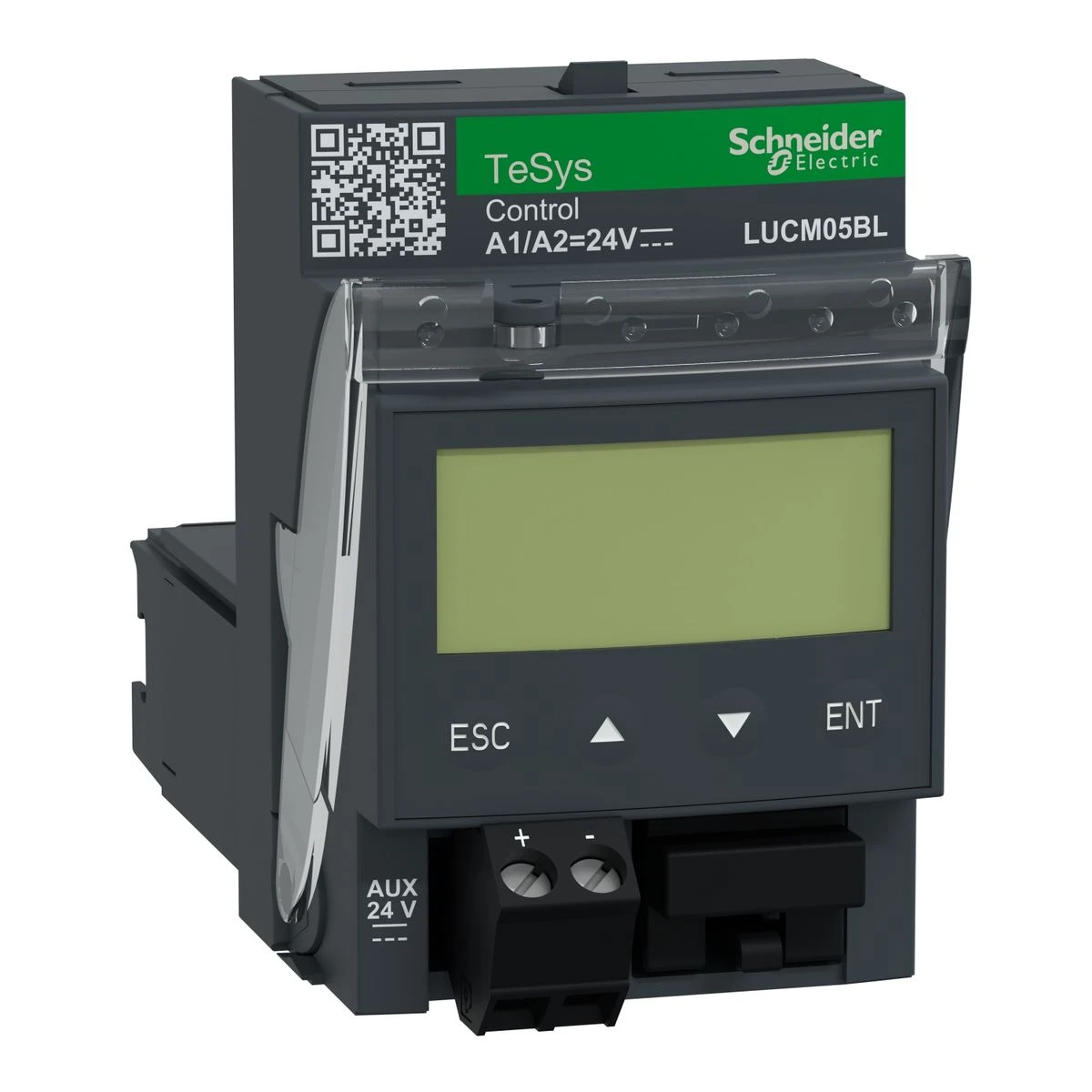

LUCM05BL - Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil - Schneider Electric
Class 5…30 - frequency limit: 50…60 Hz - temperature compensation: -25…55 °C conforming to UL 508
English, French, German, Italian, Spanish - setting settable
600 V conforming to UL 60947-4-1
600 V conforming to CSA C22.2 No 60947-4-1
Earth fault protection
Protection against phase failure and phase imbalance
Manual or automatic reset
Log function
Protection against overload and short-circuit
Differentiation of thermal overload and magnetic fault
Overload, no-load running
Monitoring function, indication of main motor parameters
Manual - setting: factory setting
Manual - setting: setting range
Remote reset - setting: setting range
2.2 kW at 500 V AC 50/60 Hz for 3 phases motors
3 kW at 690 V AC 50/60 Hz for 3 phases motors
0.55 kW at 400...440 V AC 50/60 Hz for 1 phase motors
Power base LUB32
Power base LUB38
Power base LUB120
Power base LUB320
Power base LUB380
Reversing contactor breaker LU2B12BL
Reversing contactor breaker LU2B32BL
Reversing contactor breaker LU2B38BL
UL
CSA
CCC
EAC
ASEFA
ATEX
Marine
Motor protection
14.5 V for DC circuit 24 V drop-out
Average current (settable)
Cause of last 5 faults (settable)
Current in phase (settable)
Earth leakage current (settable)
Phase imbalance (settable)
Thermal state of motor (settable)
1.8 W for control circuit with LUB32
1.8 W for control circuit with LUB38
0.8 W for external auxiliary circuit
3-phase motor - cooling: self-cooled, force cooled - setting settable
Single-phase motor - cooling: self-cooled, force cooled - setting settable
2 lines of 12 characters - display LCD - French - accuracy +/- 5 % - resolution 1 % of Ir
2 lines of 12 characters - display LCD - German - accuracy +/- 5 % - resolution 1 % of Ir
2 lines of 12 characters - display LCD - Italian - accuracy +/- 5 % - resolution 1 % of Ir
2 lines of 12 characters - display LCD - Spanish - accuracy +/- 5 % - resolution 1 % of Ir
35 ms opening with LUB32 for control circuit
35 ms opening with LUB38 for control circuit
75 ms closing with LUB12 for control circuit
65 ms closing with LUB32 for control circuit
65 ms closing with LUB38 for control circuit
8 kV level 4 on contact conforming to IEC 61000-4-2
15 gn power poles closed conforming to IEC 60068-2-27
400 V SELV between the control or auxiliary circuit and the main circuit conforming to IEC 60947-1
120 s - reset manual - setting factory setting
AC-44
AC-43
200 mA at 24 V DC I maximum while closing with LUB32
200 mA at 24 V DC I maximum while closing with LUB38
70 mA at 24 V DC I rms sealed with LUB12
75 mA at 24 V DC I rms sealed with LUB32
75 mA at 24 V DC I rms sealed with LUB38
IP20 other faces conforming to IEC 60947-1
IP40 front panel outside connection zone conforming to IEC 60947-1
IEC 60947-6-2
UL 60947-4-1, with phase barrier
CSA C22.2 No 60947-4-1, with phase barrier
650 °C conforming to IEC 60695-2-12
4 gn, 5…300 Hz, power poles closed conforming to IEC 60068-2-6
4 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4
The LUCM05BL - Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil is devised to match the needs of professional purchasers, such as circuit designers, electrical installers, management services, and equipment creators. LUCM05BL offers impressive performance and merit for specialists in the electrical and automation industry. This Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil and other TeSyS Ultra from Schneider Electric are procurable at the most competitive price and delivery schedule through BaltElec online store, a credible distributor supporting engineers in their collection needs.
Contractors who have procured Schneider Electric TeSyS Ultra have consistently complimented the manufacturer’s dependability. It has been remarked that the extraordinary capability of LUCM05BL - Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil extends to a wide range of deployments. Its supreme components make it fitting for wide-ranging specifications. Your developed solution will excel in quality, energy-efficiency and price.
Our specialists dedicates in meeting industrial and tertiary professionals’ needs. We appreciate the unique needs and demands of our consumers in the domain. By teaming up with us, our customers receive access to the premier charges and inventory of high-quality products like LUCM05BL - Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil from Schneider Electric at the lowest price. Registered customers get additional savings and dedicated support.
Begin today and request LUCM05BL - Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil at our safe and intuitive online portal. Don't delay in making this shrewd option that ensures the greatest quality and meets the customized standards of vendors like your business.
If you encounter any uncertainties or concerns about LUCM05BL - Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil or any other Schneider Electric products, drop us a line or refer to our FAQ section section below. We have collected answers to typical uncertainties to guide you further in making an smart decision about industrial and tertiary electrical components.
Remember, LUCM05BL - Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil from Schneider Electric is safe, economical, and premier to other brands in the TeSyS Ultra category. Make it a part of your infrastructure at once. Get at baltele.eu, your preferred supplier for all your Schneider Electric.
In our Baltelec.eu cyber store you will encounter Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil - LUCM05BL worth 585.31 €, which will be a trustworthy and contemporary solution for your desires. This article is invented by the Schneider Electric brand using the modern technologies and follows the uppermost standards of precaution and efficiency. We extend items from the TeSyS Ultra category that associate resilience and usability, which is an first-rate choice for various roles. Notwithstanding of whether you need equipment for small formation or for professional industrial employment, Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil will be a faithful adjunct in your job.
Baltelec tries to make the attaining process as manageable and fast as viable for our patrons. We offer detailed depictions and high-quality illustrations of Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil so that you can make an knowledgeable choice. A team of authorities is always ready to help you with any wonder in the TeSyS Ultra section affiliated to the electing and use of goods. We are sure that Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil will meet your demands and become an essential element of your kit for just 585.31 €.
FAQ about Schneider Electric LUCM05BL:
-
What are the advantages of buying Schneider Electric Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil from BaltElec?
When you order LUCM05BL - Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil from Baltelec, you get genuine quality Schneider Electric TeSyS Ultra products at the best prices and delivery schedule. Moreover, our buyerstake pleasure in additional savings and first-class attention.
-
LUCM05BL - Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil is appropriate for my contract?
To ensure that Schneider Electric Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil is suitable for your use case, we provide detailed details pertaining to product's specs, features, and applicable standards. You can find this information on the specific page of the item model. If you need more guidance, our support team representative is available to aid you in making an informed decision.
-
What guarantee coverage is offered for LUCM05BL - Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil?
BALTELEC stands for the excellence of the items we distribute. The regular warranty coverage for Schneider Electric TeSyS Ultra including LUCM05BL is 12 months. However, it depends depending on the particular item, product category, and may even be extended. You can locate comprehensive warranty information on the Schneider Electric LUCM05BL product page or by getting in touch with our customer service representatives.
-
Can you provide worldwide shipping for LUCM05BL - Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil as well as other Schneider Electric items?
Yes. Besides serving Estonia, Latvia, Lithuania and other European Union countries, we provide global shipping for LUCM05BL - Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil. However that shipping options, costs, and delivery times might differ depending on the destination. In the case of bulk inquiries, feel free to reach out to BALTELEC sales team.
-
Do Schneider Electric MBC offered by Baltelec.eu comply with global standards for safety and quality?
Completely. All Schneider Electric items available at Baltelec web store conform to international norms such as IEC 60898-1 standard and carry the CE mark. These norms guarantee that the products meet rigorous security, technological, dependability, and performance requirements.
-
Can BALTELEC offer assistance on integrating renewable energy solutions, such as solar energy systems or wind power converters, into my projects?
Certainly! BaltElec acknowledges the relevance of sustainable energy integration within projects. Our team of experts can help you in picking the appropriate Schneider Electric items, to incorporate them into your renewable energy solutions}. We can offer advice on combining solar power systems, wind power converters, and alternative sustainable options to optimize energy generation and effectiveness.
-
Are there energy-efficient options offered within the TeSyS Ultra category to encourage green energy initiatives?
Certainly! Baltelec.eu online store provides numerous eco-friendly solutions in the category of TeSyS Ultra that are in line with energy-saving goals. Our brand's Schneider Electric products, such as the LUCM05BL - Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil, are crafted with energy efficiency in mind. By integrating these products into your electrical system, you can optimize energy usage and minimize environmental impact. Additionally, we offer affordable pricing for our green Schneider Electric products,, making them an economical choice for advocating sustainability.
-
Is Multifunction control unit, TeSys Ultra, 1P/3P, 1.25 to 5A, 690VAC, protection & diagnostic, class 5 to 30, 24VDC coil available by BALTELEC authentic?
Indeed, we solely provide genuine Schneider Electric products, such as LUCM05BL. We source our products only through authorized distribution channels to guarantee their legitimacy and superior standards.
