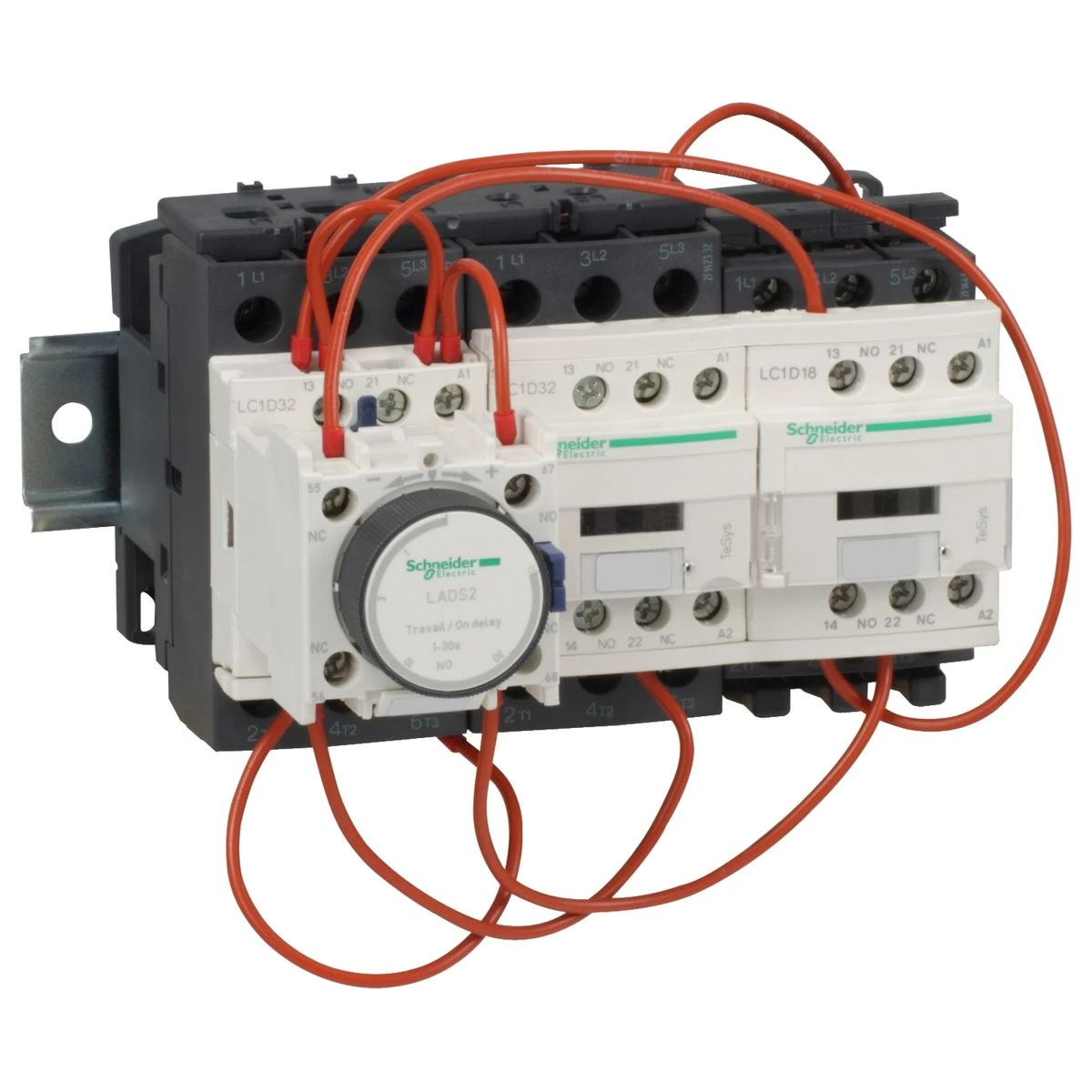

LC3D320AP7 - TeSys Deca , star delta starter , 3 x 3P (3 NO) , 32 A , 230 V AC coil - Schneider Electric

Pending restock
LC3D320AP7 - TeSys Deca , star delta starter , 3 x 3P (3 NO) , 32 A , 230 V AC coil - Schneider Electric - TeSys Deca , star delta starter , 3 x 3P (3 NO) , 32 A , 230 V AC coil - Schneider Electric - 0
LC3D320AP7 - TeSys Deca , star delta starter , 3 x 3P (3 NO) , 32 A , 230 V AC coil - Schneider Electric
444,83 € excl. VAT
551,58 € incl. VAT
Text About:
TeSys Deca , star delta starter , 3 x 3P (3 NO) , 32 A , 230 V AC coil - Schneider Electric
551,58 €
SPECIFICATIONS
Main
Contactor application Motor control
Device short name LC3D
Interlocking type Mechanical
Range TeSys
TeSys Deca
[uc] control circuit voltage 230 V AC 50/60 Hz
Product Name TeSys Deca
[ui] rated insulation voltage Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Signalling circuit: 600 V CSA certified
Signalling circuit: 600 V UL certified
Power circuit: 1000 V conforming to IEC 60947-4-1
Signalling circuit: 1000 V conforming to IEC 60947-1
Safety cover Protective cover
control circuit type AC at 50/60 Hz
motor power kW 15 kW at 220/230 V AC 50/60 Hz
25 kW at 380/400 V AC 50/60 Hz
30 kW at 415 V AC 50/60 Hz
30 kW at 440 V AC 50/60 Hz
Complementary
[ie] rated operational current 32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
[ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz
Product certifications RINA
GOST
LROS (Lloyds register of shipping)
BV
CCC
UL
DNV
CSA
GL
Handle front plate colour 124 mm
Product or component type Star delta starter
tightening torque Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
[uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Auxiliary contact composition 1 NC for KM1 star contactor
Connections - terminals Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 1 1…10 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: solid without cable end
minimum switching current 5 mA for signalling circuit
Auxiliary contacts type Mechanically linked conforming to IEC 60947-5-1 3 x 1 NO + 1 NC
Mirror contact conforming to IEC 60947-4-1 3 x 1 NC
Control circuit voltage limits Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)
Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
width (w) 166 mm
mechanical robustness Vibrations contactor open: 2 Gn, 5...300 Hz
Vibrations contactor closed: 4 Gn, 5...300 Hz
Shocks contactor closed: 15 Gn for 11 ms
Shocks contactor open: 8 Gn for 11 ms
Flame retardance V1 conforming to UL 94
Heat dissipation 2…3 W at 50/60 Hz
Net weight 2.03 kg
Hold-in power consumption in va 7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
7 VA 50 Hz cos phi 0.3 (at 20 °C)
Mounting support Rail
depth 149 mm
Inrush power in va 70 VA 60 Hz cos phi 0.75 (at 20 °C)
70 VA 50 Hz cos phi 0.75 (at 20 °C)
mechanical durability 15 Mcycles
electrical durability 1.65 Mcycles 32 A AC-3 at Ue <= 440 V
Device presentation Pre-wired
Pollution degree 3
Maximum operating rate 30 cyc/h 60 °C
minimum switching voltage 17 V for signalling circuit
Power pole contact composition 3 x 3 NO
non-overlap time 1.5 ms on de-energisation between NC and NO contact
1.5 ms on energisation between NC and NO contact
coil technology Without built-in suppressor module
Starting time 30 s
Poles description 3 x 3P
Utilisation category AC-3
Signalling circuit frequency 25...400 Hz
Environment
Ambient air temp for storage/transportation -60…80 °C
Climatic withstand conforming to IACS E10
conforming to IEC 60947-1 Annex Q category D
ip degree of protection IP20 front face conforming to IEC 60529
operating altitude 3000 m without derating
ambient air temperature for operation -40…70 °C at Uc
overvoltage category III
standards IEC 60947-4-1
EN 60947-5-1
CSA C22.2 No 14
EN 60947-4-1
IEC 60947-5-1
UL 508
IEC 60335-1
fire resistance 850 °C conforming to IEC 60695-2-1
protective treatment TH conforming to IEC 60068-2-30
insulation resistance > 10 MOhm for signalling circuit
About this product

The LC3D320AP7 - TeSys Deca , star delta starter , 3 x 3P (3 NO) , 32 A , 230 V AC coil is produced to fulfill the demands of trade buyers, such as switchboard fabricators, circuit experts, facility upkeep providers, and primary equipment suppliers. LC3D320AP7 provides extraordinary reliability and advantages for experts in the electrotechnical industry. This TeSys Deca , star delta starter , 3 x 3P (3 NO) , 32 A , 230 V AC coil and other TeSyS Deca Contactors from Schneider Electric can be ordered the best price and lead time through BALTELEC website, an independent distributor attending to professionals in their collection needs.

Buyers who have selected Schneider Electric TeSyS Deca Contactors have continuously approved the maker's durability. It has been outlined that the unmatched competence of LC3D320AP7 - TeSys Deca , star delta starter , 3 x 3P (3 NO) , 32 A , 230 V AC coil extends to a spectrum of deployments. Its top-notch qualities make it well-suited solution to meet diverse demands, guaranteeing the success of your industrial, tertiary, and automation contracts.

Our experts commits in providing for industrial and tertiary professionals’ needs. We understand the individual specifications and expectations of our patrons in the realm. By working with our team, your organization acquire access to the top costs and lead time of top-tier products like LC3D320AP7 - TeSys Deca , star delta starter , 3 x 3P (3 NO) , 32 A , 230 V AC coil from Schneider Electric at a budget-friendly price. Registered users enjoy exclusive discounts and priority service.

Make a move and grab LC3D320AP7 - TeSys Deca , star delta starter , 3 x 3P (3 NO) , 32 A , 230 V AC coil at our well-established and streamlined online portal. Don't delay in making this sensible option that affirms the utmost quality and covers the targeted necessities of contractors like you.

When you have any problems or concerns about LC3D320AP7 - TeSys Deca , star delta starter , 3 x 3P (3 NO) , 32 A , 230 V AC coil or any other Schneider Electric products, communicate with us or refer to our Assistance center section below. We have curated answers to common concerns to benefit you further in making an thoughtful decision about industrial and tertiary electrical components.

Remember, LC3D320AP7 - TeSys Deca , star delta starter , 3 x 3P (3 NO) , 32 A , 230 V AC coil from Schneider Electric is reliable, cost-effective, and first-rate to opposing companies in the TeSyS Deca Contactors category. Feel free to make it a part of your infrastructure today. Buy at Baltelec webstore, your steady distributor for all your professional electrical equipment and automation needs.

In our Baltelec.eu internet store you will discover TeSys Deca , star delta starter , 3 x 3P (3 NO) , 32 A , 230 V AC coil - LC3D320AP7 worth 542.69 €, which will be a steadfast and current solution for your necessities. This product is fabricated by the Schneider Electric brand using the state-of-the-art technologies and conforms to the premier standards of defense and workmanship. We provide commodities from the TeSyS Deca Contactors category that mix endurance and utility, which is an premium possibility for various applications. In defiance of whether you require tools for small construction or for competent industrial application, TeSys Deca , star delta starter , 3 x 3P (3 NO) , 32 A , 230 V AC coil will be a steadfast assistant in your work.

Baltelec labors to make the procuring process as manageable and fast as practicable for our patrons. We offer detailed depictions and high-quality illustrations of TeSys Deca , star delta starter , 3 x 3P (3 NO) , 32 A , 230 V AC coil so that you can make an knowledgeable choice. A team of specialists is always ready to help you with any concerns in the TeSyS Deca Contactors section tied to the deciding and use of merchandise. We are confident that TeSys Deca , star delta starter , 3 x 3P (3 NO) , 32 A , 230 V AC coil will meet your needs and become an vital element of your machinery for just 542.69 €.
