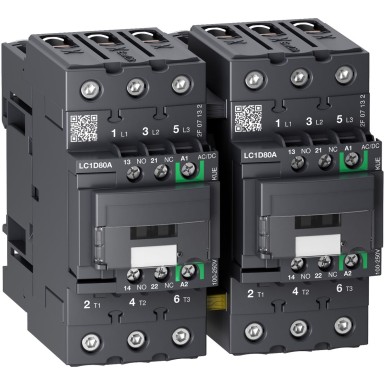

LC2D80ABNE - Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24 to 60VAC/DC coil - Schneider Electric
Resistive load
TeSys Deca
24...60 V DC
TeSys Deca
10 hp at 230/240 V AC 60 Hz for 1 phase motors
20 hp at 200/208 V AC 60 Hz for 3 phases motors
20 hp at 230/240 V AC 60 Hz for 3 phases motors
40 hp at 460/480 V AC 60 Hz for 3 phases motors
50 hp at 575/600 V AC 60 Hz for 3 phases motors
Signalling circuit: 690 V conforming to IEC 60947-1
DC AC/DC electronic
37 kW at 380...400 V AC 50 Hz
37 kW at 415 V AC 50 Hz
37 kW at 440 V AC 50 Hz
37 kW at 500 V AC 50 Hz
37 kW at 660...690 V AC 50 Hz
66 A (at <60 °C) at <= 440 V AC-3 for power circuit
66 A (at <60 °C) AC-3e for power circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit
520 A 40 °C - 10 s for power circuit
900 A 40 °C - 1 s for power circuit
110 A 40 °C - 10 min for power circuit
260 A 40 °C - 1 min for power circuit
80 A (at 60 °C) for power circuit
CSA
EAC
UL
KC
DNV-GL
LROS (Lloyds register of shipping)
UKCA
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25…35 mm² hexagonal screw head 4 mm
Power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1…25 mm² hexagonal screw head 4 mm
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm²flexible with cable end
Power circuit: EverLink BTR screw connectors 2 cable(s) 1…25 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid
Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm²solid
Power circuit: EverLink BTR screw connectors 2 cable(s) 1…25 mm²solid
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible
Power circuit: EverLink BTR screw connectors 1 cable(s) 1…35 mm²flexible
Power circuit: EverLink BTR screw connectors 2 cable(s) 1…25 mm²flexible
125 A gG at <= 690 V coordination type 1 for power circuit
125 A gG at <= 690 V coordination type 2 for power circuit
type mirror contact 1 NC conforming to IEC 60947-4-1
0.85...1.1 Uc (-40…60 °C):operational AC
0.8...1.1 Uc (-40…60 °C):operational DC
1...1.1 Uc (60…70 °C):operational AC/DC
Vibrations contactor closed: 4 Gn, 5...300 Hz
Shocks contactor open: 10 Gn for 11 ms
Shocks contactor closed: 15 Gn for 11 ms
Green (SE GREEN 2)
Plate
6.5 W AC-3
0.5 Mcycles 80 A AC-1 at Ue <= 440 V
1 Mcycles 66 A AC-3e
250 A DC for signalling circuit conforming to IEC 60947-5-1
1000 A at 440 V for power circuit conforming to IEC 60947
20...80 ms opening
1.5 ms on energisation between NC and NO contact
AC-3
AC-3e
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
conforming to IEC 60947-1 Annex Q category D
60…70 °C with derating
EN/IEC 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
IEC 60335-1
The LC2D80ABNE - Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24 to 60VAC/DC coil is fashioned to cover the needs of trade buyers, such as system integrators, wiremen, service providers, and primary equipment suppliers. LC2D80ABNE supplies impressive standards and asset for engineers in the energy management industry. This Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24 to 60VAC/DC coil and other TeSyS Deca Contactors from Schneider Electric can be bought the best price and fulfillment period through BALTELEC.EU, an independent provider attending to technicians in their purchasing needs.
Technicians who have bought Schneider Electric TeSyS Deca Contactors have frequently praised the manufacturer’s resilience. It has been noted that the notable effectiveness of LC2D80ABNE - Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24 to 60VAC/DC coil extends to a broad spectrum of implementations. Its exceptional qualities make it right choice to cater to varied requirements, ensuring your industrial, tertiary and automation projects success.
BaltElec team specializes in addressing industrial and tertiary professionals’ needs. We appreciate the unique demands and preferences of our patrons in the realm. By cooperating with Baltelec team, your enterprise gain access to the superior price lists and delivery period of superior products like LC2D80ABNE - Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24 to 60VAC/DC coil from Schneider Electric at the lowest price. Registered users appreciate additional savings and top-tier service.
Get started and buy LC2D80ABNE - Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24 to 60VAC/DC coil at our risk-free and streamlined virtual storefront. Don't delay in making this prudent action that affirms the best quality and complies with the distinct necessities of customers like your firm.
In case you have any worries or concerns about LC2D80ABNE - Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24 to 60VAC/DC coil or any other Schneider Electric products, communicate with us or refer to our Support section section below. We have put together answers to popular questions to benefit you further in making an well-considered decision about industrial and tertiary electrical components.
Remember, LC2D80ABNE - Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24 to 60VAC/DC coil from Schneider Electric is secure, low-cost, and top-notch to its counterparts in the TeSyS Deca Contactors category. Feel free to make it a part of your electrical system right now. Obtain at baltele.eu, your reliable retailer for all your TeSyS Deca Contactors.
In our Baltelec.eu online store you will come across Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24 to 60VAC/DC coil - LC2D80ABNE worth 839.20 €, which will be a trustworthy and new solution for your wishes. This product is produced by the Schneider Electric brand using the modern technologies and satisfies the premier standards of safety and competence. We furnish items from the TeSyS Deca Contactors category that fuse lastingness and operability, which is an exceptional pick for various applications. In defiance of whether you demand equipment for small construction or for competent industrial exploitation, Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24 to 60VAC/DC coil will be a faithful assistant in your duty.
Baltelec works to make the buying process as effortless and fast as viable for our customers. We offer detailed depictions and high-quality images of Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24 to 60VAC/DC coil so that you can make an knowledgeable choice. A team of professionals is always ready to help you with any issues in the TeSyS Deca Contactors section relevant to the nomination and use of articles. We are sure that Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24 to 60VAC/DC coil will meet your criteria and become an needed element of your gear for just 839.20 €.
Popular Questions about LC2D80ABNE - Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24 to 60VAC/DC coil:
-
What are the benefits of ordering Schneider Electric Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24 to 60VAC/DC coil from BaltElec?
When you buy Schneider Electric LC2D80ABNE from BaltElec, you will get authentic high-quality Schneider Electric TeSyS Deca Contactors products at the finest pricing and lead time. Furthermore, returning customersget further discounts and preferred assistance.
-
Can Baltelec consult if Schneider Electric LC2D80ABNE is appropriate for my project?
To confirm that Schneider Electric LC2D80ABNE is suitable for your project, we offer thorough information regarding product's technical specifications, technical characteristics, and compatibility. You can find this data on the product page of the item name. If you seek additional help, our support team representative is prepared to assist you in reaching an educated decision.
-
Which warranty coverage is offered for LC2D80ABNE - Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24 to 60VAC/DC coil?
Baltelec.eu team emphasizes the excellence of the products we sell. The standard warranty coverage for Schneider Electric TeSyS Deca Contactors including LC2D80ABNE is 1 year. However, it depends based on the specific product, product category, and could be longer. You can find detailed guarantee information on the Schneider Electric LC2D80ABNE product page or by reaching out to our customer support team.
-
Can you arrange global shipping for Schneider Electric LC2D80ABNE as well as other Schneider Electric items?
Certainly. Besides serving Estonia, Latvia, Lithuania and other European Union countries, we provide global shipping for Schneider Electric Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24 to 60VAC/DC coil. Please note that shipping options, fees, and shipping times might differ depending on the destination. In the case of complicated purchases, please consult BALTELEC sales representatives.
-
Do Schneider Electric MBC provided by BaltElec adhere to international norms for safety and reliability?
Of course. All Schneider Electric products available at BALTELEC online store adhere to global standards such as IEC 60898-1 standard and carry the CE certification. Such norms assure that the items fulfill strict safety, technical, reliability, and functional criteria.
-
Can BaltElec provide assistance on integrating renewable energy solutions, such as solar power systems or wind power converters, into my projects?
Yes, sure! Baltelec online store understands the relevance of clean energy incorporation within community. Our group of specialists can help you in choosing the suitable Schneider Electric products, to incorporate them into your renewable energy solutions}. We can offer recommendations on integrating solar power systems, wind energy converters, and other sustainable options to optimize energy generation and effectiveness.
-
Do you have energy-efficient options offered within the TeSyS Deca Contactors category to promote energy conservation efforts?
Absolutely! Baltelec.eu online store provides various eco-friendly solutions in the category of TeSyS Deca Contactors that align with energy-saving goals. Our brand's Schneider Electric products, like the Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24 to 60VAC/DC coil, are crafted with environmental friendliness in mind. By using these products into your electrical system, you can maximize energy usage and minimize environmental impact. Additionally, we offer competitive pricing for our energy-efficient Schneider Electric products,, making them an cost-effective choice for promoting sustainability.
-
Is LC2D80ABNE sold by Baltelec online store original?
Yes, we solely provide genuine Schneider Electric products, including but not limited to Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24 to 60VAC/DC coil. We procure our products only through legitimate distribution channels to assure their legitimacy and superior performance.
