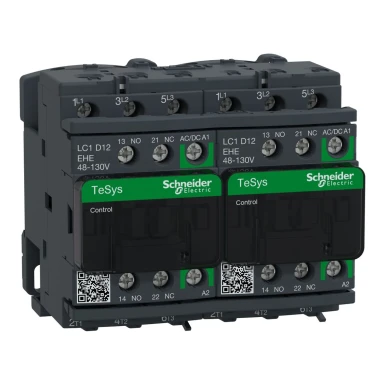

LC2D12EHE - TeSys Deca reversing contactor 3P <= 440 V 12 A AC3 48...130 V AC/DC coil - Schneider Electric

Expected in 2-4 weeks

178,68 € excl. VAT

217,99 € incl. VAT

Text About:

TeSys Deca reversing contactor 3P <= 440 V 12 A AC3 48...130 V AC/DC coil - Schneider Electric

In cart

217,99 €

SPECIFICATIONS

Main

Contactor application Resistive load
Motor control

Device short name LC2D

Interlocking type Mechanical

Range TeSys
TeSys Deca

[uc] control circuit voltage 48...130 V AC 50/60 Hz
48...130 V DC

Front cover With

Product Name TeSys D Green
TeSys Deca

Motor power hp (ul / csa) 0.5 hp at 115 V AC 60 Hz for 1 phase motors
2 hp at 230/240 V AC 60 Hz for 1 phase motors
3 hp at 200/208 V AC 60 Hz for 3 phases motors
3 hp at 230/240 V AC 60 Hz for 3 phases motors
7.5 hp at 460/480 V AC 60 Hz for 3 phases motors
10 hp at 575/600 V AC 60 Hz for 3 phases motors

[ui] rated insulation voltage Power circuit: 690 V conforming to IEC 60947-4-1
Signalling circuit: 690 V conforming to IEC 60947-1

control circuit type AC at 50/60 Hz AC/DC electronic
DC AC/DC electronic

motor power kW 3 kW at 220...230 V AC 50 Hz
5.5 kW at 380...400 V AC 50 Hz
5.5 kW at 415 V AC 50 Hz
5.5 kW at 440 V AC 50 Hz
7.5 kW at 500 V AC 50 Hz
7.5 kW at 660...690 V AC 50 Hz

average impedance 2.5 mOhm - Ith 25 A 50 Hz for power circuit

Complementary

[ie] rated operational current 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit

[ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz

[ics] rated service breaking capacity 250 A at 440 V for power circuit conforming to IEC 60947

[icw] rated short-time withstand current 105 A 40 °C - 10 s for power circuit
210 A 40 °C - 1 s for power circuit
30 A 40 °C - 10 min for power circuit
61 A 40 °C - 1 min for power circuit
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit

[ith] conventional thermal current 10 A (at 60 °C) for signalling circuit
25 A (at 60 °C) for power circuit

Product certifications CCC
CSA
EAC
UL
KC
DNV-GL
LROS (Lloyds register of shipping)
UKCA

Handle front plate colour 77 mm

Product or component type Reversing contactor

tightening torque Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2

[uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947

Auxiliary contact composition 1 NO + 1 NC

Connections - terminals Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Power circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Power circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid
Power circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid

minimum switching current 5 mA for signalling circuit

Associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1
40 A gG at <= 690 V coordination type 1 for power circuit
25 A gG at <= 690 V coordination type 2 for power circuit

Auxiliary contacts type type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
type mirror contact 1 NC conforming to IEC 60947-4-1

Control circuit voltage limits <= 0.1 Uc (-40…70 °C):drop-out AC/DC
0.85...1.1 Uc (-40…60 °C):operational AC/DC
1...1.1 Uc (60…70 °C):operational AC/DC

width (w) 90 mm

mechanical robustness Vibrations contactor open: 2 Gn, 5...300 Hz
Vibrations contactor closed: 4 Gn, 5...300 Hz
Shocks contactor open: 10 Gn for 11 ms
Shocks contactor closed: 15 Gn for 11 ms

Colour Grey (SE GREY 6)
Green (SE GREEN 2)

Flame retardance V1 conforming to UL 94

Heat dissipation 0.8 W at 50/60 Hz

Net weight 0.793 kg

Hold-in power consumption in va 1.3 VA (at 20 °C) 50/60 Hz

Hold-in power consumption in w 0.8 W at 20 °C

Mounting support Plate
Rail

power dissipation per pole 1.56 W AC-1
0.36 W AC-3

depth 86 mm

Inrush power in va 25 VA 50/60 Hz (at 20 °C)

inrush power in w 24 W at 20 °C

mechanical durability 15 Mcycles

electrical durability 2.3 Mcycles 11 A AC-3 at Ue <= 440 V
0.8 Mcycles 25 A AC-1 at Ue <= 440 V

Device presentation Preassembled with reversing power busbar

Irms rated making capacity 250 A at 440 V for power circuit conforming to IEC 60947
140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1

Pollution degree 3

Maximum operating rate 3600 cyc/h 60 °C

operating time 45...55 ms closing
20...90 ms opening

minimum switching voltage 17 V for signalling circuit

Power pole contact composition 3 NO

non-overlap time 1.5 ms on de-energisation between NC and NO contact
1.5 ms on energisation between NC and NO contact

coil technology Built-in bidirectional peak limiting

Poles description 3P

Utilisation category AC-3
AC-1

Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Signalling circuit frequency 25...400 Hz

Environment

Ambient air temp for storage/transportation -60…80 °C

Climatic withstand conforming to IACS E10
conforming to IEC 60947-1 Annex Q category D

ip degree of protection IP20 front face conforming to IEC 60529

operating altitude 0...3000 m

ambient air temperature for operation -40…60 °C
60…70 °C with derating

overvoltage category III

standards EN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
IEC 60335-1

fire resistance 850 °C conforming to IEC 60695-2-1

protective treatment TH conforming to IEC 60068-2-30

insulation resistance > 10 MOhm for signalling circuit
