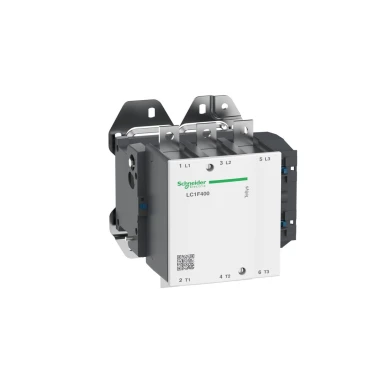

LC1F400FD - TeSys F contactor 3P (3 NO) AC3 <= 440 V 400 A coil 110 V DC - Schneider Electric

Expected in 2-4 weeks

1 839,33 € excl. VAT

2 243,98 € incl. VAT

Text About:

TeSys F contactor 3P (3 NO) AC3 <= 440 V 400 A coil 110 V DC - Schneider Electric

In cart

2 243,98 €

SPECIFICATIONS

Main

Contactor application Motor control
Resistive load

Device short name LC1F

Range TeSys

[uc] control circuit voltage 110 V DC

[ui] rated insulation voltage 1000 V conforming to IEC 60947-4-1
1500 V conforming to VDE 0110 group C

control circuit type DC standard

motor power kW 75 kW at 400 V AC 50/60 Hz (AC-4)
200 kW at 380...400 V AC 50/60 Hz (AC-3)
220 kW at 415 V AC 50/60 Hz (AC-3)
250 kW at 440 V AC 50/60 Hz (AC-3)
257 kW at 500 V AC 50/60 Hz (AC-3)
280 kW at 660...690 V AC 50/60 Hz (AC-3)
185 kW at 1000 V AC 50/60 Hz (AC-3)
110 kW at 220...230 V AC 50/60 Hz (AC-3)

average impedance 0.26 mOhm - Ith 500 A 50 Hz

Complementary

[ie] rated operational current 500 A (at <40 °C) at <= 440 V AC AC-1
400 A (at <55 °C) at <= 440 V AC AC-3

[ue] rated operational voltage <= 1000 V AC 50/60 Hz
<= 460 V DC

compatibility code LC1F

[ics] rated service breaking capacity 3200 A conforming to IEC 60947-4-1

[icw] rated short-time withstand current 3600 A 40 °C - 10 s
2400 A 40 °C - 30 s
1700 A 40 °C - 1 min
1200 A 40 °C - 3 min
1000 A 40 °C - 10 min

[ith] conventional thermal current 500 A (at 40 °C)

Product certifications UL
CSA
CB
ABS
BV
DNV
LROS (Lloyds register of shipping)
RMRoS
RINA
UKCA

Handle front plate colour 206 mm

Product or component type Contactor

tightening torque Control circuit: 1.2 N.m
Power circuit: 35 N.m

[uimp] rated impulse withstand voltage 8 kV

Connections - terminals Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
Power circuit: bar 2 cable(s) - busbar cross section: 30 x 5 mm
Power circuit: lugs-ring terminals 2 cable(s) 150 mm²
Power circuit: bolted connection

Associated fuse rating 400 A aM at <= 440 V
500 A gG at <= 440 V

Control circuit voltage limits Operational: 0.85...1.1 Uc (at 55 °C)
Drop-out: 0.2...0.35 Uc (at 55 °C)

width (w) 213 mm

Heat dissipation 6 W

Net weight 9.1 kg

Hold-in power consumption in w 6 W at 20 °C

Mounting support Plate

power dissipation per pole 65 W AC-1
42 W AC-3

depth 219 mm

inrush power in w 1000 W (at 20 °C)

mechanical durability 10 Mcycles

Maximum operating rate 2400 cyc/h 55 °C

operating time 50...60 ms closing
45...60 ms opening

contactor coil voltage 110 V DC standard

Motor power range 110…220 kW at 480…500 V 3 phases
110…220 kW at 380…440 V 3 phases
110…220 kW at 200…240 V 3 phases
250…500 kW at 480…500 V 3 phases

Power pole contact composition 3 NO

motor starter type Direct on-line contactor

Poles description 3P

Utilisation category AC-3
AC-1
AC-4

Environment

Ambient air temp for storage/transportation -60…80 °C

ip degree of protection IP20 front face with shrouds conforming to IEC 60529
IP20 front face with shrouds conforming to VDE 0106

operating altitude 3000 m without derating

Permissible ambient air temperature around the device -40…70 °C

Range of product TeSys F

ambient air temperature for operation -5…55 °C

overvoltage category III

standards IEC 60947-4-1
JIS C8201-4-1
EN 60947-4-1
EN 60947-1
IEC 60947-1

protective treatment TH
