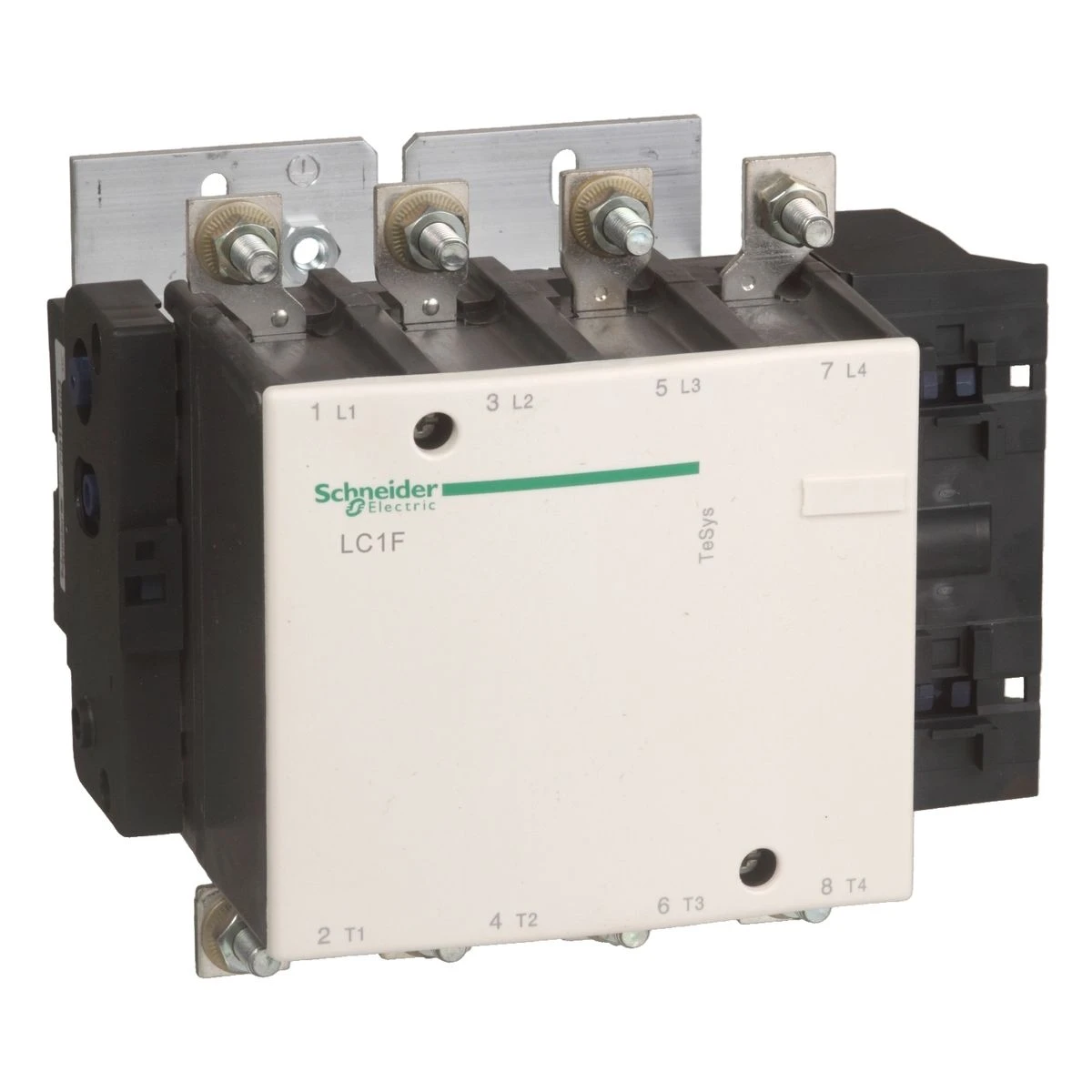

LC1F3304M7 - TeSys F contactor 4P (4 NO) AC1 <= 440 V 400 A coil 220 V AC - Schneider Electric

Expected in 2-4 weeks

1 112,44 € excl. VAT

1 357,18 € incl. VAT

Text About:

TeSys F contactor 4P (4 NO) AC1 <= 440 V 400 A coil 220 V AC - Schneider Electric

In cart

1 357,18 €

SPECIFICATIONS

Main

Contactor application Resistive load

Device short name LC1F

Range TeSys

[uc] control circuit voltage 220 V AC 40...400 Hz

[ui] rated insulation voltage 1000 V conforming to IEC 60947-4-1
1500 V conforming to VDE 0110 group C

control circuit type AC at 40...400 Hz

average impedance 0.28 mOhm - Ith 400 A 50 Hz

Complementary

[ie] rated operational current 400 A (at <40 °C) at <= 440 V AC AC-1

[ue] rated operational voltage <= 1000 V AC 50/60 Hz
<= 460 V DC

compatibility code LC1F

[ics] rated service breaking capacity 2640 A conforming to IEC 60947-4-1

[icw] rated short-time withstand current 2650 A 40 °C - 10 s
1800 A 40 °C - 30 s
1300 A 40 °C - 1 min
900 A 40 °C - 3 min
750 A 40 °C - 10 min

[ith] conventional thermal current 400 A (at 40 °C)

Product certifications LROS (Lloyds register of shipping)
DNV
RINA
BV
RMRoS
ABS
CB
UL
CCC
UKCA

Handle front plate colour 206 mm

Product or component type Contactor

tightening torque Control circuit: 1.2 N.m
Power circuit: 35 N.m

[uimp] rated impulse withstand voltage 8 kV

Connections - terminals Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
Power circuit: lugs-ring terminals 1 cable(s) 240 mm²
Power circuit: bar 2 cable(s) - busbar cross section: 30 x 5 mm
Power circuit: bolted connection

Associated fuse rating 400 A aM at <= 440 V
500 A gG at <= 440 V

Control circuit voltage limits Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C)
Drop-out: 0.35...0.55 Uc 40...400 Hz (at 55 °C)

width (w) 261 mm

Heat dissipation 8 W

Net weight 9.5 kg

Hold-in power consumption in va 10 VA, 40...400 Hz cos phi 0.9 (at 20 °C)

Mounting support Plate

power dissipation per pole 44 W AC-1

depth 219 mm

Inrush power in va 650 VA, 40...400 Hz cos phi 0.9 (at 20 °C)

mechanical durability 10 Mcycles

Maximum operating rate 2400 cyc/h 55 °C

operating time 40...65 ms closing
100...170 ms opening

Power pole contact composition 4 NO

Poles description 4P

Utilisation category AC-1

Environment

Ambient air temp for storage/transportation -60…80 °C

ip degree of protection IP20 front face with shrouds conforming to IEC 60529
IP20 front face with shrouds conforming to VDE 0106

operating altitude 3000 m without derating

Permissible ambient air temperature around the device -40…70 °C

Range of product TeSys F

ambient air temperature for operation -5…55 °C

overvoltage category III

standards JIS C8201-4-1
EN 60947-4-1
EN 60947-1
IEC 60947-4-1
IEC 60947-1

protective treatment TH
