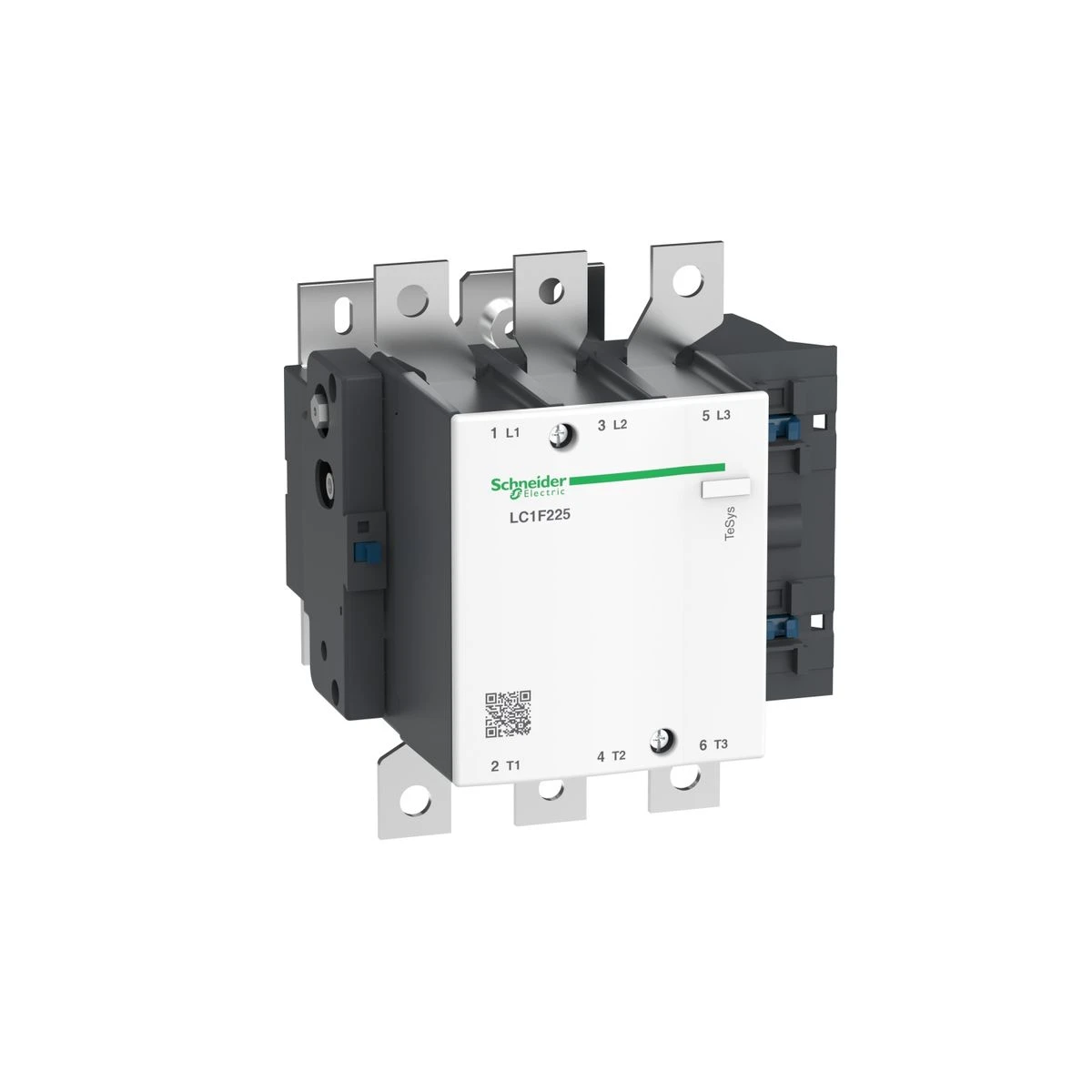

LC1F225F7 - TeSys F contactor 3P (3 NO) AC3 <= 440 V 225 A coil 110 V AC - Schneider Electric

Expected in 2-4 weeks

762,31 € excl. VAT

930,02 € incl. VAT

Text About:

TeSys F contactor 3P (3 NO) AC3 <= 440 V 225 A coil 110 V AC - Schneider Electric

In cart

930,02 €

SPECIFICATIONS

Main

Contactor application Motor control
Resistive load

Device short name LC1F

Range TeSys

[uc] control circuit voltage 110 V AC 40...400 Hz

[ui] rated insulation voltage 1000 V conforming to IEC 60947-4-1
1500 V conforming to VDE 0110 group C

control circuit type AC at 40...400 Hz

motor power kW 110 kW at 380...400 V AC 50/60 Hz (AC-3)
110 kW at 415 V AC 50/60 Hz (AC-3)
110 kW at 440 V AC 50/60 Hz (AC-3)
129 kW at 500 V AC 50/60 Hz (AC-3)
129 kW at 660...690 V AC 50/60 Hz (AC-3)
63 kW at 220...230 V AC 50/60 Hz (AC-3)
40 kW at 400 V AC 50/60 Hz (AC-4)

average impedance 0.32 mOhm - Ith 315 A 50 Hz

Complementary

[ie] rated operational current 315 A (at <40 °C) at <= 440 V AC-1
225 A (at <55 °C) at <= 440 V AC-3

[ue] rated operational voltage <= 460 V DC
<= 690 V AC 50/60 Hz

compatibility code LC1F

[ics] rated service breaking capacity 1800 A conforming to IEC 60947-4-1

[icw] rated short-time withstand current 1800 A 40 °C - 10 s
1000 A 40 °C - 30 s
850 A 40 °C - 1 min
560 A 40 °C - 3 min
440 A 40 °C - 10 min

[ith] conventional thermal current 315 A (at 40 °C)

Product certifications CB
RINA
ABS
CSA
RMRoS
LROS (Lloyds register of shipping)
UL
BV
DNV
UKCA

Handle front plate colour 197 mm

Product or component type Contactor

tightening torque Control circuit: 1.2 N.m
Power circuit: 35 N.m

[uimp] rated impulse withstand voltage 8 kV

Connections - terminals Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
Power circuit: bar 2 cable(s) - busbar cross section: 32 x 4 mm
Power circuit: lugs-ring terminals 1 cable(s) 185 mm²
Power circuit: connector 1 cable(s) 185 mm²
Power circuit: bolted connection

Associated fuse rating 315 A gG at <= 440 V
250 A aM at <= 440 V

Control circuit voltage limits Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C)
Drop-out: 0.2...0.55 Uc 40...400 Hz (at 55 °C)

width (w) 168.5 mm

Heat dissipation 8…9.8 W

Net weight 4.75 kg

Hold-in power consumption in va 9.9 VA, 40...400 Hz cos phi 0.9 (at 20 °C)

Mounting support Plate

power dissipation per pole 32 W AC-1
16 W AC-3

depth 181 mm

Inrush power in va 1070 VA, 40...400 Hz cos phi 0.9 (at 20 °C)

mechanical durability 10 Mcycles

Maximum operating rate 2400 cyc/h 55 °C

operating time 35 ms closing (at Uc)
130 ms opening (at Uc)

contactor coil voltage 110 V AC standard

Motor power range 55…100 kW at 200…240 V 3 phases
110…220 kW at 480…500 V 3 phases
110…220 kW at 380…440 V 3 phases

Power pole contact composition 3 NO

motor starter type Direct on-line contactor

Poles description 3P

Utilisation category AC-3
AC-4
AC-1

Environment

Ambient air temp for storage/transportation -60…80 °C

ip degree of protection IP20 front face with shrouds conforming to IEC 60529
IP20 front face with shrouds conforming to VDE 0106

operating altitude 3000 m without derating

Permissible ambient air temperature around the device -40…70 °C

Range of product TeSys F

ambient air temperature for operation -5…55 °C

overvoltage category III

standards IEC 60947-1
IEC 60947-4-1
EN 60947-1
JIS C8201-4-1
EN 60947-4-1

protective treatment TH
