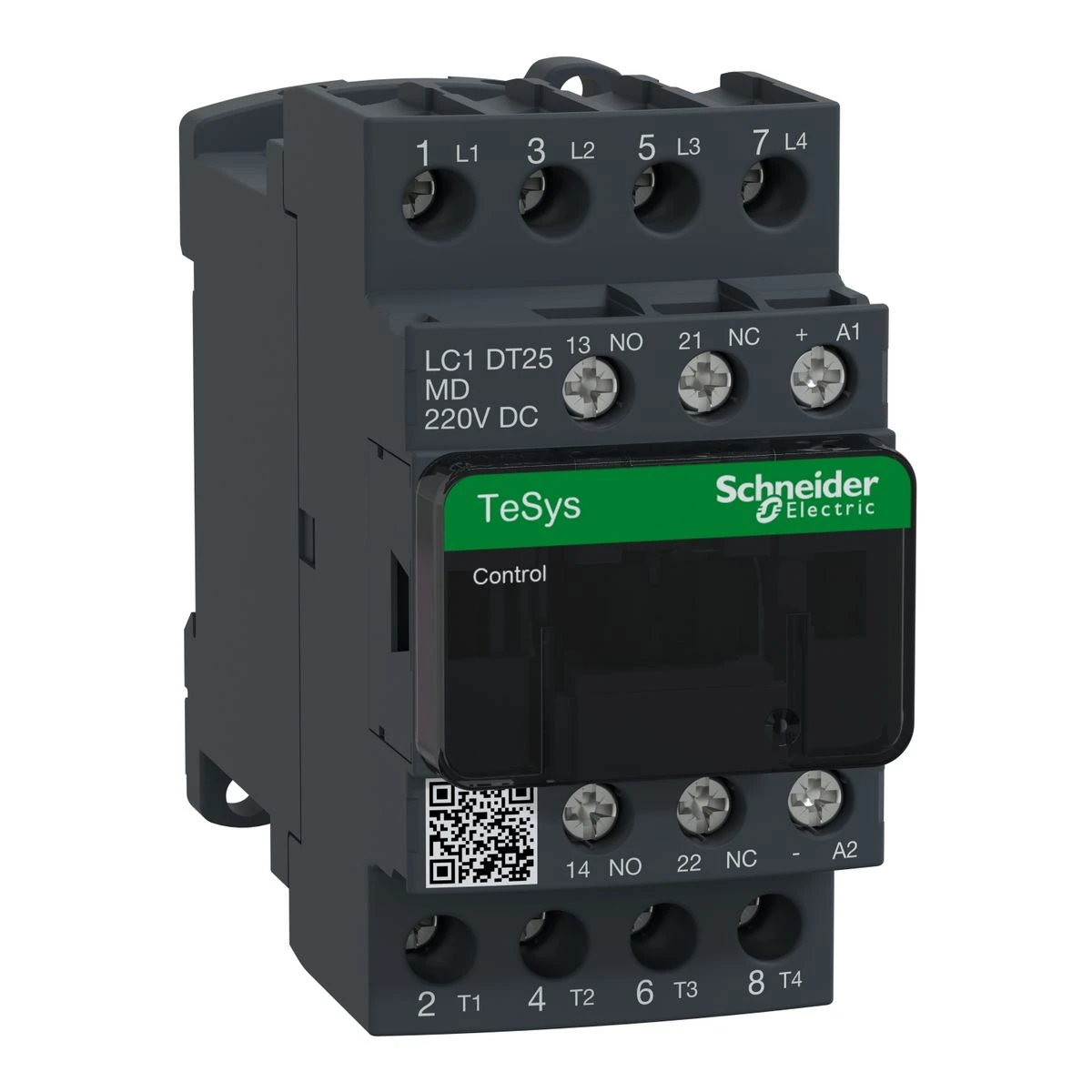

LC1DT25MD - Contactor, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 25A, 220VDC standard coil - Schneider Electric

Pending restock EAN: 3389110368765
LC1DT25MD - Contactor, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 25A, 220VDC standard coil - Schneider Electric - Contactor, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 25A, 220VDC standard coil - Schneider Electric - 0
EAN: 3389110368765
LC1DT25MD - Contactor, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 25A, 220VDC standard coil - Schneider Electric
104,97 € excl. VAT
130,16 € incl. VAT
Text About:
Contactor, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 25A, 220VDC standard coil - Schneider Electric
130,16 €
SPECIFICATIONS
Main
product range TeSys D
TeSys Deca
Range TeSys
TeSys Deca
[uc] control circuit voltage 220 V CC
job category AC-1
name of the device LC1D
switch application Charge résistive (AC-1)
type of product or equipment Contacteur
[ui] rated insulation voltage Circuit de puissance: 600 V CSA certifié
Circuit de puissance: 600 V UL certifié
Circuit de signalisation: 690 V se conformer à CEI 60947-1
Circuit de signalisation: 600 V CSA certifié
Circuit de signalisation: 600 V UL certifié
Circuit de puissance: 690 V se conformer à CEI 60947-4-1
control circuit type CC standard
composition of the power pole contacts 4F
average impedance 2,5 mOhm - Ith 25 A 50 Hz pour circuit de puissance
Complementary
[ie] rated operational current 25 A (à <60 °C) à <= 440 V CA AC-1 pour circuit de puissance
[ue] rated operational voltage Circuit de puissance: <= 690 V CA 25...400 Hz
Circuit de puissance: <= 300 V CC
compatibility code LC1D
[ics] rated service breaking capacity 250 A à 440 V pour circuit de puissance se conformer à CEI 60947
[icw] rated short-time withstand current 30 A à <40 °C - 10 min pour circuit de puissance
61 A à <40 °C - 1 min pour circuit de puissance
105 A à <40 °C - 10 s pour circuit de puissance
210 A à <40 °C - 1s pour circuit de puissance
100 A - 1s pour circuit de signalisation
120 A - 500 ms pour circuit de signalisation
140 A - 100 ms pour circuit de signalisation
[ith] conventional thermal current 10 A à <60 °C) pour circuit de signalisation
25 A à <60 °C) pour circuit de puissance
caliber of the fuse to be associated 10 A gG pour circuit de signalisation se conformer à CEI 60947-5-1
40 A gG à <= 690 V coordination type 1 pour circuit de puissance
25 A gG à <= 690 V coordination type 2 pour circuit de puissance
average consumption on hold in w 5,4 W à 20 °C
Handle front plate colour 85 mm
tightening torque Télécommande :1,7 N.m - sur borniers à vis-étrier - avec tournevis plat Ø 6 mm
Télécommande :1,7 N.m - sur borniers à vis-étrier - avec tournevis cruciforme Philips n° 2
Circuit de puissance :1,7 N.m - sur borniers à vis-étrier - avec tournevis plat Ø 6 mm
Circuit de puissance :1,7 N.m - sur borniers à vis-étrier - avec tournevis cruciforme Philips n° 2
Télécommande :1,7 N.m - sur borniers à vis-étrier - avec tournevis pozidriv n°2
Circuit de puissance :1,7 N.m - sur borniers à vis-étrier - avec tournevis pozidriv n°2
[uimp] rated impulse withstand voltage 6 kV se conformer à CEI 60947
auxiliary contacts 1 "O" + 1 "F"
minimum switching current 5 mA pour circuit de signalisation
product weight 0,365 kg
type of auxiliary contacts type liés mécaniquement 1 "O" + 1 "F" se conformer à CEI 60947-5-1
type contact miroir 1 "O" se conformer à CEI 60947-4-1
contact compatibility M7
electrical life 0,8 Mcycles 25 A AC-1 à Ue <= 440 V
connection mode Télécommande: borniers à vis-étrier 2 1…2,5 mm² - rigidité du câble: souple avec embout
Télécommande: borniers à vis-étrier 1 1…4 mm² - rigidité du câble: souple sans embout
Télécommande: borniers à vis-étrier 2 1…4 mm² - rigidité du câble: souple sans embout
Télécommande: borniers à vis-étrier 1 1…4 mm² - rigidité du câble: souple avec embout
Télécommande: borniers à vis-étrier 1 1…4 mm² - rigidité du câble: rigide sans embout
Télécommande: borniers à vis-étrier 2 1…4 mm² - rigidité du câble: rigide sans embout
Circuit de puissance: borniers à vis-étrier 1 1…4 mm² - rigidité du câble: souple sans embout
Circuit de puissance: borniers à vis-étrier 2 1…4 mm² - rigidité du câble: souple sans embout
Circuit de puissance: borniers à vis-étrier 1 1…4 mm² - rigidité du câble: souple avec embout
Circuit de puissance: borniers à vis-étrier 2 1…2,5 mm² - rigidité du câble: souple avec embout
Circuit de puissance: borniers à vis-étrier 1 1…4 mm² - rigidité du câble: rigide sans embout
Circuit de puissance: borniers à vis-étrier 2 1…4 mm² - rigidité du câble: rigide sans embout
control circuit voltage range 0,1 à 0,25 Uc -40…70 °C perte de niveau CC
0,7 à 1,25 Uc -40…60 °C opérationnel CC
1...1,25 Uc 60…70 °C opérationnel CC
mechanical endurance 30 Mcycles
width (w) 45 mm
mechanical robustness Vibrations contacteur ouvert (2 Gn, 5 à 300 Hz)
Vibrations contacteur fermé (4 Gn, 5 à 300 Hz)
Chocs contacteur fermé (15 Gn pour 11 ms)
Chocs contacteur ouvert (10 Gn pour 11 ms)
Flame retardance V1 se conformer à UL 94
time constant 28 ms
rated rms inrush power 140 A CA pour circuit de signalisation se conformer à CEI 60947-5-1
250 A CC pour circuit de signalisation se conformer à CEI 60947-5-1
250 A à 440 V pour circuit de puissance se conformer à CEI 60947
depth 99 mm
mounting bracket Platine
Rail
frequency Avec
maximum inrush power in w 5,4 W (à 20 °C)
signaling circuit frequency 25 à 400 Hz
operating time 16…24 ms ouverture
53,55…72,45 ms fermeture
power loss per pole 1,56 W AC-1
security reliability level B10d = 1369863 cycle contacteur avec charge nominale se conformer à EN/ISO 13849-1
B10d = 20000000 cycle contacteur avec charge mécanique se conformer à EN/ISO 13849-1
max command speed 3600 cyc/h à <60 °C
minimum switching voltage 17 V pour circuit de signalisation
non-overlap time 1,5 ms sur désexcitation entre contact NC et NO
1,5 ms sur excitation entre contact NC et NO
coil technology Suppresseur à diode de limite de crête bidirectionnel incorporé
Poles description 4P
Environment
degree of pollution 3
ip degree of protection IP20 face avant se conformer à CEI 60529
operating altitude 0...3000 m
product certificates CCC
UL
GL
DNV
BV
CSA
GOST
RINA
LROS (Lloyds register of shipping)
ambient air temperature for operation -40…60 °C
60…70 °C avec réduction de courant
overvoltage category III
standards CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
CEI 60947-4-1
CEI 60947-5-1
UL 508
CEI 60335-1
fire resistance 850 °C se conformer à CEI 60695-2-1
climatic resistance se conformer à IACS E10 exposition à la chaleur humide
se conformer à IEC 60947-1 Annex Q category D exposition à la chaleur humide
protective treatment TH se conformer à CEI 60068-2-30
insulation resistance > 10 MΩ pour circuit de signalisation
About this product

The LC1DT25MD - Contactor, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 25A, 220VDC standard coil is produced to meet the needs of industry experts, such as switchboard fabricators, wiremen, facility upkeep providers, and OEMs. LC1DT25MD furnishes excellent reliability and merit for engineers in the electromechanical industry. This Contactor, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 25A, 220VDC standard coil and other TeSyS Deca Contactors from Schneider Electric can be obtained at the unbeatable price and lead time through BaltElec website, a credible dealer fulfilling the needs of practitioners in their collection needs.

Patrons who have secured Schneider Electric TeSyS Deca Contactors have commonly complimented the creator's sturdiness. It has been specified that the extraordinary workmanship of LC1DT25MD - Contactor, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 25A, 220VDC standard coil extends to a array of implementations. Its top-notch attributes make it suitable for wide-ranging specifications, securing success in your industrial, tertiary, and automation endeavors.

BaltElec commits in addressing industrial and tertiary professionals’ needs. We comprehend the individual expectations and anticipations of our partners in the sector. By joining forces with BaltElec, our customers acquire access to the leading rates and stock of the top-of-the-line products like LC1DT25MD - Contactor, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 25A, 220VDC standard coil from Schneider Electric at cost-effective price. Registered users enjoy special savings and expedited requests handling.

Start immediately and grab LC1DT25MD - Contactor, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 25A, 220VDC standard coil at our secure and intuitive online portal. Don't delay in making this clever decision that assures the paramount quality and covers the personalized standards of traders like your enterprise.

Should you experience any queries or concerns about LC1DT25MD - Contactor, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 25A, 220VDC standard coil or any other Schneider Electric products, contact us or refer to our Information center section below. We have curated answers to regular questions to guide you further in making an enlightened decision about industrial and tertiary electrical components.

Remember, LC1DT25MD - Contactor, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 25A, 220VDC standard coil from Schneider Electric is safe, cost-effective, and excellent to market challengers in the TeSyS Deca Contactors category. Don't hesitate to make it a part of your network at once. Purchase at BALTELEC, your esteemed seller for all your professional electrical equipment and automation needs.

In our Baltelec.eu electronic store you will uncover Contactor, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 25A, 220VDC standard coil - LC1DT25MD worth 128.06 €, which will be a constant and new solution for your desires. This product is created by the Schneider Electric brand using the state-of-the-art technologies and adheres to the leading standards of precaution and efficacy. We propose articles from the TeSyS Deca Contactors category that integrate robustness and workability, which is an exceptional selection for various purposes. Not minding of whether you want apparatus for small output or for adept industrial application, Contactor, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 25A, 220VDC standard coil will be a safe associate in your project.

Baltelec ventures to make the getting process as accessible and fast as achievable for our customers. We offer detailed summaries and high-quality pictures of Contactor, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 25A, 220VDC standard coil so that you can make an educated choice. A team of pros is always ready to help you with any questions in the TeSyS Deca Contactors section referencing to the determining and use of wares. We are assured that Contactor, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 25A, 220VDC standard coil will meet your criteria and become an vital element of your tools for just 128.06 €.
