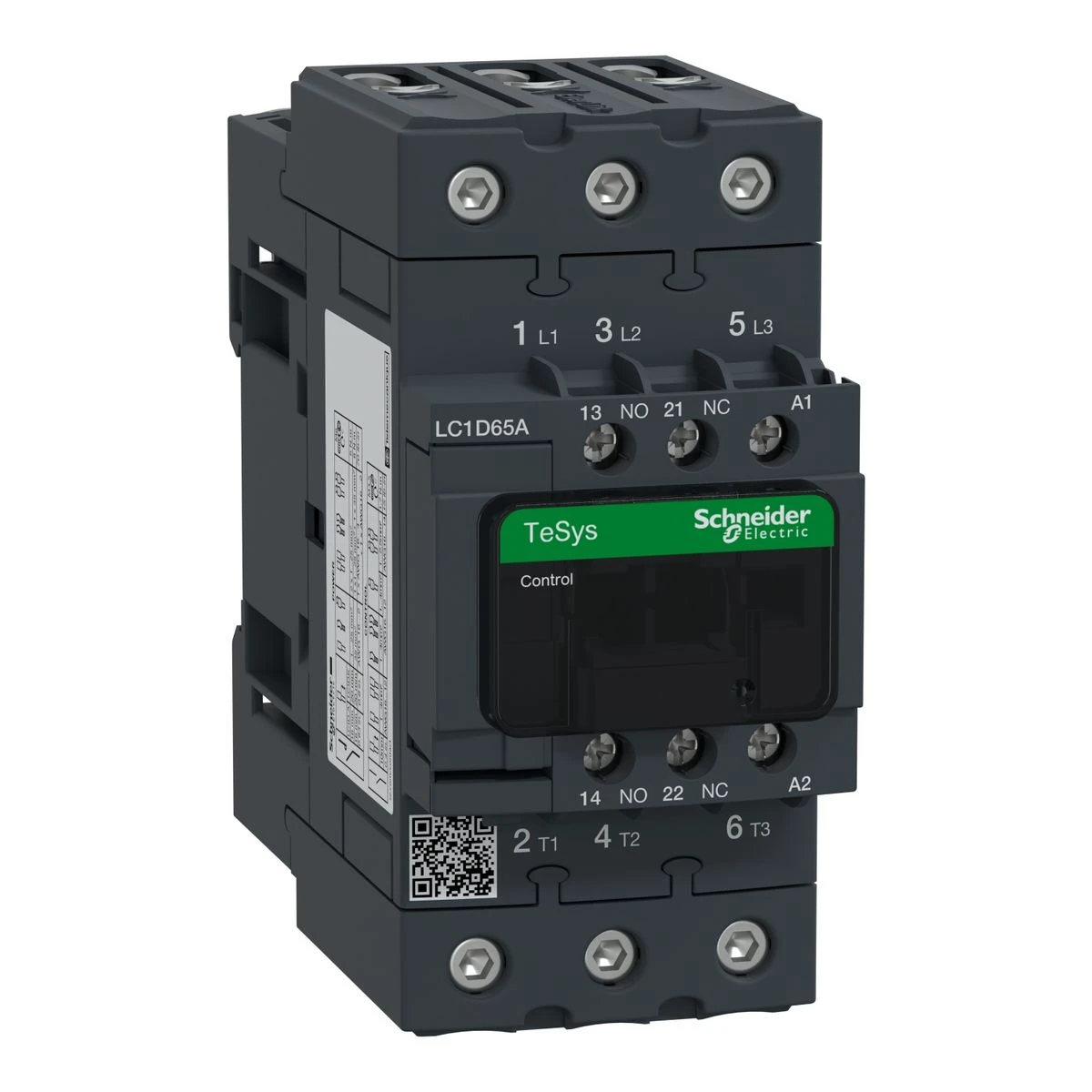

LC1D65AR7 - TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 65 A 440 V AC 50/60 Hz coil - Schneider Electric
Resistive load
TeSys Deca
Power circuit: 600 V UL certified
Signalling circuit: 690 V conforming to IEC 60947-1
Signalling circuit: 600 V CSA certified
Signalling circuit: 600 V UL certified
Power circuit: 690 V conforming to IEC 60947-4-1
18.5 kW at 220...230 V AC 50/60 Hz (AC-3)
30 kW at 380...400 V AC 50/60 Hz (AC-3)
37 kW at 500 V AC 50/60 Hz (AC-3)
37 kW at 660...690 V AC 50/60 Hz (AC-3)
18.5 kW at 220...230 V AC 50/60 Hz (AC-3e)
30 kW at 380...400 V AC 50/60 Hz (AC-3e)
37 kW at 500 V AC 50/60 Hz (AC-3e)
37 kW at 660...690 V AC 50/60 Hz (AC-3e)
65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
65 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Power circuit: <= 300 V DC
900 A 40 °C - 1 s for power circuit
110 A 40 °C - 10 min for power circuit
260 A 40 °C - 1 min for power circuit
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit
80 A (at 60 °C) for power circuit
CCC
CSA
GOST
Control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver Philips No 2
Power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25…35 mm² hexagonal screw head 4 mm
Power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1…25 mm² hexagonal screw head 4 mm
Control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver pozidriv No 2
Power circuit: 2.5 N.m - on EverLink BTR screw connectors - with screwdriver pozidriv No 2
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Power circuit: screw connection 1 1…35 mm² - cable stiffness: flexible without cable end
Power circuit: screw connection 2 1…25 mm² - cable stiffness: flexible without cable end
Power circuit: screw connection 1 1…35 mm² - cable stiffness: flexible with cable end
Power circuit: screw connection 2 1…25 mm² - cable stiffness: flexible with cable end
Power circuit: screw connection 1 1…35 mm² - cable stiffness: solid without cable end
Power circuit: screw connection 2 1…25 mm² - cable stiffness: solid without cable end
125 A gG at <= 690 V coordination type 1 for power circuit
125 A gG at <= 690 V coordination type 2 for power circuit
type mirror contact 1 NC conforming to IEC 60947-4-1
0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz
0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz
1...1.1 Uc (60…70 °C):operational AC 50/60 Hz
Vibrations contactor closed (4 Gn, 5...300 Hz)
Shocks contactor closed (15 Gn for 11 ms)
Shocks contactor open (10 Gn for 11 ms)
15 VA 50 Hz cos phi 0.3 (at 20 °C)
5 hp at 115 V AC 50/60 Hz for 1 phase motors
10 hp at 230/240 V AC 50/60 Hz for 1 phase motors
20 hp at 200/208 V AC 50/60 Hz for 3 phases motors
20 hp at 230/240 V AC 50/60 Hz for 3 phases motors
50 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Rail
6.3 W AC-3
6.3 W AC-3e
160 VA 50 Hz cos phi 0.75 (at 20 °C)
1.45 Mcycles 65 A AC-3 at Ue <= 440 V
1.45 Mcycles 65 A AC-3e at Ue <= 440 V
250 A DC for signalling circuit conforming to IEC 60947-5-1
1000 A at 440 V for power circuit conforming to IEC 60947
12...26 ms closing
1.5 ms on energisation between NC and NO contact
AC-1
AC-3
AC-3e
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
60…70 °C with derating
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
IEC 60335-1
The LC1D65AR7 - TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 65 A 440 V AC 50/60 Hz coil is crafted to fulfill the wants of specialized professionals, such as electrical contractors, electrical installers, service organizations, and primary equipment makers. LC1D65AR7 dispenses remarkable efficiency and worth for designers in the electrical and automation industry. This TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 65 A 440 V AC 50/60 Hz coil and other TeSyS Deca Contactors from Schneider Electric can be acquired at the most advantageous pricing and turnaround time through BALTELEC, a dependable distributor aiding industry experts in their gathering needs.
Consumers who have secured Schneider Electric TeSyS Deca Contactors have frequently approved the maker's reliability. It has been outlined that the outstanding workmanship of LC1D65AR7 - TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 65 A 440 V AC 50/60 Hz coil extends to a spectrum of tasks. Its first-rate attributes make it optimal to suit a variety of needs, ensuring your industrial, tertiary and automation projects success.
Our professionals dedicates in catering industrial and tertiary professionals’ needs. We appreciate the distinct specifications and anticipations of our clients in the market. By teaming up with Baltelec.eu, your team acquire access to the superior price lists and inventory of superior products like LC1D65AR7 - TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 65 A 440 V AC 50/60 Hz coil from Schneider Electric at an affordable price. Our registered accounts appreciate more savings and expedited requests handling.
Take action and buy LC1D65AR7 - TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 65 A 440 V AC 50/60 Hz coil at our certified and streamlined internet shop. Don't delay in making this savvy action that validates the ultimate quality and meets the defined criteria of customers like yourselves.
Should you have any issues or concerns about LC1D65AR7 - TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 65 A 440 V AC 50/60 Hz coil or any other Schneider Electric products, message us or refer to our Information center section below. We have gathered answers to frequent queries to aid you further in making an smart decision about industrial and tertiary electrical components.
Remember, LC1D65AR7 - TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 65 A 440 V AC 50/60 Hz coil from Schneider Electric is secure, low-cost, and exceptional to other vendors in the TeSyS Deca Contactors category. Don't hesitate to make it a part of your arrangement today. Get at baltele.eu, your preferred supplier for all your TeSyS Deca Contactors.
In our Baltelec.eu cyber store you will spot TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 65 A 440 V AC 50/60 Hz coil - LC1D65AR7 worth 191.12 €, which will be a reliable and modern solution for your demands. This goods is produced by the Schneider Electric brand using the current technologies and adheres to the uppermost standards of precaution and productivity. We furnish things from the TeSyS Deca Contactors category that mix resilience and efficacy, which is an premium alternative for various purposes. Notwithstanding of whether you need appliances for small output or for experienced industrial application, TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 65 A 440 V AC 50/60 Hz coil will be a faithful facilitator in your assignment.
Baltelec efforts to make the obtaining process as manageable and fast as viable for our shoppers. We offer detailed explanations and high-quality portrayals of TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 65 A 440 V AC 50/60 Hz coil so that you can make an educated choice. A team of virtuosos is always ready to help you with any enquiries in the TeSyS Deca Contactors section involved to the choice and use of materials. We are convinced that TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 65 A 440 V AC 50/60 Hz coil will meet your anticipations and become an imperative element of your kit for just 191.12 €.
Common Questions about Schneider Electric LC1D65AR7:
-
What are the advantages of buying LC1D65AR7 - TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 65 A 440 V AC 50/60 Hz coil from BaltElec?
When your purchase Schneider Electric TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 65 A 440 V AC 50/60 Hz coil from Baltelec, you will receive genuine high-quality Schneider Electric TeSyS Deca Contactors products at the most competitive prices and lead time. Additionally, our partnersenjoy additional savings and priority service.
-
Can Baltelec consult if Schneider Electric LC1D65AR7 meets the specification of my needs?
To ensure that Schneider Electric LC1D65AR7 is appropriate for your application, we offer detailed information regarding product's technical specifications, technical characteristics, and applicable standards. You can access this information on the dedicated page of the item model. If you need more guidance, our support team team stands ready to help you in reaching an educated decision.
-
What guarantee coverage is provided for LC1D65AR7?
Baltelec.eu team stands for the excellence of the products we offer. The standard guarantee coverage for Schneider Electric TeSyS Deca Contactors including Schneider Electric TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 65 A 440 V AC 50/60 Hz coil is 1 year. Nevertheless, it varies based on the individual product, category, and may even be extended. You can discover specific guarantee details on the LC1D65AR7 - TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 65 A 440 V AC 50/60 Hz coil dedicated page or by reaching out to our support team team.
-
Can you arrange international shipping for LC1D65AR7 - TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 65 A 440 V AC 50/60 Hz coil including other Schneider Electric items?
Absolutely. Apart from serving Estonia, Latvia, Lithuania and other European Union countries, we offer international shipping for Schneider Electric LC1D65AR7. Please note that shipping options, fees, and delivery times may vary based on the destination. For complex requests, please consult BALTELEC sales representatives.
-
Do Schneider Electric MBC provided by BaltElec comply with global norms for security and quality?
Yes. All Schneider Electric products offered at Baltelec.eu online store meet global norms such as IEC 60898-1 and carry the CE certification. Such norms assure that the items meet strict security, technical, reliability, and performance criteria.
-
Can BALTELEC offer guidance on integrating renewable energy solutions, such as solar power systems or wind energy converters, into my projects?
Absolutely! BaltElec recognizes the significance of renewable energy incorporation within community. Our team of experts can help you in picking the suitable Schneider Electric products, to incorporate them into your renewable energy solutions}. We can offer advice on integrating solar energy systems, wind power converters, and other eco-friendly options to optimize energy generation and efficiency.
-
Do you have eco-friendly options offered within the TeSyS Deca Contactors category to promote environmental sustainability?
Certainly! Baltelec website offers a wide range of energy-efficient solutions within the TeSyS Deca Contactors category that align with environmental sustainability objectives. Our top-quality Schneider Electric products, including the LC1D65AR7, are engineered with energy efficiency in mind. By using these products into your electrical system, you can enhance energy usage and lower environmental impact. Additionally, we present affordable pricing for our green Schneider Electric products,, making them an cost-effective choice for promoting sustainability.
-
Are TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 65 A 440 V AC 50/60 Hz coil offered by BaltElec authentic?
Yes, we solely provide genuine Schneider Electric products, including but not limited to TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 65 A 440 V AC 50/60 Hz coil. We source our products solely through authorized distribution channels to assure their genuineness and superior standards.
