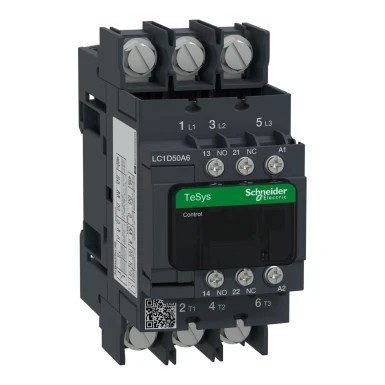

LC1D50A6F7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals - Schneider Electric
Motor control
TeSys Deca
Power circuit: 600 V UL certified
Signalling circuit: 690 V conforming to IEC 60947-1
Signalling circuit: 600 V CSA certified
Signalling circuit: 600 V UL certified
Power circuit: 690 V conforming to IEC 60947-4-1
22 kW at 380...400 V AC 50/60 Hz (AC-3)
30 kW at 500 V AC 50/60 Hz (AC-3)
33 kW at 660...690 V AC 50/60 Hz (AC-3)
25 kW at 415 V AC 50/60 Hz (AC-3)
30 kW at 440 V AC 50/60 Hz (AC-3)
11 kW at 400 V AC 50/60 Hz (AC-4)
15 kW at 220...230 V AC 50/60 Hz (AC-3e)
22 kW at 380...400 V AC 50/60 Hz (AC-3e)
30 kW at 500 V AC 50/60 Hz (AC-3e)
33 kW at 660...690 V AC 50/60 Hz (AC-3e)
25 kW at 415 V AC 50/60 Hz (AC-3e)
30 kW at 440 V AC 50/60 Hz (AC-3e)
80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
50 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Power circuit: <= 300 V DC
810 A 40 °C - 1 s for power circuit
84 A 40 °C - 10 min for power circuit
208 A 40 °C - 1 min for power circuit
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit
80 A (at 60 °C) for power circuit
DNV
RINA
CSA
CCC
UL
LROS (Lloyds register of shipping)
BV
GL
Control circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5
Power circuit: 6 N.m - on lugs-ring terminals hexagonal screw head 10 mm M6
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Power circuit: lugs-ring terminals - external diameter: 16.5 mm
100 A gG at <= 690 V coordination type 1 for power circuit
100 A gG at <= 690 V coordination type 2 for power circuit
type mirror contact 1 NC conforming to IEC 60947-4-1
0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz
0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz
1...1.1 Uc (60…70 °C):operational AC 50/60 Hz
Vibrations contactor closed (4 Gn, 5...300 Hz)
Shocks contactor closed (15 Gn for 11 ms)
Shocks contactor open (10 Gn for 11 ms)
15 VA 50 Hz cos phi 0.3 (at 20 °C)
7.5 hp at 230/240 V AC 50/60 Hz for 1 phase motors
15 hp at 200/208 V AC 50/60 Hz for 3 phases motors
15 hp at 230/240 V AC 50/60 Hz for 3 phases motors
40 hp at 460/480 V AC 50/60 Hz for 3 phases motors
40 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Plate
9.6 W AC-1
3.7 W AC-3e
160 VA 50 Hz cos phi 0.75 (at 20 °C)
1.1 Mcycles 80 A AC-1 at Ue <= 440 V
1.45 Mcycles 50 A AC-3e at Ue <= 440 V
250 A DC for signalling circuit conforming to IEC 60947-5-1
900 A at 440 V for power circuit conforming to IEC 60947
12...26 ms closing
1.5 ms on energisation between NC and NO contact
AC-1
AC-3
AC-3e
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
60…70 °C with derating
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
IEC 60335-1
The LC1D50A6F7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals is devised to address the necessities of sector experts, such as electrical contractors, electricians, upkeep firms, and original producers. LC1D50A6F7 affords unmatched durability and merit for professionals in the electromechanical industry. This Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals and other TeSyS Deca Contactors from Schneider Electric are in stock the best price and lead time through BaltElec online store, a well-known dealer meeting the needs of industry experts in their obtaining needs.
Patrons who have adopted Schneider Electric TeSyS Deca Contactors have consistently admired the manufacturer’s dependability. It has been indicated that the exceptional capability of LC1D50A6F7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals extends to a spectrum of deployments. Its premium components make it ideal solution to meet diverse demands, ensuring your industrial, tertiary and automation projects success.
BaltElec focuses in catering industrial and tertiary professionals’ needs. We appreciate the specific standards and expectations of our clients in the market. By joining forces with our professionals, you receive access to the top price lists and supply timeline of excellent products like LC1D50A6F7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals from Schneider Electric at a budget-friendly price. Professional buyers with Baltelec account get special savings and preferred assistance.
Seize the moment and order LC1D50A6F7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals at our reliable and convenient webshop. Don't delay in making this savvy resolution that secures the supreme quality and covers the customized prerequisites of traders like your group.
In case you have any problems or concerns about LC1D50A6F7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals or any other Schneider Electric products, email us or refer to our Frequently Asked Questions section below. We have provided answers to usual matters to guide you further in making an smart decision about industrial and tertiary electrical components.
Remember, LC1D50A6F7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals from Schneider Electric is reliable, inexpensive, and exceptional to other producers in the TeSyS Deca Contactors category. Make it a part of your electrical system today. Take advantage of at Baltelec webstore, your steady distributor for all your professional electrical equipment and automation needs.
In our Baltelec.eu electronic store you will come across Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals - LC1D50A6F7 worth 155.43 €, which will be a safe and innovative solution for your wants. This produce is designed by the Schneider Electric brand using the most recent technologies and satisfies the premier standards of well-being and capability. We supply goods from the TeSyS Deca Contactors category that integrate robustness and effectiveness, which is an superb possibility for various intents. Independent of whether you demand apparatus for small generation or for adept industrial implementation, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals will be a faithful assistant in your duty.
Baltelec labors to make the shopping process as manageable and fast as practicable for our clients. We offer detailed summaries and high-quality photographs of Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals so that you can make an briefed choice. A team of connoisseurs is always ready to help you with any wonder in the TeSyS Deca Contactors section connected to the determining and use of articles. We are sure that Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals will meet your standards and become an vital element of your device for just 155.43 €.
What People Ask about LC1D50A6F7:
-
Why should I buy LC1D50A6F7 from BALTELEC?
When your purchase LC1D50A6F7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals from baltelec.eu, you will receive authentic high-quality Schneider Electric TeSyS Deca Contactors products at the most favorable cost and delivery period. Furthermore, registered professionalsreceive additional savings and expedited requests handling.
-
How I make sure whether LC1D50A6F7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals meets the specification of my undertaking?
To make sure that LC1D50A6F7 matches your technical requirements, we offer detailed details concerning product's specs, technical characteristics, and interoperability. You can find this data on the product page of the product model. If you require further assistance, our support team representative is prepared to assist you in making an well-informed decision.
-
Which warranty coverage is provided for LC1D50A6F7?
BaltElec emphasizes the excellence of the products we deliver. The standard warranty coverage for Schneider Electric TeSyS Deca Contactors including LC1D50A6F7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals is 1 year. Nevertheless, it varies depending on the individual item, category, and may even be longer. You can find specific warranty information on the Schneider Electric LC1D50A6F7 dedicated page or by contacting our customer support representatives.
-
Do you arrange worldwide shipping for Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals and other Schneider Electric items?
Certainly. Besides catering to Estonia, Latvia, Lithuania and other European Union countries, we provide international shipping for Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals. However that shipping options, fees, and delivery schedule might vary based on the shipping location. For bulk acquisitions, kindly contact Baltelec.eu sales team.
-
Do Schneider Electric MBC offered by BALTELEC meet international norms for safety and quality?
Of course. All Schneider Electric products offered at Baltelec online store conform to global norms such as IEC 60898-1 and carry the CE mark. Such standards assure that the products meet rigorous safety, technological, reliability, and functional requirements.
-
Can BaltElec provide assistance on integrating renewable energy solutions, such as solar energy systems or wind power converters, into my projects?
Certainly! BaltElec recognizes the importance of clean energy integration within projects. Our group of professionals can assist you in picking the right Schneider Electric items, to integrate them into your renewable energy projects}. We can offer recommendations on integrating solar energy systems, wind energy converters, and additional eco-friendly options to maximize power generation and efficiency.
-
Are there eco-friendly options available within the TeSyS Deca Contactors category to support energy conservation efforts?
Definitely!Yes! Baltelec website offers numerous energy-efficient solutions in the category of TeSyS Deca Contactors that are aligned with energy-saving goals. Our top-quality Schneider Electric products, such as the Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals, are engineered with energy efficiency in mind. By incorporating these products into your electrical system, you can optimize energy usage and reduce environmental impact. Additionally, we present attractive pricing for our green Schneider Electric products,, making them an budget-friendly choice for supporting sustainability.
-
Is Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals available by BaltElec e-shop original?
Absolutely, we only sell authentic Schneider Electric products, including Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 110VAC 50/60Hz coil, Lugs-ring terminals. We source our products exclusively through official distribution channels to assure their legitimacy and high performance.
