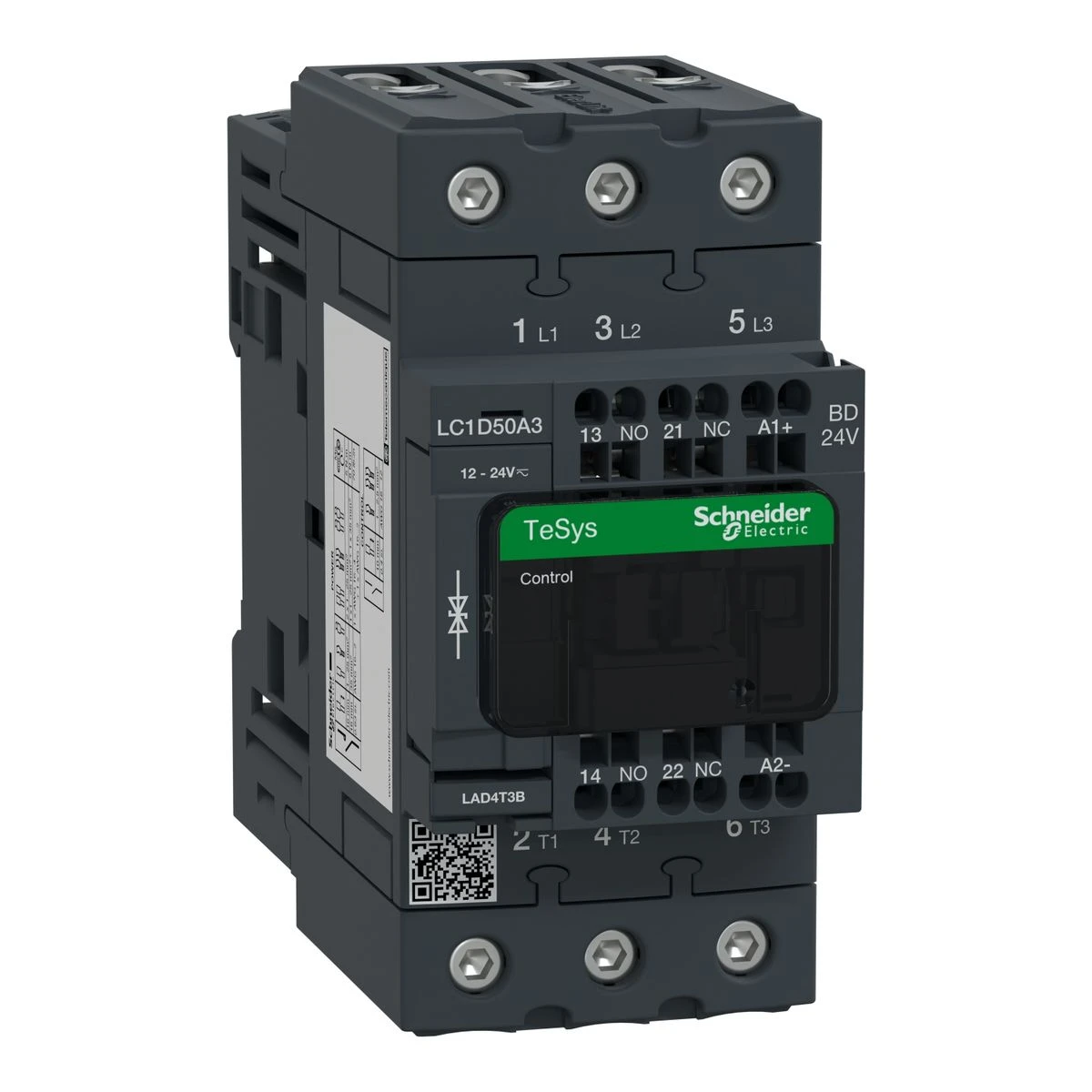

LC1D50A3BD - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24VDC standard coil, spring - Schneider Electric
Motor control
TeSys Deca
Power circuit: 600 V UL certified
Signalling circuit: 690 V conforming to IEC 60947-1
Signalling circuit: 600 V CSA certified
Signalling circuit: 600 V UL certified
Power circuit: 690 V conforming to IEC 60947-4-1
22 kW at 380...400 V AC 50/60 Hz (AC-3)
30 kW at 500 V AC 50/60 Hz (AC-3)
33 kW at 660...690 V AC 50/60 Hz (AC-3)
25 kW at 415 V AC 50/60 Hz (AC-3)
30 kW at 440 V AC 50/60 Hz (AC-3)
11 kW at 400 V AC 50/60 Hz (AC-4)
15 kW at 220...230 V AC 50/60 Hz (AC-3e)
22 kW at 380...400 V AC 50/60 Hz (AC-3e)
30 kW at 500 V AC 50/60 Hz (AC-3e)
33 kW at 660...690 V AC 50/60 Hz (AC-3e)
25 kW at 415 V AC 50/60 Hz (AC-3e)
30 kW at 440 V AC 50/60 Hz (AC-3e)
80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
50 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Power circuit: <= 300 V DC
810 A 40 °C - 1 s for power circuit
84 A 40 °C - 10 min for power circuit
208 A 40 °C - 1 min for power circuit
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit
80 A (at 60 °C) for power circuit
GOST
LROS (Lloyds register of shipping)
GL
CSA
CCC
DNV
UL
RINA
Power circuit: 5 N.m - on EverLink BTR screw connectors - cable 2.5…25 mm² hexagonal screw head 4 mm
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Control circuit: spring terminals 2 2.5 mm² - cable stiffness: flexible without cable end
Power circuit: EverLink BTR screw connectors 1 1…35 mm² - cable stiffness: flexible without cable end
Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: flexible without cable end
Power circuit: EverLink BTR screw connectors 1 1…35 mm² - cable stiffness: flexible with cable end
Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: flexible with cable end
Power circuit: EverLink BTR screw connectors 1 1…35 mm² - cable stiffness: solid without cable end
Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: solid without cable end
100 A gG at <= 690 V coordination type 1 for power circuit
100 A gG at <= 690 V coordination type 2 for power circuit
type mirror contact 1 NC conforming to IEC 60947-4-1
0.75...1.25 Uc (-40…60 °C):operational DC
1...1.25 Uc (60…70 °C):operational DC
Vibrations contactor closed (4 Gn, 5...300 Hz)
Shocks contactor closed (15 Gn for 11 ms)
Shocks contactor open (10 Gn for 11 ms)
7.5 hp at 230/240 V AC 50/60 Hz for 1 phase motors
15 hp at 200/208 V AC 50/60 Hz for 3 phases motors
15 hp at 230/240 V AC 50/60 Hz for 3 phases motors
40 hp at 460/480 V AC 50/60 Hz for 3 phases motors
40 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Plate
9.6 W AC-1
3.7 W AC-3e
0.5 Mcycles 80 A AC-1 at Ue <= 440 V
1.45 Mcycles 50 A AC-3e at Ue <= 440 V
250 A DC for signalling circuit conforming to IEC 60947-5-1
900 A at 440 V for power circuit conforming to IEC 60947
16...24 ms opening
1.5 ms on energisation between NC and NO contact
AC-1
AC-3
AC-3e
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
60…70 °C with derating
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
IEC 60335-1
The LC1D50A3BD - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24VDC standard coil, spring is devised to accommodate the necessities of specialized professionals, such as electrical contractors, circuit experts, maintenance companies, and primary equipment makers. LC1D50A3BD dispenses remarkable durability and advantages for planners in the electrical engineering industry. This Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24VDC standard coil, spring and other TeSyS Deca Contactors from Schneider Electric can be obtained at the most favorable cost and shipping time through BALTELEC website, a credible wholesaler attending to specialists in their gathering needs.
Consumers who have selected Schneider Electric TeSyS Deca Contactors have repeatedly approved the brand's solidity. It has been highlighted that the outstanding efficiency of LC1D50A3BD - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24VDC standard coil, spring extends to a extensive scope of operations. Its excellent qualities make it great selection for various requirements, assuring the success of your industrial, tertiary, and automation ventures.
Our company dedicates in providing for industrial and tertiary professionals’ needs. We get the distinct specifications and anticipations of our clients in the field. By working with our specialists, your organization obtain access to the premier price and inventory of first-rate products like LC1D50A3BD - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24VDC standard coil, spring from Schneider Electric at the lowest price. Registered customers appreciate additional savings and top-tier service.
Move quickly and grab LC1D50A3BD - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24VDC standard coil, spring at our reliable and efficient internet shop. Don't delay in making this smart decision that guarantees the highest quality and adheres to the special demands of vendors like your company.
When you have any uncertainties or concerns about LC1D50A3BD - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24VDC standard coil, spring or any other Schneider Electric products, send us a note or refer to our Knowledge base section below. We have amassed answers to common uncertainties to facilitate you further in making an informed decision about industrial and tertiary electrical components.
Remember, LC1D50A3BD - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24VDC standard coil, spring from Schneider Electric is consistent, inexpensive, and first-rate to its competitors in the TeSyS Deca Contactors category. Make it a part of your configuration at once. Shop with confidence at Baltelec e-shop, your respected merchant for all your professional electrical equipment and automation needs.
In our Baltelec.eu dot-com store you will discover Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24VDC standard coil, spring - LC1D50A3BD worth 207.10 €, which will be a safe and new solution for your necessities. This merchandise is constructed by the Schneider Electric brand using the up-to-the-minute technologies and adheres to the optimal standards of protection and competence. We offer produce from the TeSyS Deca Contactors category that fuse longevity and usefulness, which is an superb preference for various objectives. Regardless of whether you require hardware for small manufacturing or for qualified industrial implementation, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24VDC standard coil, spring will be a faithful partner in your project.
Baltelec works to make the shopping process as accessible and fast as possible for our shoppers. We offer detailed accounts and high-quality images of Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24VDC standard coil, spring so that you can make an enlightened choice. A team of specialists is always ready to help you with any issues in the TeSyS Deca Contactors section related to the electing and use of materials. We are assured that Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24VDC standard coil, spring will meet your standards and become an indispensable element of your hardware for just 207.10 €.
Common Queries about LC1D50A3BD:
-
What are the advantages of buying LC1D50A3BD from BALTELEC?
When your purchase LC1D50A3BD - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24VDC standard coil, spring from Baltelec website, you will get genuine quality Schneider Electric TeSyS Deca Contactors products at competitive prices and delivery schedule. Furthermore, loyal buyersreceive further discounts and priority service.
-
Who can consult if LC1D50A3BD is appropriate for my needs?
To make sure that LC1D50A3BD - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24VDC standard coil, spring is appropriate for your project, we provide detailed information regarding product's specifications, features, and applicable standards. You can access this information on the dedicated page of the product name. If you need additional help, our customer support representative is available to assist you in making an well-informed decision.
-
Which guarantee coverage is provided for LC1D50A3BD?
BALTELEC emphasizes the quality of the items we sell. The regular warranty coverage for Schneider Electric TeSyS Deca Contactors including Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24VDC standard coil, spring is 12 months. However, it is subject depending on the particular product, category, and might be extended. You can find detailed warranty information on the LC1D50A3BD dedicated page or by getting in touch with our customer support team.
-
Do you arrange global shipping for LC1D50A3BD - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24VDC standard coil, spring and other Schneider Electric items?
Absolutely. In addition to catering to Estonia, Latvia, Lithuania and other European Union countries, we provide international shipping for Schneider Electric LC1D50A3BD. Please keep in mind that delivery options, costs, and delivery times can vary based on the shipping location. In the case of complicated acquisitions, kindly contact BALTELEC sales team.
-
Do Schneider Electric MBC offered by BaltElec comply with global norms for security and reliability?
Certainly. All Schneider Electric items offered at Baltelec.eu web store meet global norms such as IEC 60898-1 and carry the CE certification. Such norms ensure that the products fulfill stringent safety, technological, reliability, and performance requirements.
-
Can Baltelec.eu offer guidance on integrating renewable energy solutions, such as solar energy systems or wind energy converters, into my projects?
Yes! Baltelec website recognizes the importance of sustainable energy incorporation within projects. Our team of professionals can assist you in choosing the suitable Schneider Electric items, to integrate them into your renewable energy solutions}. We can offer guidance on combining solar power systems, wind power converters, and additional sustainable options to maximize power generation and efficiency.
-
Are there energy-efficient options offered within the TeSyS Deca Contactors category to encourage energy conservation efforts?
Definitely!Yes! Baltelec website offers numerous eco-friendly solutions within the TeSyS Deca Contactors category that are in line with environmental sustainability objectives. Our brand's Schneider Electric products, such as the Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24VDC standard coil, spring, are crafted with energy efficiency in mind. By using these products into your electrical system, you can optimize energy usage and lower environmental impact. Additionally, we offer affordable pricing for our energy-efficient Schneider Electric products,, making them an cost-effective choice for supporting sustainability.
-
Is Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24VDC standard coil, spring offered by BaltElec e-shop legitimate?
Yes, we only sell original Schneider Electric products, including but not limited to LC1D50A3BD. We obtain our products only through official distribution channels to assure their genuineness and superior quality.
