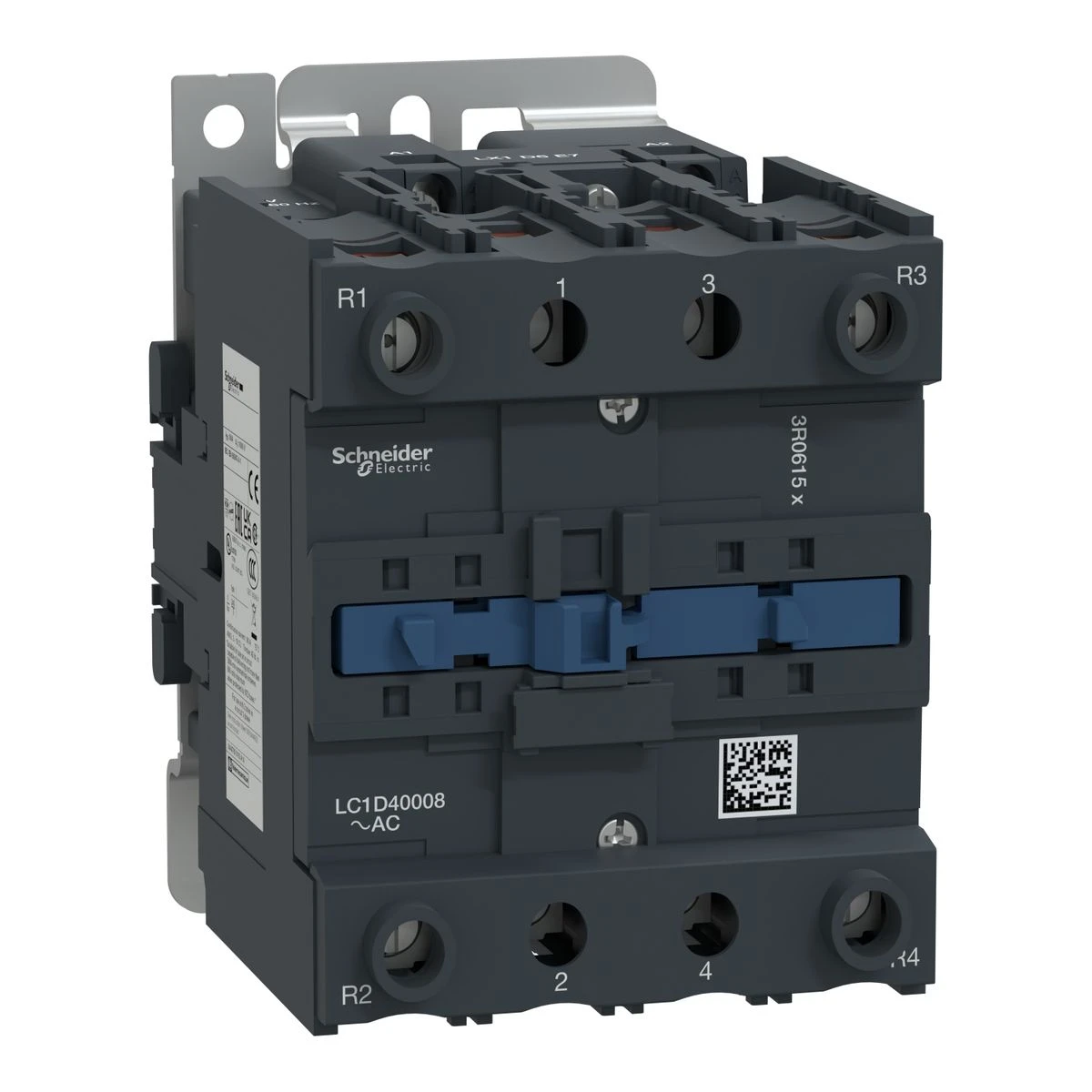

Buy TeSys D contactor 4P(2 NO + 2 NC) AC1 <= 440 V 60 A 48 V AC 50/60 Hz coil - LC1D40008E7, Schneider Electric ⚡️ Balt-Elec

Main

Contactor application Resistive load

Device short name LC1D

Range TeSys

[uc] control circuit voltage 48 V AC 50/60 Hz

[ui] rated insulation voltage Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Power circuit: 690 V conforming to IEC 60947-4-1

control circuit type AC at 50/60 Hz

average impedance 1.5 mOhm - Ith 60 A 50 Hz for power circuit

Complementary

[ie] rated operational current 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

[ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz
Power circuit: <= 300 V DC

compatibility code LC1D

[ics] rated service breaking capacity 800 A at 440 V for power circuit conforming to IEC 60947

[icw] rated short-time withstand current 320 A 40 °C - 10 s for power circuit
720 A 40 °C - 1 s for power circuit
72 A 40 °C - 10 min for power circuit
165 A 40 °C - 1 min for power circuit

[ith] conventional thermal current 60 A (at 60 °C) for power circuit

Product certifications CCC
CSA
BV
UL
DNV
RINA
LROS (Lloyds register of shipping)
GOST
GL

Handle front plate colour 127 mm

Product or component type Contactor

tightening torque Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Power circuit: 8 N.m - on screw clamp terminals - cable 25…35 mm² hexagonal screw head 4 mm
Power circuit: 5 N.m - on screw clamp terminals - cable 1…25 mm² hexagonal screw head 4 mm
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2

[uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947

Connections - terminals Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Power circuit: screw connection 1 1…35 mm² - cable stiffness: flexible without cable end
Power circuit: screw connection 2 1…25 mm² - cable stiffness: flexible without cable end
Power circuit: screw connection 1 1…35 mm² - cable stiffness: flexible with cable end
Power circuit: screw connection 2 1…25 mm² - cable stiffness: flexible with cable end
Power circuit: screw connection 1 1…35 mm² - cable stiffness: solid without cable end
Power circuit: screw connection 2 1…25 mm² - cable stiffness: solid without cable end

Associated fuse rating 80 A gG at <= 690 V coordination type 1 for power circuit
80 A gG at <= 690 V coordination type 2 for power circuit

contact compatibility M1

Control circuit voltage limits 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz
0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz
0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz
1...1.1 Uc (60…70 °C):operational AC 50/60 Hz

width (w) 85 mm

mechanical robustness Shocks contactor open (8 Gn for 11 ms)
Shocks contactor closed (10 Gn for 11 ms)
Vibrations contactor opened (2 Gn, 5...300 Hz)
Vibrations contactor closed (4 Gn, 5...300 Hz)

Flame retardance V1 conforming to UL 94

Heat dissipation 4…5 W at 50/60 Hz

Net weight 1.44 kg

Hold-in power consumption in va 13 VA 60 Hz cos phi 0.3 (at 20 °C)
15 VA 50 Hz cos phi 0.3 (at 20 °C)

Mounting support Rail
Plate

power dissipation per pole 5.4 W AC-1

depth 125 mm

Inrush power in va 140 VA 60 Hz cos phi 0.75 (at 20 °C)
160 VA 50 Hz cos phi 0.75 (at 20 °C)

mechanical durability 6 Mcycles

electrical durability 1.4 Mcycles 60 A AC-1 at Ue <= 440 V

Irms rated making capacity 800 A at 440 V for power circuit conforming to IEC 60947

Pollution degree 3

Maximum operating rate 3600 cyc/h 60 °C

operating time 4...19 ms opening
12...26 ms closing

Protective cover Without

coil technology Without built-in suppressor module

Pole contact composition 2 NO + 2 NC

Poles description 4P

Utilisation category AC-1

Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Environment

Climatic withstand conforming to IACS E10 exposure to damp heat

ip degree of protection IP20 front face conforming to IEC 60529

operating altitude 0...3000 m

Permissible ambient air temperature around the device -40…60 °C
60…70 °C with derating

Range of product TeSys Deca

overvoltage category III

standards CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508

fire resistance 850 °C conforming to IEC 60695-2-1

protective treatment TH conforming to IEC 60068-2-30

LC1D40008E7 - TeSys D contactor 4P(2 NO + 2 NC) AC1 <= 440 V 60 A 48 V AC 50/60 Hz coil - Schneider Electric
