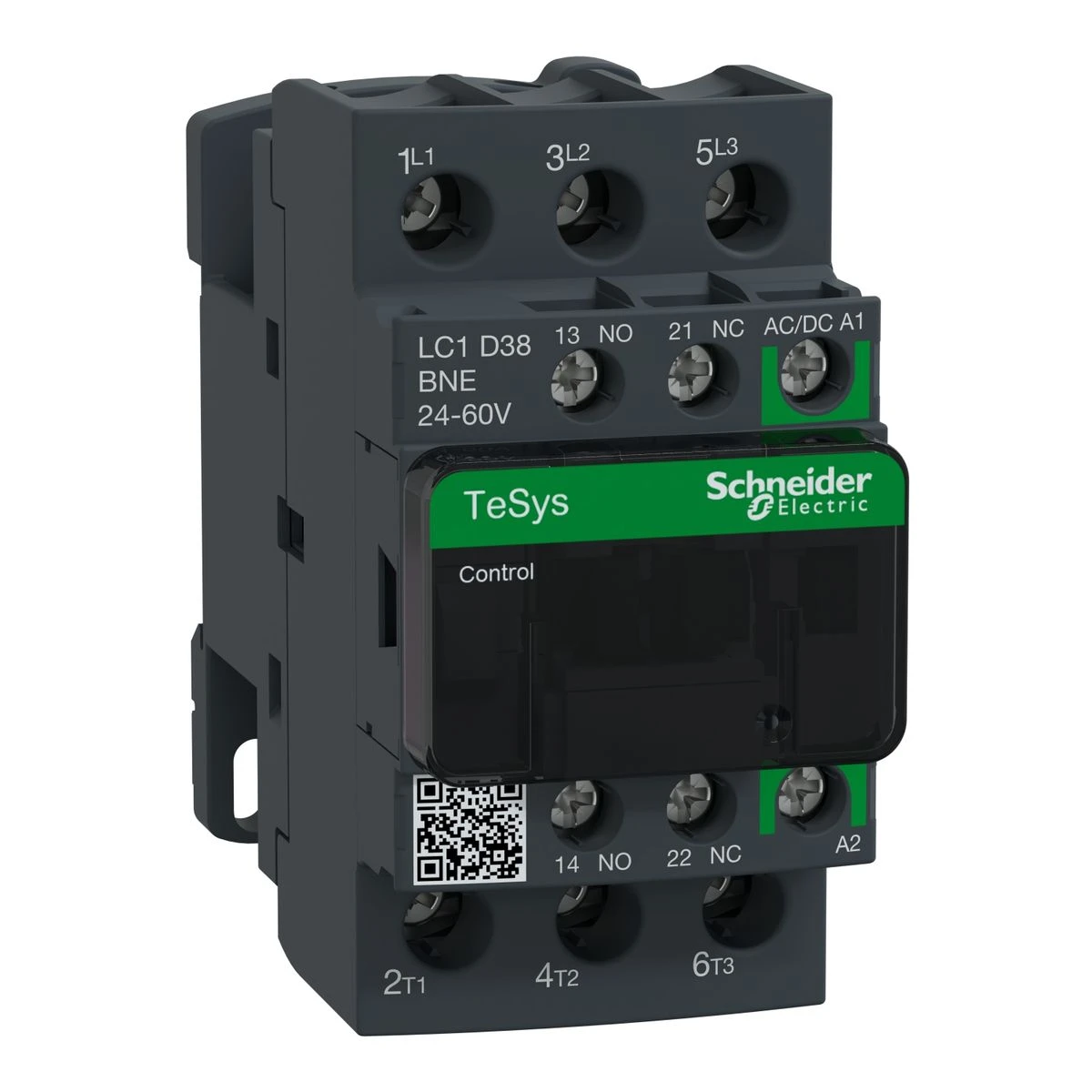

LC1D38BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil - Schneider Electric
Resistive load
TeSys Deca
24...60 V DC
Signalling circuit: 690 V conforming to IEC 60947-1
18.5 kW at 380...400 V AC 50 Hz (AC-3)
18.5 kW at 415 V AC 50 Hz (AC-3)
18.5 kW at 440 V AC 50 Hz (AC-3)
18.5 kW at 500 V AC 50 Hz (AC-3)
18.5 kW at 660...690 V AC 50 Hz (AC-3)
9 kW at 220...230 V AC 50 Hz (AC-3e)
18.5 kW at 380...400 V AC 50 Hz (AC-3e)
18.5 kW at 415 V AC 50 Hz (AC-3e)
18.5 kW at 440 V AC 50 Hz (AC-3e)
18.5 kW at 500 V AC 50 Hz (AC-3e)
18.5 kW at 660...690 V AC 50 Hz (AC-3e)
38 A (at <60 °C) at <= 440 V AC-3 for power circuit
38 A (at <60 °C) at <= 440 V AC-3e for power circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit
60 A 40 °C - 10 min for power circuit
150 A 40 °C - 1 min for power circuit
310 A 40 °C - 10 s for power circuit
430 A 40 °C - 1 s for power circuit
50 A (at 60 °C) for power circuit
CSA
EAC
UL
KC
DNV-GL
LROS (Lloyds register of shipping)
UKCA
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2
Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 M4
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 M3.5
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 1 1…10 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: solid
63 A gG at <= 690 V coordination type 1 for power circuit
63 A gG at <= 690 V coordination type 2 for power circuit
type mirror contact 1 NC conforming to IEC 60947-4-1
0.85...1.1 Uc (-40…60 °C):operational AC
0.8...1.1 Uc (-40…60 °C):operational DC
1...1.1 Uc (60…70 °C):operational AC/DC
Vibrations contactor closed (4 Gn, 5...300 Hz)
Shocks contactor closed (15 Gn for 11 ms)
Shocks contactor open (8 Gn for 11 ms)
5 hp at 230/240 V AC 60 Hz for 1 phase motors
10 hp at 200/208 V AC 60 Hz for 3 phases motors
10 hp at 230/240 V AC 60 Hz for 3 phases motors
20 hp at 460/480 V AC 60 Hz for 3 phases motors
25 hp at 575/600 V AC 60 Hz for 3 phases motors
Rail
3 W AC-3
3 W AC-3e
0.9 Mcycles 50 A AC-1 at Ue <= 440 V
1.8 Mcycles 35 A AC-3e at Ue <= 440 V
250 A DC for signalling circuit conforming to IEC 60947-5-1
550 A at 440 V for power circuit conforming to IEC 60947
20...90 ms opening
1.5 ms on energisation between NC and NO contact
AC-1
AC-3e
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
60…70 °C with derating
EN/IEC 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
IEC 60335-1
The LC1D38BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil is engineered to serve the wants of trade professionals, such as electrical contractors, electricians, service providers, and industry fabricators. LC1D38BNE affords superb durability and utility for specialists in the automation and control industry. This Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil and other TeSyS Deca Contactors from Schneider Electric are accessible at the lowest cost and turnaround time through BaltElec, a trustworthy reseller attending to industry experts in their acquisition needs.
Professionals who have purchased Schneider Electric TeSyS Deca Contactors have regularly extolled the producer's durability. It has been indicated that the unmatched capability of LC1D38BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil extends to a variety of deployments. Its superior characteristics make it well-suited solution for multiple purposes, assuring the success of your industrial, tertiary, and automation ventures.
Our company devotes in addressing industrial and tertiary professionals’ needs. We understand the special criteria and expectations of our customers in the sector. By joining forces with our specialists, you get access to the best price and lead time of premium products like LC1D38BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil from Schneider Electric at an attractive price. Our registered accounts benefit from further discounts and preferred assistance.
Make a move and request LC1D38BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil at our dependable and straightforward web store. Don't delay in making this astute action that validates the supreme quality and satisfies the unique expectations of purchasers like your firm.
If you possess any issues or concerns about LC1D38BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil or any other Schneider Electric products, email us or refer to our Frequently Asked Queries section below. We have assembled answers to common requests for information to help you further in making an knowledgeable decision about industrial and tertiary electrical components.
Remember, LC1D38BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil from Schneider Electric is steady, thrifty, and top-notch to other vendors in the TeSyS Deca Contactors category. Make it a part of your electrical system right now. Get at Baltelec webstore, your consistent provider for all your professional electrical equipment and automation needs.
In our Baltelec.eu web store you will identify Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil - LC1D38BNE worth 143.65 €, which will be a steadfast and modern solution for your wishes. This product is engineered by the Schneider Electric brand using the advanced technologies and complies with the highest standards of well-being and productivity. We offer products from the TeSyS Deca Contactors category that fuse resilience and usability, which is an excellent selection for various roles. Despite of whether you desire equipment for small manufacturing or for specialized industrial exploitation, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil will be a trustworthy aide in your work.
Baltelec strives to make the shopping process as comfortable and fast as accomplishable for our purchasers. We offer detailed depictions and high-quality illustrations of Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil so that you can make an educated choice. A team of experts is always ready to help you with any questions in the TeSyS Deca Contactors section related to the preferment and use of supplies. We are guaranteed that Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil will meet your standards and become an important element of your kit for just 143.65 €.
Frequently Asked Questions about LC1D38BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil:
-
What are the benefits of ordering Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil from BALTELEC?
When you order LC1D38BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil from BaltElec, you get genuine high-quality Schneider Electric TeSyS Deca Contactors products at the most competitive prices and turnaround time. Moreover, our partnersenjoy further discounts and first-class attention.
-
Can Baltelec consult if LC1D38BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil is the right choice for my project?
To ensure that Schneider Electric LC1D38BNE meets the requirements of your project, we provide detailed details pertaining to product's technical specifications, features, and applicable standards. You can find this information on the product page of the item name. If you need more guidance, our customer service representative stands ready to aid you in making an informed decision.
-
What guarantee coverage is provided for LC1D38BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil?
Baltelec team emphasizes the reliability of the products we offer. The regular warranty coverage for Schneider Electric TeSyS Deca Contactors including LC1D38BNE is 1 year. Nevertheless, it is subject depending on the individual product, product category, and might be extended. You can find comprehensive guarantee details on the Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil dedicated page or by contacting our support team team.
-
Can you arrange worldwide shipping for LC1D38BNE including other Schneider Electric products?
Certainly. Apart from serving Estonia, Latvia, Lithuania and other European Union countries, we offer worldwide shipping for LC1D38BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil. Please be aware that shipping options, fees, and delivery schedule can differ based on the shipping location. For volume inquiries, kindly contact BALTELEC sales staff.
-
Do Schneider Electric MBC provided by BaltElec meet international standards for security and quality?
Of course. All Schneider Electric items available at Baltelec.eu online store conform to international standards such as IEC 60898-1 and carry the CE certification. These standards ensure that the items meet stringent security, technical, reliability, and functional requirements.
-
Can BALTELEC offer guidance on incorporating renewable energy solutions, such as solar energy systems or wind power converters, into my projects?
Certainly! BaltElec acknowledges the relevance of sustainable energy incorporation within projects. Our team of experts can assist you in choosing the suitable Schneider Electric products, to incorporate them into your renewable energy solutions}. We can offer recommendations on integrating solar energy systems, wind power converters, and additional sustainable options to maximize power generation and efficiency.
-
Are there eco-friendly options available within the TeSyS Deca Contactors category to promote green energy initiatives?
Definitely!Yes! Baltelec.eu online store provides numerous energy-efficient solutions in the category of TeSyS Deca Contactors that are aligned with energy-saving goals. Our brand's Schneider Electric products, like the Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil, are designed with energy efficiency in mind. By using these products into your electrical system, you can optimize energy usage and reduce environmental impact. Additionally, we offer attractive pricing for our energy-efficient Schneider Electric products,, making them an budget-friendly choice for supporting sustainability.
-
Is Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 38A, 24 to 60VAC/DC coil available by BaltElec e-shop legitimate?
Indeed, we exclusively provide authentic Schneider Electric products, including LC1D38BNE. We procure our products exclusively through official distribution channels to guarantee their authenticity and superior standards.
