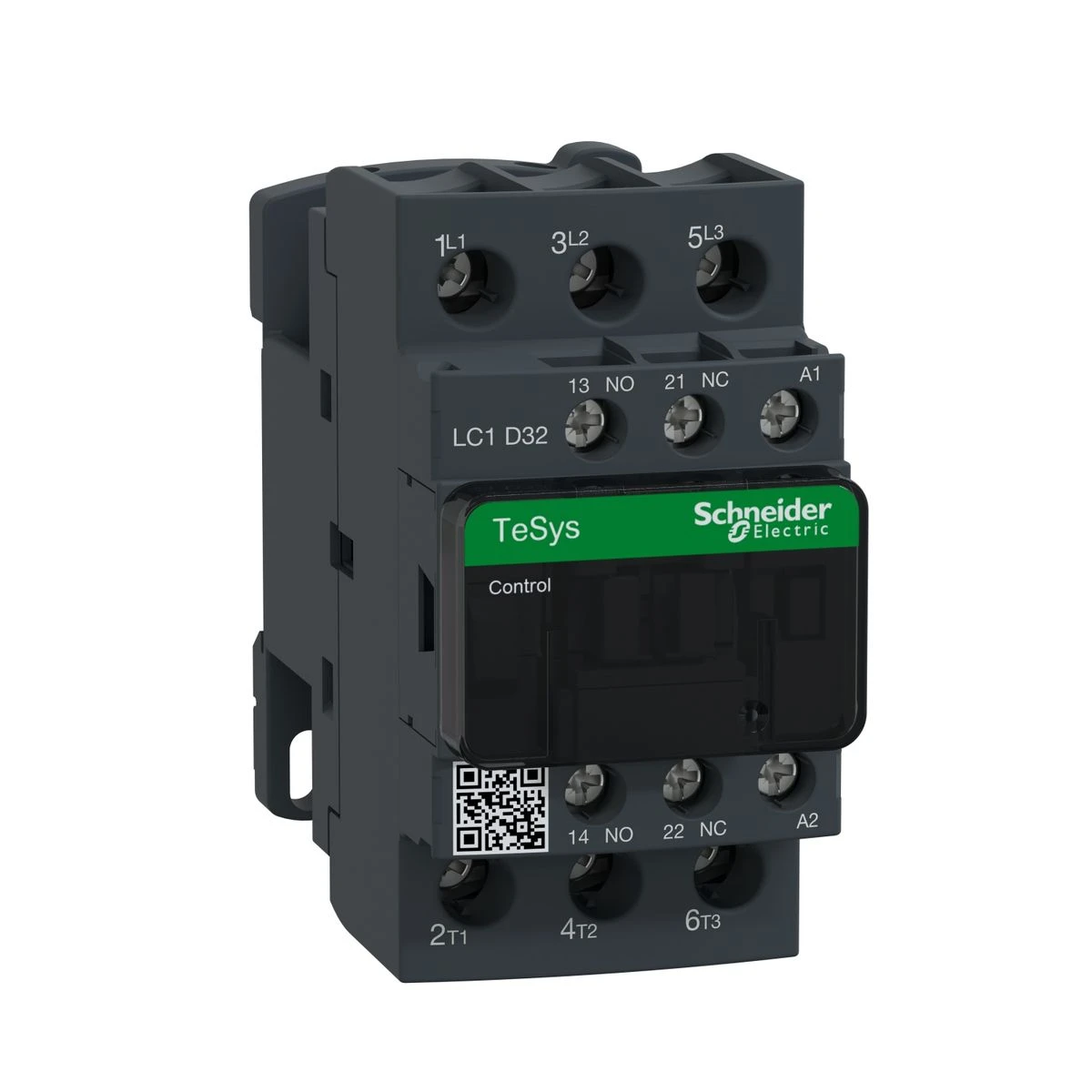

LC1D32V7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 400VAC 50/60Hz coil, screw clamp terminals - Schneider Electric
TeSys Deca
TeSys Deca
AC-1
AC-3
AC-3e
Charge résistive (AC-1)
Circuit de puissance: 600 V UL certifié
Circuit de signalisation: 690 V se conformer à CEI 60947-1
Circuit de signalisation: 600 V CSA certifié
Circuit de signalisation: 600 V UL certifié
Circuit de puissance: 690 V se conformer à CEI 60947-4-1
10 hp à 230/240 V CA 50/60 Hz pour 3 phases moteurs
30 hp à 575/600 V CA 50/60 Hz pour 3 phases moteurs
2 hp à 115 V CA 50/60 Hz pour monophasé moteurs
7,5 hp à 200/208 V CA 50/60 Hz pour 3 phases moteurs
20 hp à 460/480 V CA 50/60 Hz pour 3 phases moteurs
15 kW à 380...400 V CA 50/60 Hz (AC-3)
15 kW à 415...440 V CA 50/60 Hz (AC-3)
18,5 kW à 500 V CA 50/60 Hz (AC-3)
18,5 kW à 660...690 V CA 50/60 Hz (AC-3)
7,5 kW à 400 V CA 50/60 Hz (AC-4)
7,5 kW à 220...230 V CA 50/60 Hz (AC-3e)
15 kW à 380...400 V CA 50/60 Hz (AC-3e)
15 kW à 415...440 V CA 50/60 Hz (AC-3e)
18,5 kW à 500 V CA 50/60 Hz (AC-3e)
18,5 kW à 660...690 V CA 50/60 Hz (AC-3e)
50 A (à <60 °C) à <= 440 V CA AC-1 pour circuit de puissance
32 A (à <60 °C) à <= 440 V CA AC-3e pour circuit de puissance
Circuit de puissance: <= 300 V CC
138 A à <40 °C - 1 min pour circuit de puissance
260 A à <40 °C - 10 s pour circuit de puissance
430 A à <40 °C - 1s pour circuit de puissance
100 A - 1s pour circuit de signalisation
120 A - 500 ms pour circuit de signalisation
140 A - 100 ms pour circuit de signalisation
50 A à <60 °C) pour circuit de puissance
63 A gG à <= 690 V coordination type 1 pour circuit de puissance
63 A gG à <= 690 V coordination type 2 pour circuit de puissance
Télécommande :1,7 N.m - sur borniers à vis-étrier - avec tournevis cruciforme Philips n° 2
Circuit de puissance :2,5 N.m - sur borniers à vis-étrier - avec tournevis plat Ø 6 mm
Circuit de puissance :2,5 N.m - sur borniers à vis-étrier - avec tournevis cruciforme Philips n° 2
Télécommande :1,7 N.m - sur borniers à vis-étrier - avec tournevis pozidriv n°2
Circuit de puissance :2,5 N.m - sur borniers à vis-étrier - avec tournevis pozidriv n°2
7 VA 50 Hz cos phi 0,3 (à 20 °C)
type contact miroir 1 "O" se conformer à CEI 60947-4-1
1,4 Mcycles 50 A AC-1 à Ue <= 440 V
1,65 Mcycles 32 A AC-3e à Ue <= 440 V
Télécommande: borniers à vis-étrier 1 1…4 mm² - rigidité du câble: souple sans embout
Télécommande: borniers à vis-étrier 2 1…4 mm² - rigidité du câble: souple sans embout
Télécommande: borniers à vis-étrier 1 1…4 mm² - rigidité du câble: souple avec embout
Télécommande: borniers à vis-étrier 1 1…4 mm² - rigidité du câble: rigide sans embout
Télécommande: borniers à vis-étrier 2 1…4 mm² - rigidité du câble: rigide sans embout
Circuit de puissance: borniers à vis-étrier 1 2,5…10 mm² - rigidité du câble: souple sans embout
Circuit de puissance: borniers à vis-étrier 2 2,5…10 mm² - rigidité du câble: souple sans embout
Circuit de puissance: borniers à vis-étrier 1 1…10 mm² - rigidité du câble: souple avec embout
Circuit de puissance: borniers à vis-étrier 2 1,5…6 mm² - rigidité du câble: souple avec embout
Circuit de puissance: borniers à vis-étrier 1 1,5…10 mm² - rigidité du câble: rigide sans embout
Circuit de puissance: borniers à vis-étrier 2 2,5…10 mm² - rigidité du câble: rigide sans embout
0,8 à 1,1 Uc -40…60 °C opérationnel CA 50 Hz
0,85…1,1 Uc -40…60 °C opérationnel CA 60 Hz
1...1,1 Uc 60…70 °C opérationnel CA 50/60 Hz
Vibrations contacteur fermé (4 Gn, 5 à 300 Hz)
Chocs contacteur fermé (15 Gn pour 11 ms)
Chocs contacteur ouvert (8 Gn pour 11 ms)
250 A CC pour circuit de signalisation se conformer à CEI 60947-5-1
550 A à 440 V pour circuit de puissance se conformer à CEI 60947
Rail
70 VA 50 Hz cos phi 0,75 (à 20 °C)
12…22 ms fermeture
5 W AC-1
2 W AC-3e
B10d = 20000000 cycle contacteur avec charge mécanique se conformer à EN/ISO 13849-1
1,5 ms sur excitation entre contact NC et NO
GOST
UL
BV
GL
CCC
RINA
LROS (Lloyds register of shipping)
CSA
60…70 °C avec réduction de courant
EN 60947-4-1
EN 60947-5-1
CEI 60947-4-1
CEI 60947-5-1
UL 508
CEI 60335-1
se conformer à IEC 60947-1 Annex Q category D exposition à la chaleur humide
The LC1D32V7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 400VAC 50/60Hz coil, screw clamp terminals is fashioned to fulfill the necessities of industry specialists, such as electrical contractors, cable technicians, facility upkeep providers, and equipment creators. LC1D32V7 dispenses unmatched performance and utility for specialists in the electrical and automation industry. This Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 400VAC 50/60Hz coil, screw clamp terminals and other TeSyS Deca Contactors from Schneider Electric can be purchased at the most affordable rate and shipping time through BaltElec website, a reliable purveyor supplying specialists in their provision needs.
Customers who have chosen Schneider Electric TeSyS Deca Contactors have frequently extolled the maker's dependability. It has been outlined that the unmatched energy-efficiency of LC1D32V7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 400VAC 50/60Hz coil, screw clamp terminals extends to a multitude of functions. Its top-notch characteristics make it fitting to meet diverse demands. Your developed solution will excel in quality, energy-efficiency and price.
Our experts devotes in catering industrial and tertiary professionals’ needs. We get the particular needs and anticipations of our partners in the market. By joining forces with our team, your team obtain access to the finest price lists and inventory of the top-of-the-line products like LC1D32V7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 400VAC 50/60Hz coil, screw clamp terminals from Schneider Electric at an affordable price. Registered users get added discounts and dedicated support.
Seize the moment and request LC1D32V7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 400VAC 50/60Hz coil, screw clamp terminals at our risk-free and accessible digital marketplace. Don't delay in making this shrewd plan that affirms the paramount quality and achieves the personalized standards of buyers like your enterprise.
If there are any uncertainties or concerns about LC1D32V7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 400VAC 50/60Hz coil, screw clamp terminals or any other Schneider Electric products, call us or refer to our Common Questions section below. We have compiled answers to popular uncertainties to aid you further in making an knowledgeable decision about industrial and tertiary electrical components.
Remember, LC1D32V7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 400VAC 50/60Hz coil, screw clamp terminals from Schneider Electric is reliable, budget-friendly, and elite to market challengers in the TeSyS Deca Contactors category. Feel free to make it a part of your installation promptly. Get at Baltelec e-shop, your faithful dealer for all your TeSyS Deca Contactors.
In our Baltelec.eu cyber store you will encounter Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 400VAC 50/60Hz coil, screw clamp terminals - LC1D32V7 worth 105.59 €, which will be a steadfast and contemporary solution for your desires. This product is created by the Schneider Electric brand using the modern technologies and aligns with the top standards of precaution and capability. We provide items from the TeSyS Deca Contactors category that blend endurance and effectiveness, which is an outstanding possibility for various intents. In defiance of whether you crave appliances for small assembly or for competent industrial utilization, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 400VAC 50/60Hz coil, screw clamp terminals will be a faithful aide in your job.
Baltelec works to make the shopping process as accessible and fast as viable for our clients. We offer detailed descriptions and high-quality shots of Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 400VAC 50/60Hz coil, screw clamp terminals so that you can make an informed choice. A team of masters is always ready to help you with any matter in the TeSyS Deca Contactors section tied to the nomination and use of merchandise. We are convinced that Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 400VAC 50/60Hz coil, screw clamp terminals will meet your criteria and become an vital element of your tools for just 105.59 €.
Popular Questions about LC1D32V7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 400VAC 50/60Hz coil, screw clamp terminals:
-
What are the advantages of buying LC1D32V7 from Baltelec.eu online store?
When you buy Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 400VAC 50/60Hz coil, screw clamp terminals from Baltelec, you will receive genuine high-quality Schneider Electric TeSyS Deca Contactors products at the most advantageous pricing and delivery schedule. Additionally, registered accountstake pleasure in additional savings and preferred assistance.
-
Can Baltelec advise if Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 400VAC 50/60Hz coil, screw clamp terminals is suitable for my technical requirements?
To verify that Schneider Electric LC1D32V7 matches your technical requirements, we provide comprehensive information concerning product's specifications, features, and applicable standards. You can find this information on the specific page of the device model. If you require more guidance, our support team team is prepared to help you in making an informed decision.
-
Which warranty coverage is offered for Schneider Electric LC1D32V7?
Baltelec team is committed to the excellence of the items we sell. The standard guarantee coverage for Schneider Electric TeSyS Deca Contactors including LC1D32V7 is 12 months. Nonetheless, it is subject according to the particular item, category, and may even be extended. You can find comprehensive guarantee details on the Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 400VAC 50/60Hz coil, screw clamp terminals product page or by reaching out to our customer support representatives.
-
Do you provide global shipping for LC1D32V7 as well as other Schneider Electric products?
Absolutely. Besides serving Estonia, Latvia, Lithuania and other European Union countries, we provide global shipping for LC1D32V7. Please keep in mind that shipping options, fees, and delivery times might differ depending on the destination. For complex orders, please consult BaltElec sales representatives.
-
Do Schneider Electric MBC provided by BaltElec meet international standards for security and reliability?
Of course. All Schneider Electric products available at BALTELEC web store meet international standards such as IEC 60898-1 standard and carry the CE mark. These standards assure that the items fulfill strict safety, technological, dependability, and functional requirements.
-
Can Baltelec.eu offer support on incorporating renewable energy solutions, such as solar power systems or wind power converters, into my projects?
Certainly! Baltelec.eu website understands the significance of sustainable energy integration within community. Our team of specialists can assist you in choosing the appropriate Schneider Electric items, to integrate them into your renewable energy projects}. We can offer guidance on integrating solar energy systems, wind energy converters, and alternative sustainable options to maximize power generation and effectiveness.
-
Do you have green options available within the TeSyS Deca Contactors category to promote green energy initiatives?
Absolutely! Baltelec website provides various eco-friendly solutions in the category of TeSyS Deca Contactors that are aligned with green energy initiatives. Our top-quality Schneider Electric products, such as the Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 400VAC 50/60Hz coil, screw clamp terminals, are designed with energy efficiency in mind. By integrating these products into your electrical system, you can maximize energy usage and reduce environmental impact. Additionally, we present affordable pricing for our green Schneider Electric products,, making them an budget-friendly choice for advocating sustainability.
-
Is LC1D32V7 sold by BaltElec e-shop authentic?
Absolutely, we solely provide authentic Schneider Electric products, including LC1D32V7. We source our products only through legitimate distribution channels to guarantee their genuineness and high standards.
