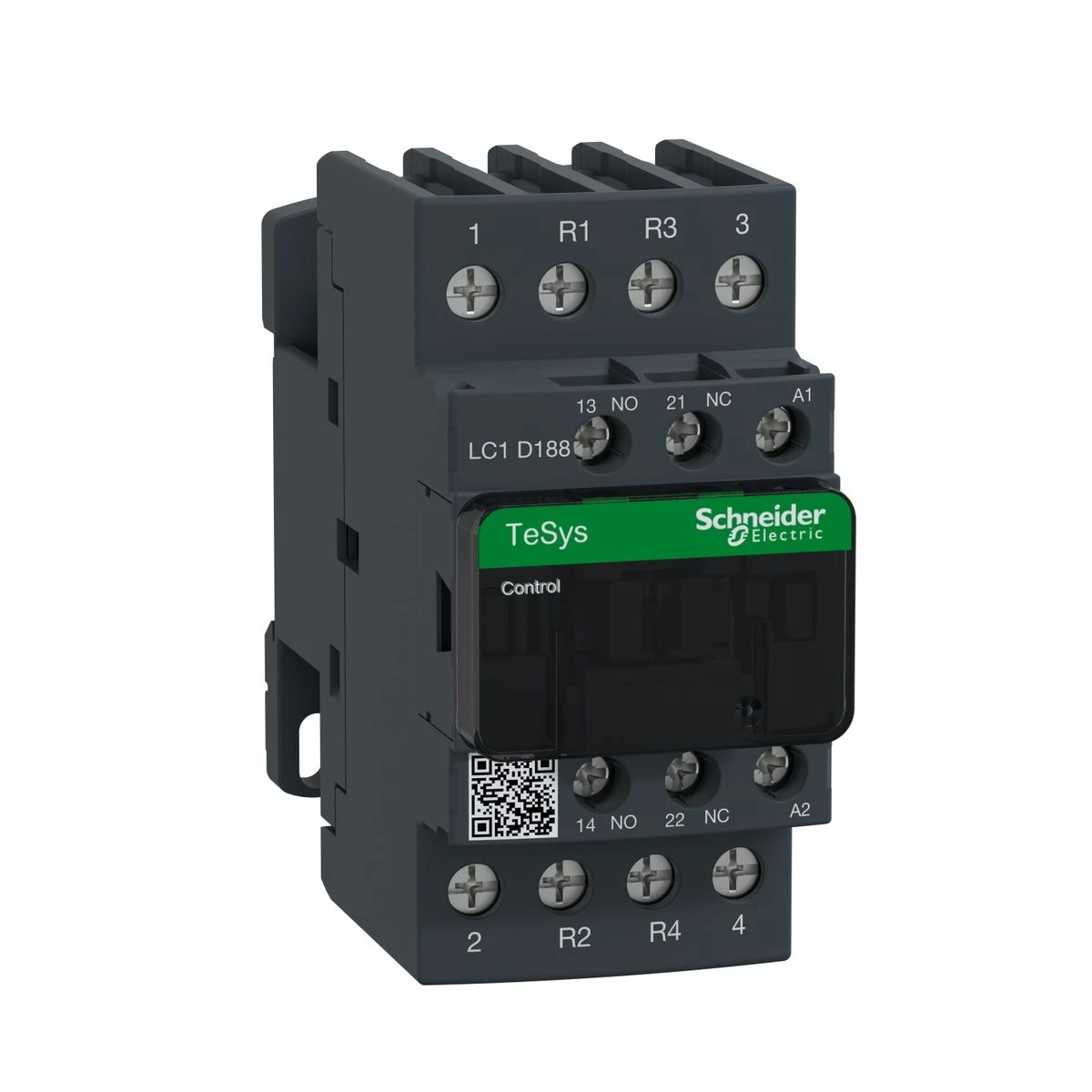

LC1D188M7 - Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <= 440V, 32A, 220V AC 50/60Hz coil, screw terminal - Schneider Electric
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Signalling circuit: 690 V conforming to IEC 60947-1
Signalling circuit: 600 V CSA certified
Signalling circuit: 600 V UL certified
240 A 40 °C - 1 s for power circuit
40 A 40 °C - 10 min for power circuit
84 A 40 °C - 1 min for power circuit
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit
32 A (at 60 °C) for power circuit
CSA
CCC
EAC
UKCA
CB
EU-RO-MR by DNV-GL
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Power circuit: 1.8 N.m - on screw clamps terminals - with screwdriver flat Ø 6 mm
Power circuit: 1.8 N.m - on screw clamps terminals - with screwdriver Philips No 2
Power circuit: 1.8 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 2.5…16 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 2 2.5…16 mm² - cable stiffness: solid without cable end
50 A gG at <= 690 V coordination type 1 for power circuit
35 A gG at <= 690 V coordination type 2 for power circuit
type mirror contact 1 NC conforming to IEC 60947-4-1
0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz
0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz
Vibrations contactor closed (4 Gn, 5...300 Hz)
Shocks contactor open (10 Gn for 11 ms)
Shocks contactor closed (15 Gn for 11 ms)
7 VA 50 Hz cos phi 0.3 (at 20 °C)
Plate
70 VA 50 Hz cos phi 0.75 (at 20 °C)
250 A DC for signalling circuit conforming to IEC 60947-5-1
300 A at 440 V for power circuit conforming to IEC 60947
4...19 ms opening
1.5 ms on energisation between NC and NO contact
AC-3
AC-3e
AC-4
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
60…70 °C with derating
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 60947-4-1
UL 60947-5-1
CSA C22.2 No 60947-4-1
CSA C22.2 No 60947-5-1
GB/T 14048.4
The LC1D188M7 - Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <= 440V, 32A, 220V AC 50/60Hz coil, screw terminal is devised to satisfy the demands of trade professionals, such as circuit designers, circuit experts, maintenance companies, and manufacturing originators. LC1D188M7 delivers superior durability and asset for technicians in the power management industry. This Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <= 440V, 32A, 220V AC 50/60Hz coil, screw terminal and other TeSyS Deca Contactors from Schneider Electric are on offer at the most favorable cost and supply period through BaltElec, a trustworthy merchant aiding practitioners in their procurement needs.
Technicians who have chosen Schneider Electric TeSyS Deca Contactors have repeatedly admired the creator's dependability. It has been emphasized that the impressive energy-efficiency of LC1D188M7 - Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <= 440V, 32A, 220V AC 50/60Hz coil, screw terminal extends to a diverse range of scenarios. Its superior elements make it great selection to suit a variety of needs, guaranteeing the success of your industrial, tertiary, and automation contracts.
BaltElec team dedicates in serving industrial and tertiary professionals’ needs. We comprehend the particular criteria and preferences of our buyers in the niche. By working with our professionals, your organization obtain access to the premier price and delivery schedule of premium products like LC1D188M7 - Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <= 440V, 32A, 220V AC 50/60Hz coil, screw terminal from Schneider Electric at an economical price. Registered users enjoy more savings and dedicated support.
Move quickly and secure LC1D188M7 - Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <= 440V, 32A, 220V AC 50/60Hz coil, screw terminal at our risk-free and intuitive e-commerce site. Don't delay in making this sensible move that guarantees the supreme quality and caters to the unique criteria of customers like you.
Should you have any worries or concerns about LC1D188M7 - Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <= 440V, 32A, 220V AC 50/60Hz coil, screw terminal or any other Schneider Electric products, drop us a line or refer to our Help section section below. We have gathered answers to popular inquiries to aid you further in making an well-informed decision about industrial and tertiary electrical components.
Remember, LC1D188M7 - Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <= 440V, 32A, 220V AC 50/60Hz coil, screw terminal from Schneider Electric is consistent, affordable, and premier to opposing companies in the TeSyS Deca Contactors category. Make it a part of your configuration promptly. Purchase at baltele.eu, your trusted partner for all your TeSyS Deca Contactors.
In our Baltelec.eu digital store you will spot Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <= 440V, 32A, 220V AC 50/60Hz coil, screw terminal - LC1D188M7 worth 106.08 €, which will be a secure and up-to-date solution for your expectations. This merchandise is invented by the Schneider Electric brand using the state-of-the-art technologies and complies with the peak standards of security and workmanship. We supply things from the TeSyS Deca Contactors category that combine endurance and operability, which is an outstanding choice for various uses. Without consideration of whether you desire tools for small construction or for skilled industrial use, Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <= 440V, 32A, 220V AC 50/60Hz coil, screw terminal will be a sure facilitator in your occupation.
Baltelec tries to make the obtaining process as effortless and fast as attainable for our shoppers. We offer detailed outlines and high-quality visuals of Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <= 440V, 32A, 220V AC 50/60Hz coil, screw terminal so that you can make an advised choice. A team of pros is always ready to help you with any doubts in the TeSyS Deca Contactors section pertaining to the picking and use of items. We are guaranteed that Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <= 440V, 32A, 220V AC 50/60Hz coil, screw terminal will meet your expectations and become an necessary element of your tools for just 106.08 €.
