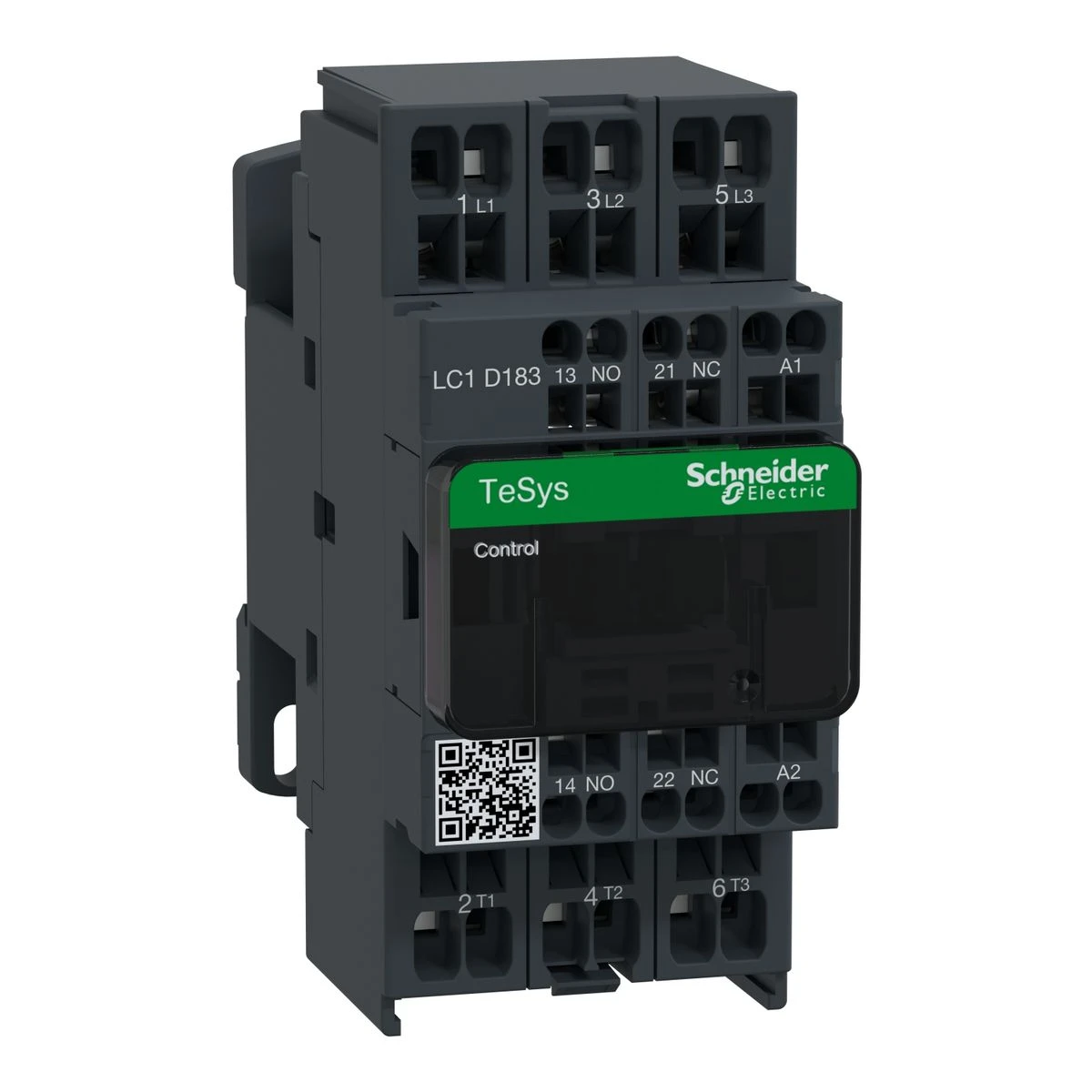

LC1D183P7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 18A, 230VAC 50/60Hz coil, spring - Schneider Electric
Resistive load
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Signalling circuit: 690 V conforming to IEC 60947-1
Signalling circuit: 600 V CSA certified
Signalling circuit: 600 V UL certified
7.5 kW at 380...400 V AC 50/60 Hz (AC-3)
9 kW at 415...440 V AC 50/60 Hz (AC-3)
10 kW at 500 V AC 50/60 Hz (AC-3)
10 kW at 660...690 V AC 50/60 Hz (AC-3)
4 kW at 400 V AC 50/60 Hz (AC-4)
4 kW at 220...230 V AC 50/60 Hz (AC-3e)
7.5 kW at 380...400 V AC 50/60 Hz (AC-3e)
9 kW at 415...440 V AC 50/60 Hz (AC-3e)
10 kW at 500 V AC 50/60 Hz (AC-3e)
10 kW at 660...690 V AC 50/60 Hz (AC-3e)
32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
18 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Power circuit: <= 300 V DC
240 A 40 °C - 1 s for power circuit
40 A 40 °C - 10 min for power circuit
84 A 40 °C - 1 min for power circuit
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit
10 A (at 60 °C) for signalling circuit
RINA
DNV
GOST
BV
CSA
CCC
GL
UL
UKCA
Control circuit: spring terminals 2 2.5 mm² - cable stiffness: flexible without cable end
Power circuit: spring terminals 1 4 mm² - cable stiffness: flexible without cable end
Power circuit: spring terminals 2 4 mm² - cable stiffness: flexible without cable end
50 A gG at <= 690 V coordination type 1 for power circuit
35 A gG at <= 690 V coordination type 2 for power circuit
type mirror contact 1 NC conforming to IEC 60947-4-1
0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz
0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz
1...1.1 Uc (60…70 °C):operational AC 50/60 Hz
Vibrations contactor closed (4 Gn, 5...300 Hz)
Shocks contactor open (10 Gn for 11 ms)
Shocks contactor closed (15 Gn for 11 ms)
7 VA 50 Hz cos phi 0.3 (at 20 °C)
3 hp at 230/240 V AC 50/60 Hz for 1 phase motors
5 hp at 200/208 V AC 50/60 Hz for 3 phases motors
5 hp at 230/240 V AC 50/60 Hz for 3 phases motors
10 hp at 460/480 V AC 50/60 Hz for 3 phases motors
15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Rail
0.8 W AC-3
0.8 W AC-3e
70 VA 50 Hz cos phi 0.75 (at 20 °C)
1 Mcycles 32 A AC-1 at Ue <= 440 V
1.65 Mcycles 25 A AC-3e at Ue <= 440 V
250 A DC for signalling circuit conforming to IEC 60947-5-1
300 A at 440 V for power circuit conforming to IEC 60947
4...19 ms opening
1.5 ms on energisation between NC and NO contact
AC-1
AC-4
AC-3e
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
60…70 °C with derating
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
IEC 60335-1
The LC1D183P7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 18A, 230VAC 50/60Hz coil, spring is developed to accommodate the expectations of technical experts, such as electrical installers, electricians, service organizations, and original manufacturers. LC1D183P7 yields superb reliability and benefits for planners in the electrotechnical industry. This Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 18A, 230VAC 50/60Hz coil, spring and other TeSyS Deca Contactors from Schneider Electric are accessible at the optimal price and supply period through BaltElec online store, a well-known distributor meeting the needs of engineers in their acquisition needs.
Professionals who have purchased Schneider Electric TeSyS Deca Contactors have steadily approved the creator's robustness. It has been noted that the impressive functionality of LC1D183P7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 18A, 230VAC 50/60Hz coil, spring extends to a collection of purposes. Its first-rate qualities make it fitting for various requirements. Your developed solution will excel in quality, energy-efficiency and price.
BaltElec centers in fulfilling industrial and tertiary professionals’ needs. We know the particular demands and anticipations of our buyers in the domain. By cooperating with our professionals, our partners secure access to the best price lists and delivery schedule of premium products like LC1D183P7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 18A, 230VAC 50/60Hz coil, spring from Schneider Electric at cost-effective price. Authorized buyers take pleasure in further discounts and preferred assistance.
Act now and request LC1D183P7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 18A, 230VAC 50/60Hz coil, spring at our secure and hassle-free website. Don't delay in making this thoughtful investment that confirms the greatest quality and meets the unique requests of contractors like yourselves.
Should there be any problems or concerns about LC1D183P7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 18A, 230VAC 50/60Hz coil, spring or any other Schneider Electric products, call us or refer to our Common Questions section below. We have collected answers to typical concerns to advise you further in making an informed decision about industrial and tertiary electrical components.
Remember, LC1D183P7 - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 18A, 230VAC 50/60Hz coil, spring from Schneider Electric is trustworthy, thrifty, and premier to opposing companies in the TeSyS Deca Contactors category. Feel free to make it a part of your configuration right now. Acquire at Baltelec e-shop, your esteemed seller for all your professional electrical equipment and automation needs.
In our Baltelec.eu web store you will uncover Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 18A, 230VAC 50/60Hz coil, spring - LC1D183P7 worth 61.51 €, which will be a reliable and contemporary solution for your needs. This merchandise is developed by the Schneider Electric brand using the up-to-the-minute technologies and aligns with the top standards of well-being and efficacy. We present items from the TeSyS Deca Contactors category that merge strength and efficacy, which is an excellent decision for various intents. Without consideration of whether you necessitate devices for small manufacturing or for professional industrial purpose, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 18A, 230VAC 50/60Hz coil, spring will be a secure facilitator in your duty.
Baltelec aims to make the securing process as effortless and fast as practicable for our clients. We offer detailed outlines and high-quality depictions of Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 18A, 230VAC 50/60Hz coil, spring so that you can make an versed choice. A team of connoisseurs is always ready to help you with any queries in the TeSyS Deca Contactors section affiliated to the deciding and use of goods. We are persuaded that Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 18A, 230VAC 50/60Hz coil, spring will meet your prospects and become an necessary element of your kit for just 61.51 €.
