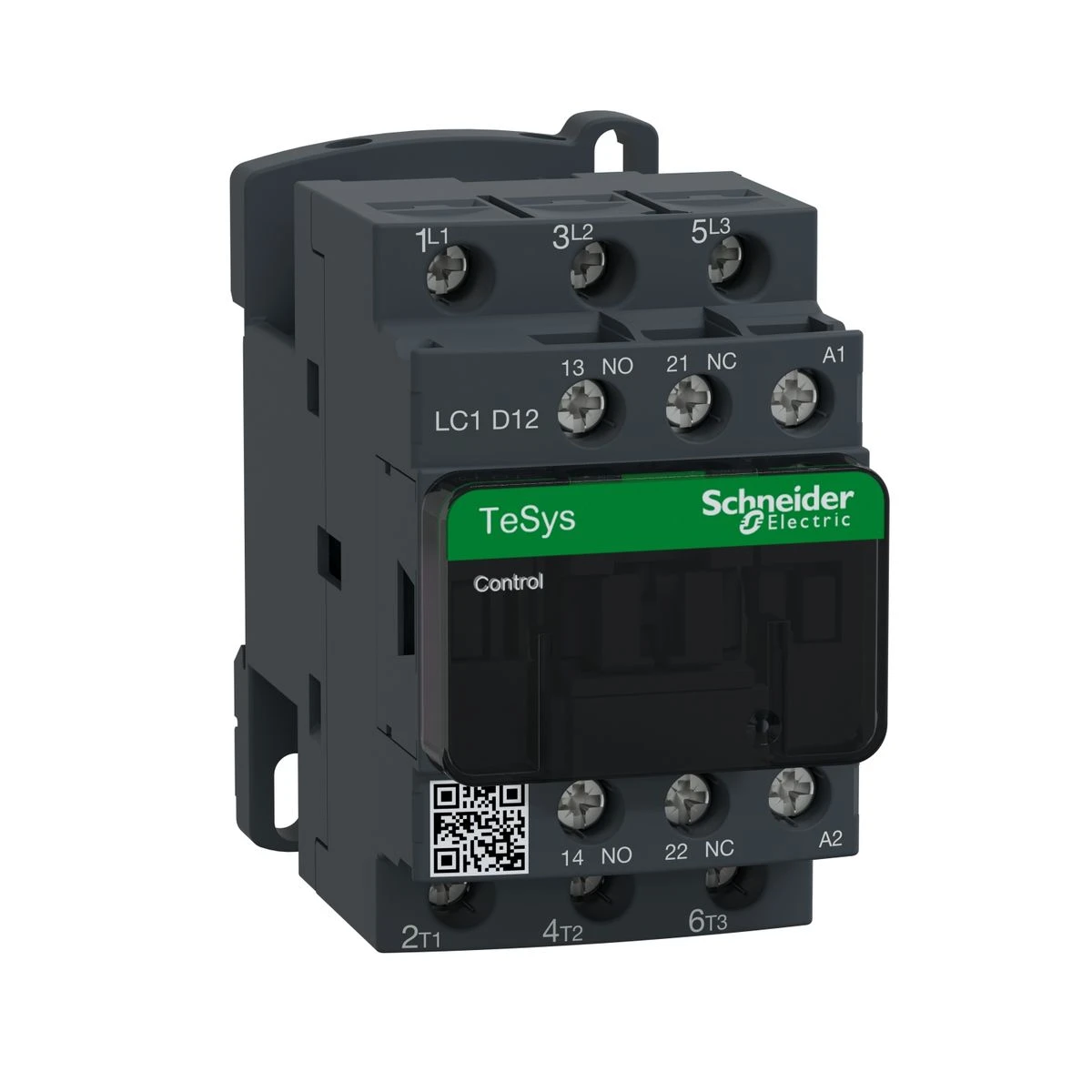

LC1D12G7 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 120V AC 50/60Hz coil - Schneider Electric
Resistive load
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Signalling circuit: 690 V conforming to IEC 60947-1
Signalling circuit: 600 V CSA certified
Signalling circuit: 600 V UL certified
5.5 kW at 380...400 V AC 50/60 Hz (AC-3)
5.5 kW at 415...440 V AC 50/60 Hz (AC-3)
7.5 kW at 500 V AC 50/60 Hz (AC-3)
7.5 kW at 660...690 V AC 50/60 Hz (AC-3)
3.7 kW at 400 V AC 50/60 Hz (AC-4)
3 kW at 220...230 V AC 50/60 Hz (AC-3e)
5.5 kW at 380...400 V AC 50/60 Hz (AC-3e)
5.5 kW at 415...440 V AC 50/60 Hz (AC-3e)
7.5 kW at 500 V AC 50/60 Hz (AC-3e)
7.5 kW at 660...690 V AC 50/60 Hz (AC-3e)
12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
12 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Power circuit: <= 300 V DC
210 A 40 °C - 1 s for power circuit
30 A 40 °C - 10 min for power circuit
61 A 40 °C - 1 min for power circuit
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit
10 A (at 60 °C) for signalling circuit
GOST
GL
CSA
BV
LROS (Lloyds register of shipping)
UL
RINA
CCC
UKCA
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
40 A gG at <= 690 V coordination type 1 for power circuit
25 A gG at <= 690 V coordination type 2 for power circuit
type mirror contact 1 NC conforming to IEC 60947-4-1
0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz
0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz
1...1.1 Uc (60…70 °C):operational AC 50/60 Hz
Vibrations contactor closed (4 Gn, 5...300 Hz)
Shocks contactor open (10 Gn for 11 ms)
Shocks contactor closed (15 Gn for 11 ms)
7 VA 50 Hz cos phi 0.3 (at 20 °C)
2 hp at 230/240 V AC 50/60 Hz for 1 phase motors
3 hp at 200/208 V AC 50/60 Hz for 3 phases motors
3 hp at 230/240 V AC 50/60 Hz for 3 phases motors
7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors
10 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Plate
1.56 W AC-1
0.36 W AC-3e
70 VA 50 Hz cos phi 0.75 (at 20 °C)
0.8 Mcycles 25 A AC-1 at Ue <= 440 V
2 Mcycles 12 A AC-3e at Ue <= 440 V
140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1
4...19 ms opening
1.5 ms on energisation between NC and NO contact
AC-4
AC-1
AC-3e
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
60…70 °C with derating
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
IEC 60335-1
The LC1D12G7 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 120V AC 50/60Hz coil is conceived to match the necessities of professional purchasers, such as electrical contractors, cable technicians, service organizations, and OEMs. LC1D12G7 affords impressive integrity and merit for specialists in the power management industry. This Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 120V AC 50/60Hz coil and other TeSyS Deca Contactors from Schneider Electric are on offer the best price and distribution time through BALTELEC online store, a well-regarded supplier meeting the needs of engineers in their acquisition needs.
Engineers who have opted for Schneider Electric TeSyS Deca Contactors have habitually approved the brand's sturdiness. It has been remarked that the superlative performance of LC1D12G7 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 120V AC 50/60Hz coil extends to a broad spectrum of utilizations. Its first-rate elements make it perfect choice for various requirements, assuring the success of your industrial, tertiary, and automation ventures.
Our company focuses in accommodating industrial and tertiary professionals’ needs. We understand the unique specifications and demands of our clients in the domain. By partnering with our specialists, your enterprise access access to the superior charges and lead time of top-tier products like LC1D12G7 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 120V AC 50/60Hz coil from Schneider Electric at a reasonable price. Registered users take pleasure in special savings and top-tier service.
Start immediately and procure LC1D12G7 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 120V AC 50/60Hz coil at our trusted and straightforward platform. Don't delay in making this shrewd pick that warrants the highest quality and complies with the distinct standards of contractors like your business.
If you encounter any queries or concerns about LC1D12G7 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 120V AC 50/60Hz coil or any other Schneider Electric products, communicate with us or refer to our Assistance center section below. We have gathered answers to standard concerns to aid you further in making an informed decision about industrial and tertiary electrical components.
Remember, LC1D12G7 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 120V AC 50/60Hz coil from Schneider Electric is reliable, low-cost, and top-notch to alternative suppliers in the TeSyS Deca Contactors category. Make it a part of your solution at once. Obtain at baltele.eu, your esteemed seller for all your TeSyS Deca Contactors.
In our Baltelec.eu electronic store you will find Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 120V AC 50/60Hz coil - LC1D12G7 worth 62.42 €, which will be a sure and innovative solution for your preferences. This merchandise is constructed by the Schneider Electric brand using the freshest technologies and fulfills the top standards of defense and efficacy. We propose articles from the TeSyS Deca Contactors category that blend lastingness and practicality, which is an excellent alternative for various intents. Notwithstanding of whether you demand gear for small assembly or for skilled industrial operation, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 120V AC 50/60Hz coil will be a reliable facilitator in your endeavor.
Baltelec ventures to make the attaining process as manageable and fast as workable for our shoppers. We offer detailed explanations and high-quality photos of Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 120V AC 50/60Hz coil so that you can make an informed choice. A team of specialists is always ready to help you with any wonder in the TeSyS Deca Contactors section relevant to the selection and use of goods. We are confident that Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 120V AC 50/60Hz coil will meet your criteria and become an crucial element of your setup for just 62.42 €.
FAQ about LC1D12G7:
-
What are the benefits of ordering Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 120V AC 50/60Hz coil from baltelec.eu?
When your purchase Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 120V AC 50/60Hz coil from baltelec.eu, you get original quality Schneider Electric TeSyS Deca Contactors products at the most advantageous pricing and delivery period. Additionally, loyal buyersget additional savings and priority service.
-
Can Baltelec consult if Schneider Electric LC1D12G7 suits for my technical requirements?
To make sure that Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 120V AC 50/60Hz coil meets the requirements of your application, we offer thorough information pertaining to product's specs, features, and compatibility. You can find this information on the specific page of the product name. If you need more guidance, our customer service team is available to assist you in making an educated decision.
-
What guarantee coverage is offered for LC1D12G7 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 120V AC 50/60Hz coil?
Baltelec.eu team stands for the quality of the items we deliver. The standard guarantee coverage for Schneider Electric TeSyS Deca Contactors including Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 120V AC 50/60Hz coil is 1 year. Nonetheless, it depends according to the particular item, product category, and might be extended. You can find specific warranty details on the Schneider Electric LC1D12G7 dedicated page or by getting in touch with our customer service team.
-
Do you provide worldwide shipping for LC1D12G7 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 120V AC 50/60Hz coil and other Schneider Electric products?
Absolutely. In addition to serving Estonia, Latvia, Lithuania and other European Union countries, we offer global shipping for Schneider Electric LC1D12G7. However that delivery options, costs, and delivery schedule might vary depending on the destination. In the case of bulk requests, please consult Baltelec.eu sales representatives.
-
Do Schneider Electric MBC offered by Baltelec.eu comply with international standards for security and reliability?
Of course. All Schneider Electric products offered at BALTELEC online store conform to global norms such as IEC 60898-1 standard and carry the CE certification. Such standards guarantee that the products fulfill stringent safety, technological, reliability, and performance criteria.
-
Can BaltElec offer support on integrating renewable energy solutions, such as solar power systems or wind energy converters, into my projects?
Definitely! Baltelec.eu acknowledges the relevance of renewable energy incorporation within community. Our team of specialists can help you in picking the appropriate Schneider Electric items, to integrate them into your renewable energy solutions}. We can offer recommendations on integrating solar power systems, wind power converters, and other eco-friendly options to maximize energy generation and efficiency.
-
Do you have eco-friendly options offered within the TeSyS Deca Contactors category to encourage environmental sustainability?
Certainly! Baltelec website offers a wide range of green solutions within the TeSyS Deca Contactors category that are aligned with green energy initiatives. Our top-quality Schneider Electric products, such as the LC1D12G7, are engineered with energy efficiency in mind. By integrating these products into your electrical system, you can enhance energy usage and minimize environmental impact. Additionally, we provide attractive pricing for our energy-efficient Schneider Electric products,, making them an cost-effective choice for advocating sustainability.
-
Is Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 12A, 120V AC 50/60Hz coil sold by BaltElec e-shop original?
Absolutely, we exclusively provide authentic Schneider Electric products, such as LC1D12G7. We source our products solely through legitimate distribution channels to guarantee their authenticity and excellent performance.
