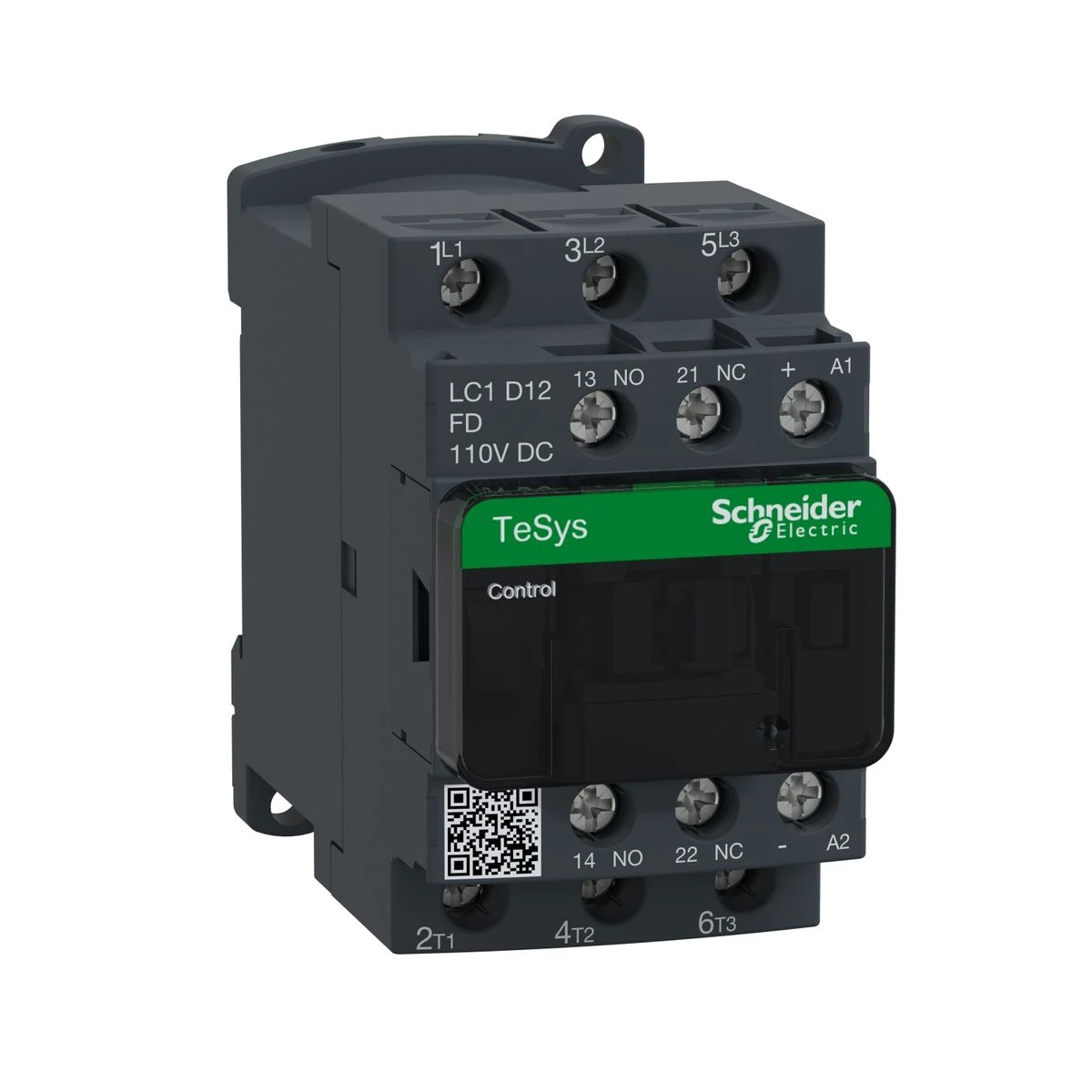

LC1D12FD - TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 12 A 110 V DC coil - Schneider Electric
Resistive load
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Signalling circuit: 690 V conforming to IEC 60947-1
Signalling circuit: 600 V CSA certified
Signalling circuit: 600 V UL certified
5.5 kW at 380...400 V AC 50/60 Hz (AC-3)
5.5 kW at 415...440 V AC 50/60 Hz (AC-3)
7.5 kW at 500 V AC 50/60 Hz (AC-3)
7.5 kW at 660...690 V AC 50/60 Hz (AC-3)
3.7 kW at 400 V AC 50/60 Hz (AC-4)
3 kW at 220...230 V AC 50/60 Hz (AC-3e)
5.5 kW at 380...400 V AC 50/60 Hz (AC-3e)
5.5 kW at 415...440 V AC 50/60 Hz (AC-3e)
7.5 kW at 500 V AC 50/60 Hz (AC-3e)
7.5 kW at 660...690 V AC 50/60 Hz (AC-3e)
12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
12 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Power circuit: <= 300 V DC
210 A 40 °C - 1 s for power circuit
30 A 40 °C - 10 min for power circuit
61 A 40 °C - 1 min for power circuit
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit
10 A (at 60 °C) for signalling circuit
BV
CCC
GOST
DNV
GL
LROS (Lloyds register of shipping)
UL
RINA
UKCA
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
40 A gG at <= 690 V coordination type 1 for power circuit
25 A gG at <= 690 V coordination type 2 for power circuit
type mirror contact 1 NC conforming to IEC 60947-4-1
0.7...1.25 Uc (-40…60 °C):operational DC
1...1.25 Uc (60…70 °C):operational DC
Vibrations contactor closed (4 Gn, 5...300 Hz)
Shocks contactor open (10 Gn for 11 ms)
Shocks contactor closed (15 Gn for 11 ms)
2 hp at 230/240 V AC 50/60 Hz for 1 phase motors
3 hp at 200/208 V AC 50/60 Hz for 3 phases motors
3 hp at 230/240 V AC 50/60 Hz for 3 phases motors
7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors
10 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Plate
1.56 W AC-1
0.36 W AC-3e
0.8 Mcycles 25 A AC-1 at Ue <= 440 V
2 Mcycles 12 A AC-3e at Ue <= 440 V
140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1
16...24 ms opening
1.5 ms on energisation between NC and NO contact
AC-4
AC-3
AC-3e
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
60…70 °C with derating
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
IEC 60335-1
The LC1D12FD - TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 12 A 110 V DC coil is fashioned to serve the demands of industry experts, such as switchgear manufacturers, electric engineers, service organizations, and original producers. LC1D12FD presents outstanding efficiency and gain for experts in the power management industry. This TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 12 A 110 V DC coil and other TeSyS Deca Contactors from Schneider Electric are procurable at the most favorable cost and delivery schedule through BALTELEC website, a well-known vendor serving tradesmen in their obtaining needs.
Buyers who have selected Schneider Electric TeSyS Deca Contactors have invariably complimented the creator's dependability. It has been mentioned that the superior performance of LC1D12FD - TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 12 A 110 V DC coil extends to a assortment of applications. Its excellent characteristics make it well-suited solution to suit a variety of needs. Your developed solution will excel in quality, energy-efficiency and price.
BaltElec team concentrates in catering industrial and tertiary professionals’ needs. We comprehend the unique requirements and expectations of our consumers in the realm. By aligning with our company, our customers acquire access to the top costs and stock of first-rate products like LC1D12FD - TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 12 A 110 V DC coil from Schneider Electric at an affordable price. Account holders appreciate added discounts and priority service.
Do not hesitate and secure LC1D12FD - TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 12 A 110 V DC coil at our reliable and streamlined digital marketplace. Don't delay in making this wise investment that validates the utmost quality and fulfills the distinct prerequisites of professionals like your company.
Should there be any doubts or concerns about LC1D12FD - TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 12 A 110 V DC coil or any other Schneider Electric products, call us or refer to our FAQ section section below. We have provided answers to popular issues to serve you further in making an thoughtful decision about industrial and tertiary electrical components.
Remember, LC1D12FD - TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 12 A 110 V DC coil from Schneider Electric is consistent, economical, and first-rate to its competitors in the TeSyS Deca Contactors category. Make it a part of your setup this moment. Acquire at baltele.eu, your respected merchant for all your professional electrical equipment and automation needs.
In our Baltelec.eu web store you will locate TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 12 A 110 V DC coil - LC1D12FD worth 55.56 €, which will be a sure and modern solution for your necessities. This item is fabricated by the Schneider Electric brand using the advanced technologies and aligns with the pinnacle standards of guarding and workmanship. We provide articles from the TeSyS Deca Contactors category that amalgamate strength and practicality, which is an superior choice for various objectives. Irrespective of whether you desire gear for small manufacturing or for skilled industrial exertion, TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 12 A 110 V DC coil will be a safe partner in your duty.
Baltelec tries to make the attaining process as straightforward and fast as practicable for our users. We offer detailed depictions and high-quality depictions of TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 12 A 110 V DC coil so that you can make an briefed choice. A team of experts is always ready to help you with any inquiries in the TeSyS Deca Contactors section connected to the determining and use of merchandise. We are certain that TeSys Deca contactor 3P(3 NO) AC3/AC3e <= 440 V 12 A 110 V DC coil will meet your expectations and become an needed element of your hardware for just 55.56 €.
