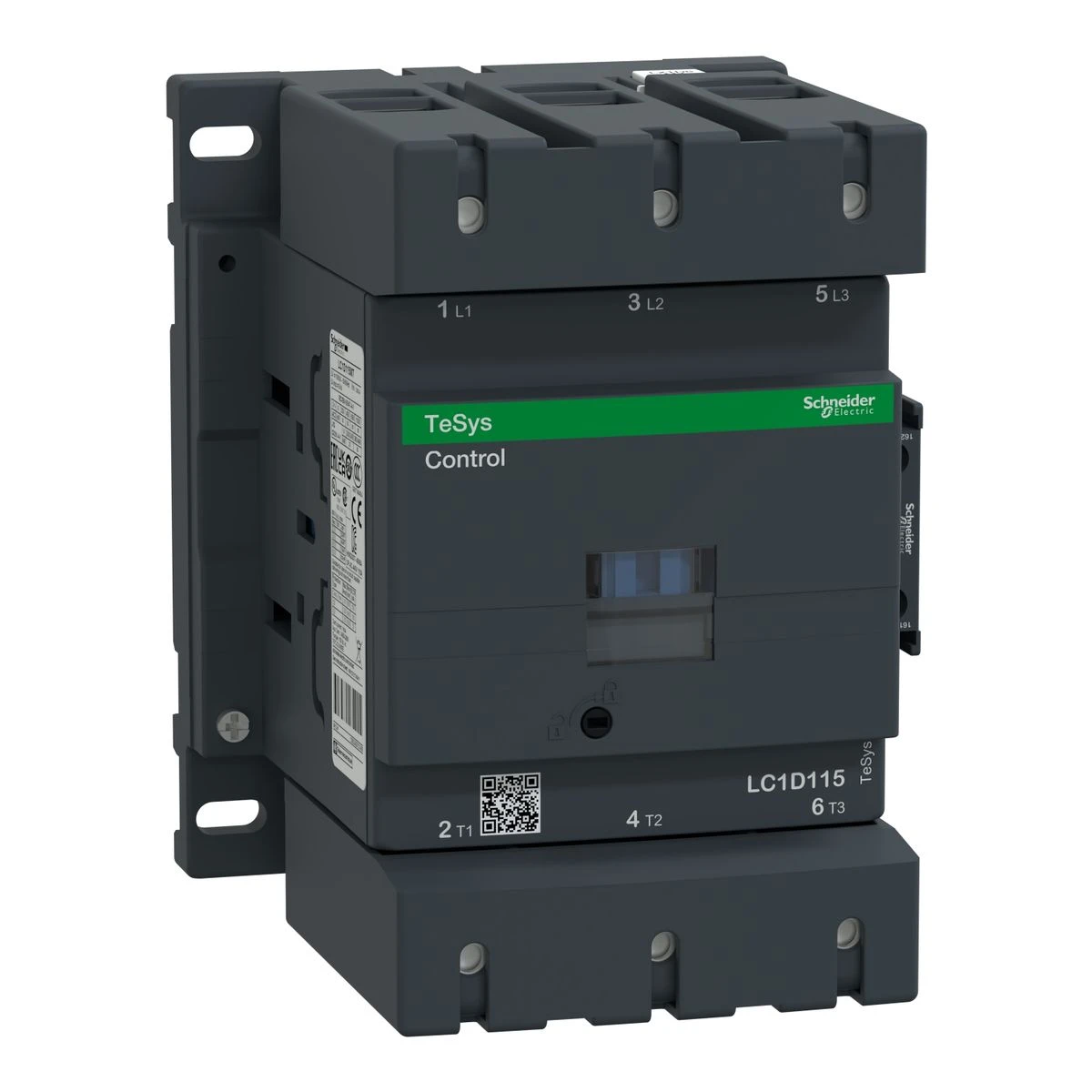

LC1D115M5 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V AC 50Hz coil, screw clamp terminals - Schneider Electric
Resistive load
Power circuit: 600 V UL certified
Power circuit: 1000 V conforming to IEC 60947-4-1
Signalling circuit: 690 V conforming to IEC 60947-1
Signalling circuit: 600 V CSA certified
Signalling circuit: 600 V UL certified
55 kW at 380...400 V AC 50/60 Hz (AC-3)
59 kW at 415...440 V AC 50/60 Hz (AC-3)
75 kW at 500 V AC 50/60 Hz (AC-3)
80 kW at 660...690 V AC 50/60 Hz (AC-3)
65 kW at 1000 V AC 50/60 Hz (AC-3)
18.5 kW at 400 V AC 50/60 Hz (AC-4)
30 kW at 220...230 V AC 50/60 Hz (AC-3e)
55 kW at 380...400 V AC 50/60 Hz (AC-3e)
59 kW at 415...440 V AC 50/60 Hz (AC-3e)
75 kW at 500 V AC 50/60 Hz (AC-3e)
80 kW at 660...690 V AC 50/60 Hz (AC-3e)
65 kW at 1000 V AC 50/60 Hz (AC-3e)
115 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
115 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Power circuit: <= 300 V DC
550 A 40 °C - 1 min for power circuit
950 A 40 °C - 10 s for power circuit
1100 A 40 °C - 1 s for power circuit
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit
RINA
DNV
CSA
LROS (Lloyds register of shipping)
BV
UL
GL
CCC
UKCA
CE
Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2
Power circuit: 12 N.m - on connector hexagonal screw head 4 mm
Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end
Power circuit: connector 1 10…120 mm² - cable stiffness: flexible without cable end
Power circuit: connector 2 10…50 mm² - cable stiffness: flexible without cable end
Power circuit: connector 1 10…120 mm² - cable stiffness: flexible with cable end
Power circuit: connector 2 10…50 mm² - cable stiffness: flexible with cable end
Power circuit: connector 1 10…120 mm² - cable stiffness: solid without cable end
Power circuit: connector 2 10…50 mm² - cable stiffness: solid without cable end
200 A gG at <= 690 V coordination type 2 for power circuit
10 A gG for signalling circuit
type mirror contact 1 NC conforming to IEC 60947-4-1
0.85...1.1 Uc (-40…55 °C):operational AC 50 Hz
1...1.1 Uc (55…70 °C):operational AC 50 Hz
Vibrations contactor closed (4 Gn, 5...300 Hz)
Shocks contactor closed (15 Gn for 11 ms)
Shocks contactor open (6 Gn for 11 ms)
40 hp at 230/240 V AC 50/60 Hz for 3 phases motors
75 hp at 460/480 V AC 50/60 Hz for 3 phases motors
100 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Plate
7.9 W AC-3
7.9 W AC-3e
0.95 Mcycles 115 A AC-3 at Ue <= 440 V
0.95 Mcycles 115 A AC-3e at Ue <= 440 V
140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1
20...50 ms closing
1.5 ms on energisation between NC and NO contact
AC-4
AC-1
AC-3e
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
60…70 °C with derating
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
The LC1D115M5 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V AC 50Hz coil, screw clamp terminals is produced to fulfill the wants of industry experts, such as panel builders, electrical installers, facility management firms, and manufacturing originators. LC1D115M5 offers exceptional integrity and asset for experts in the power management industry. This Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V AC 50Hz coil, screw clamp terminals and other TeSyS Deca Contactors from Schneider Electric can be acquired at the most economical price and delivery period through BaltElec online store, an independent distributor catering to professionals in their sourcing needs.
Engineers who have opted for Schneider Electric TeSyS Deca Contactors have repeatedly appreciated the maker's dependability. It has been emphasized that the exceptional operation of LC1D115M5 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V AC 50Hz coil, screw clamp terminals extends to a assortment of functions. Its supreme traits make it suitable to suit a variety of needs, assuring the success of your industrial, tertiary, and automation ventures.
Our team concentrates in catering industrial and tertiary professionals’ needs. We recognize the distinct requirements and expectations of our consumers in the niche. By cooperating with us, your business acquire access to the top pricing and stock of the top-of-the-line products like LC1D115M5 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V AC 50Hz coil, screw clamp terminals from Schneider Electric at a competitive price. Authorized buyers take pleasure in extra discounts and first-class attention.
Move quickly and request LC1D115M5 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V AC 50Hz coil, screw clamp terminals at our risk-free and easy-to-use platform. Don't delay in making this shrewd pick that secures the utmost quality and caters to the special standards of vendors like you.
When you have any worries or concerns about LC1D115M5 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V AC 50Hz coil, screw clamp terminals or any other Schneider Electric products, email us or refer to our Frequently Asked Questions section below. We have compiled answers to common queries to back you further in making an educated decision about industrial and tertiary electrical components.
Remember, LC1D115M5 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V AC 50Hz coil, screw clamp terminals from Schneider Electric is consistent, reasonable, and first-rate to its competitors in the TeSyS Deca Contactors category. Make it a part of your electrical system this moment. Procure at BaltElec, your respected merchant for all your professional electrical equipment and automation needs.
In our Baltelec.eu dot-com store you will spot Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V AC 50Hz coil, screw clamp terminals - LC1D115M5 worth 432.33 €, which will be a trustworthy and contemporary solution for your demands. This commodity is designed by the Schneider Electric brand using the current technologies and complies with the optimal standards of security and efficiency. We supply articles from the TeSyS Deca Contactors category that amalgamate sturdiness and usefulness, which is an excellent alternative for various uses. Independent of whether you crave devices for small assembly or for qualified industrial purpose, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V AC 50Hz coil, screw clamp terminals will be a reliable adjunct in your work.
Baltelec efforts to make the securing process as comfortable and fast as workable for our patrons. We offer detailed explanations and high-quality photos of Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V AC 50Hz coil, screw clamp terminals so that you can make an informed choice. A team of adepts is always ready to help you with any doubts in the TeSyS Deca Contactors section affiliated to the preferment and use of merchandise. We are affirmed that Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 220V AC 50Hz coil, screw clamp terminals will meet your wishes and become an imperative element of your apparatus for just 432.33 €.
