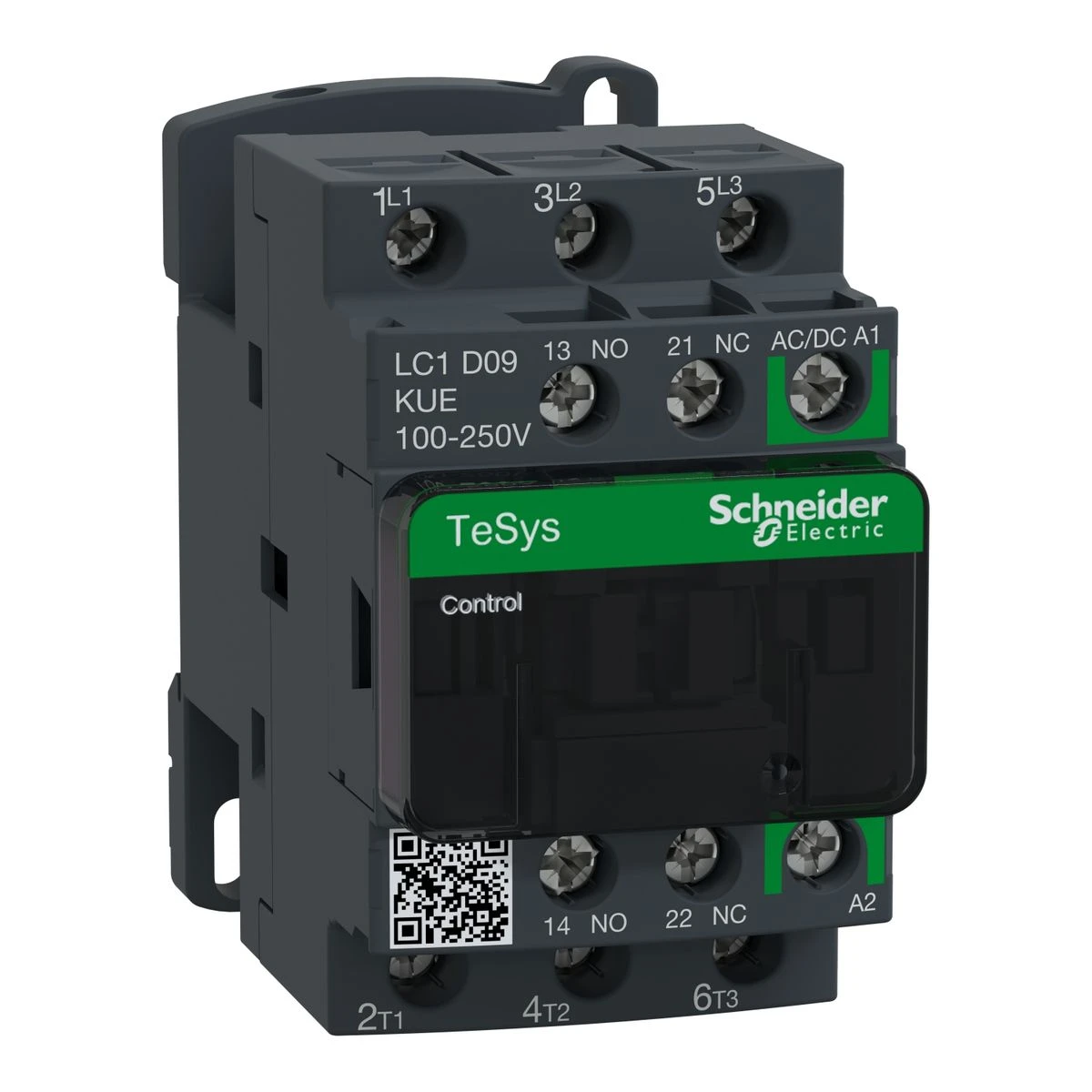

LC1D09KUE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 100 to 250VAC/DC coil - Schneider Electric
Resistive load
TeSys Deca
100...250 V DC
Signalling circuit: 690 V conforming to IEC 60947-1
4 kW at 380...400 V AC 50 Hz (AC-3)
4 kW at 415 V AC 50 Hz (AC-3)
4 kW at 440 V AC 50 Hz (AC-3)
5.5 kW at 500 V AC 50 Hz (AC-3)
5.5 kW at 660...690 V AC 50 Hz (AC-3)
2.2 kW at 220...230 V AC 50 Hz (AC-3e)
4 kW at 380...400 V AC 50 Hz (AC-3e)
4 kW at 415 V AC 50 Hz (AC-3e)
4 kW at 440 V AC 50 Hz (AC-3e)
5.5 kW at 500 V AC 50 Hz (AC-3e)
5.5 kW at 660...690 V AC 50 Hz (AC-3e)
25 A (at <60 °C) at <= 440 V AC-1 for power circuit
9 A (at <60 °C) at <= 440 V AC-3e for power circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit
30 A 40 °C - 10 min for power circuit
61 A 40 °C - 1 min for power circuit
105 A 40 °C - 10 s for power circuit
210 A 40 °C - 1 s for power circuit
25 A (at 60 °C) for power circuit
CSA
EAC
UL
KC
DNV-GL
LROS (Lloyds register of shipping)
UKCA
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid
25 A gG at <= 690 V coordination type 1 for power circuit
20 A gG at <= 690 V coordination type 2 for power circuit
type mirror contact 1 NC conforming to IEC 60947-4-1
0.85...1.1 Uc (-40…60 °C):operational AC/DC
1...1.1 Uc (60…70 °C):operational AC/DC
Vibrations contactor closed (4 Gn, 5...300 Hz)
Shocks contactor open (10 Gn for 11 ms)
Shocks contactor closed (15 Gn for 11 ms)
1 hp at 230/240 V AC 60 Hz for 1 phase motors
2 hp at 200/208 V AC 60 Hz for 3 phases motors
2 hp at 230/240 V AC 60 Hz for 3 phases motors
5 hp at 460/480 V AC 60 Hz for 3 phases motors
7.5 hp at 575/600 V AC 60 Hz for 3 phases motors
Plate
0.2 W AC-3
0.2 W AC-3e
0.6 Mcycles 25 A AC-1 at Ue <= 440 V
2.4 Mcycles 8 A AC-3e at Ue <= 440 V
140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1
20...90 ms opening
1.5 ms on energisation between NC and NO contact
AC-3
AC-3e
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
60…70 °C with derating
EN/IEC 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
IEC 60335-1
The LC1D09KUE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 100 to 250VAC/DC coil is devised to address the requirements of trade buyers, such as electrical installers, electric engineers, upkeep firms, and primary equipment makers. LC1D09KUE provides outstanding durability and value for contractors in the energy management industry. This Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 100 to 250VAC/DC coil and other TeSyS Deca Contactors from Schneider Electric are procurable at the lowest cost and supply period through baltelec.eu, a reliable retailer catering to consultants in their acquisition needs.
Professionals who have purchased Schneider Electric TeSyS Deca Contactors have repeatedly extolled the creator's dependability. It has been indicated that the superior performance of LC1D09KUE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 100 to 250VAC/DC coil extends to a assortment of tasks. Its superior characteristics make it perfect choice for wide-ranging specifications, assuring the success of your industrial, tertiary, and automation ventures.
BaltElec team commits in accommodating industrial and tertiary professionals’ needs. We grasp the customized expectations and expectations of our customers in the realm. By partnering with BALTELEC, our partners access access to the optimal price and delivery schedule of premium products like LC1D09KUE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 100 to 250VAC/DC coil from Schneider Electric at the most competitive price. Authorized buyers take pleasure in extra discounts and expedited requests handling.
Seize the moment and procure LC1D09KUE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 100 to 250VAC/DC coil at our reliable and accessible online store. Don't delay in making this clever choice that guarantees the supreme quality and achieves the particular needs of customers like yourselves.
If you possess any doubts or concerns about LC1D09KUE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 100 to 250VAC/DC coil or any other Schneider Electric products, contact us or refer to our Assistance center section below. We have provided answers to frequent issues to advise you further in making an thoughtful decision about industrial and tertiary electrical components.
Remember, LC1D09KUE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 100 to 250VAC/DC coil from Schneider Electric is trustworthy, low-cost, and premier to other brands in the TeSyS Deca Contactors category. Make it a part of your setup at once. Acquire at BALTELEC, your faithful dealer for all your Schneider Electric.
In our Baltelec.eu e-commerce store you will locate Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 100 to 250VAC/DC coil - LC1D09KUE worth 61.55 €, which will be a safe and up-to-date solution for your desires. This goods is engineered by the Schneider Electric brand using the freshest technologies and meets the premier standards of protection and productivity. We supply things from the TeSyS Deca Contactors category that integrate resilience and utility, which is an first-rate election for various applications. Notwithstanding of whether you desire instruments for small fabrication or for experienced industrial use, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 100 to 250VAC/DC coil will be a dependable adjunct in your occupation.
Baltelec endeavors to make the buying process as effortless and fast as realizable for our purchasers. We offer detailed outlines and high-quality portrayals of Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 100 to 250VAC/DC coil so that you can make an enlightened choice. A team of maestros is always ready to help you with any doubts in the TeSyS Deca Contactors section involved to the selection and use of articles. We are convinced that Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 100 to 250VAC/DC coil will meet your wishes and become an important element of your equipment for just 61.55 €.
Popular Questions about LC1D09KUE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 100 to 250VAC/DC coil:
-
Why should I order LC1D09KUE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 100 to 250VAC/DC coil from Baltelec.eu online store?
When you buy LC1D09KUE from Baltelec online store, you obtain original high-quality Schneider Electric TeSyS Deca Contactors products at competitive prices and delivery period. Moreover, our partnersreceive further discounts and priority service.
-
How I make sure whether Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 100 to 250VAC/DC coil is appropriate for my technical requirements?
To make sure that LC1D09KUE is appropriate for your project, we provide comprehensive information concerning product's technical specifications, technical characteristics, and in some cases 3D models as well. You can access this information on the dedicated page of the device name. If you require additional help, our customer support representative is available to aid you in making an educated choice.
-
Which guarantee coverage is offered for Schneider Electric LC1D09KUE?
Baltelec.eu team stands for the quality of the items we deliver. The regular warranty coverage for Schneider Electric TeSyS Deca Contactors including Schneider Electric LC1D09KUE is 12 months. Nevertheless, it is subject according to the individual product, product category, and might be longer. You can locate comprehensive guarantee information on the Schneider Electric LC1D09KUE product page or by contacting our customer support representatives.
-
Can you offer global shipping for LC1D09KUE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 100 to 250VAC/DC coil including other Schneider Electric products?
Certainly. In addition to catering to Estonia, Latvia, Lithuania and other European Union countries, we offer worldwide shipping for Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 100 to 250VAC/DC coil. Please keep in mind that delivery options, costs, and delivery times might vary based on the destination. For bulk inquiries, kindly contact BaltElec sales representatives.
-
Do Schneider Electric MBC offered by Baltelec.eu meet global standards for safety and reliability?
Completely. All Schneider Electric products available at BALTELEC web store conform to international standards such as IEC 60898-1 standard and carry the CE mark. Such norms ensure that the items fulfill rigorous security, technical, dependability, and functional criteria.
-
Can Baltelec.eu offer assistance on incorporating renewable energy solutions, such as solar energy systems or wind power converters, into my projects?
Yes! BaltElec understands the significance of renewable energy integration within projects. Our team of experts can help you in picking the right Schneider Electric items, to incorporate them into your renewable energy solutions}. We can offer recommendations on integrating solar power systems, wind energy converters, and alternative eco-friendly options to maximize power generation and efficiency.
-
Do you have green options available within the TeSyS Deca Contactors category to encourage environmental sustainability?
Absolutely! BaltElec provides a wide range of eco-friendly solutions within the TeSyS Deca Contactors category that are in line with environmental sustainability objectives. Our top-quality Schneider Electric products, like the LC1D09KUE, are designed with energy conservation in mind. By using these products into your electrical system, you can maximize energy usage and reduce environmental impact. Additionally, we present affordable pricing for our green Schneider Electric products,, making them an budget-friendly choice for promoting sustainability.
-
Is Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 100 to 250VAC/DC coil offered by BALTELEC authentic?
Yes, we only provide genuine Schneider Electric products, including Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 100 to 250VAC/DC coil. We procure our products exclusively through legitimate distribution channels to assure their genuineness and superior performance.
