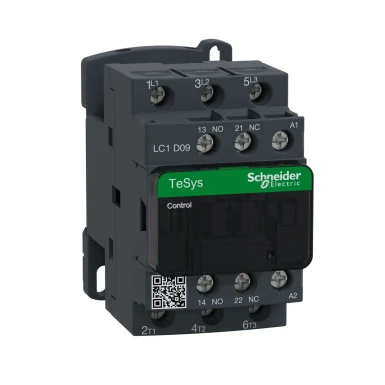

LC1D09G7 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 120V AC 50/60Hz coil - Schneider Electric
Motor control
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Signalling circuit: 690 V conforming to IEC 60947-1
Signalling circuit: 600 V CSA certified
Signalling circuit: 600 V UL certified
4 kW at 380...400 V AC 50/60 Hz (AC-3)
4 kW at 415...440 V AC 50/60 Hz (AC-3)
5.5 kW at 500 V AC 50/60 Hz (AC-3)
5.5 kW at 660...690 V AC 50/60 Hz (AC-3)
2.2 kW at 400 V AC 50/60 Hz (AC-4)
2.2 kW at 220...230 V AC 50/60 Hz (AC-3e)
4 kW at 380...400 V AC 50/60 Hz (AC-3e)
4 kW at 415...440 V AC 50/60 Hz (AC-3e)
5.5 kW at 500 V AC 50/60 Hz (AC-3e)
5.5 kW at 660...690 V AC 50/60 Hz (AC-3e)
25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Power circuit: <= 300 V DC
210 A 40 °C - 1 s for power circuit
30 A 40 °C - 10 min for power circuit
61 A 40 °C - 1 min for power circuit
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit
10 A (at 60 °C) for signalling circuit
DNV
GOST
LROS (Lloyds register of shipping)
UL
GL
BV
CCC
CSA
UKCA
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
25 A gG at <= 690 V coordination type 1 for power circuit
20 A gG at <= 690 V coordination type 2 for power circuit
type mirror contact 1 NC conforming to IEC 60947-4-1
0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz
0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz
1...1.1 Uc (60…70 °C):operational AC 50/60 Hz
Vibrations contactor closed (4 Gn, 5...300 Hz)
Shocks contactor open (10 Gn for 11 ms)
Shocks contactor closed (15 Gn for 11 ms)
7 VA 50 Hz cos phi 0.3 (at 20 °C)
2 hp at 200/208 V AC 50/60 Hz for 3 phases motors
2 hp at 230/240 V AC 50/60 Hz for 3 phases motors
5 hp at 460/480 V AC 50/60 Hz for 3 phases motors
7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors
0.33 hp at 115 V AC 50/60 Hz for 1 phase motors
Plate
0.2 W AC-3
0.2 W AC-3e
70 VA 50 Hz cos phi 0.75 (at 20 °C)
2 Mcycles 9 A AC-3 at Ue <= 440 V
2 Mcycles 9 A AC-3e at Ue <= 440 V
140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1
4...19 ms opening
1.5 ms on energisation between NC and NO contact
AC-1
AC-4
AC-3e
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
60…70 °C with derating
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
IEC 60335-1
The LC1D09G7 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 120V AC 50/60Hz coil is devised to cover the obligations of industry specialists, such as panel manufacturers, electric engineers, repair companies, and industry fabricators. LC1D09G7 supplies superior durability and value for specialists in the automation and control industry. This Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 120V AC 50/60Hz coil and other TeSyS Deca Contactors from Schneider Electric can be bought at the optimal price and lead time through BALTELEC website, an independent distributor fulfilling the needs of specialists in their obtaining needs.
Users who have chosen Schneider Electric TeSyS Deca Contactors have frequently acclaimed the producer's durability. It has been highlighted that the impressive productivity of LC1D09G7 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 120V AC 50/60Hz coil extends to a assortment of implementations. Its ideal characteristics make it great selection for diverse needs, guaranteeing the success of your industrial, tertiary, and automation contracts.
BaltElec team dedicates in fulfilling industrial and tertiary professionals’ needs. We get the distinct standards and preferences of our patrons in the domain. By working with our experts, your team acquire access to the best fees and delivery period of excellent products like LC1D09G7 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 120V AC 50/60Hz coil from Schneider Electric at an affordable price. Professional buyers with Baltelec account take advantage of additional savings and dedicated support.
Don't wait and acquire LC1D09G7 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 120V AC 50/60Hz coil at our dependable and accessible e-commerce site. Don't delay in making this sensible pick that warrants the paramount quality and caters to the customized standards of suppliers like your outfit.
If there are any inquiries or concerns about LC1D09G7 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 120V AC 50/60Hz coil or any other Schneider Electric products, call us or refer to our FAQ section section below. We have amassed answers to popular inquiries to facilitate you further in making an educated decision about industrial and tertiary electrical components.
Remember, LC1D09G7 - Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 120V AC 50/60Hz coil from Schneider Electric is credible, budget-friendly, and exceptional to alternative suppliers in the TeSyS Deca Contactors category. Don't hesitate to make it a part of your setup straight away. Purchase at BaltElec, your faithful dealer for all your Schneider Electric.
In our Baltelec.eu internet store you will come across Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 120V AC 50/60Hz coil - LC1D09G7 worth 56.09 €, which will be a constant and cutting-edge solution for your necessities. This thing is developed by the Schneider Electric brand using the advanced technologies and adheres to the leading standards of assurance and competence. We present commodities from the TeSyS Deca Contactors category that fuse strength and effectiveness, which is an excellent preference for various purposes. Notwithstanding of whether you demand tools for small manufacturing or for qualified industrial utilization, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 120V AC 50/60Hz coil will be a secure associate in your duty.
Baltelec endeavors to make the buying process as simple and fast as feasible for our shoppers. We offer detailed descriptions and high-quality pictures of Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 120V AC 50/60Hz coil so that you can make an informed choice. A team of masters is always ready to help you with any wonder in the TeSyS Deca Contactors section tied to the determining and use of items. We are assured that Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 120V AC 50/60Hz coil will meet your criteria and become an imperative element of your inventory for just 56.09 €.
