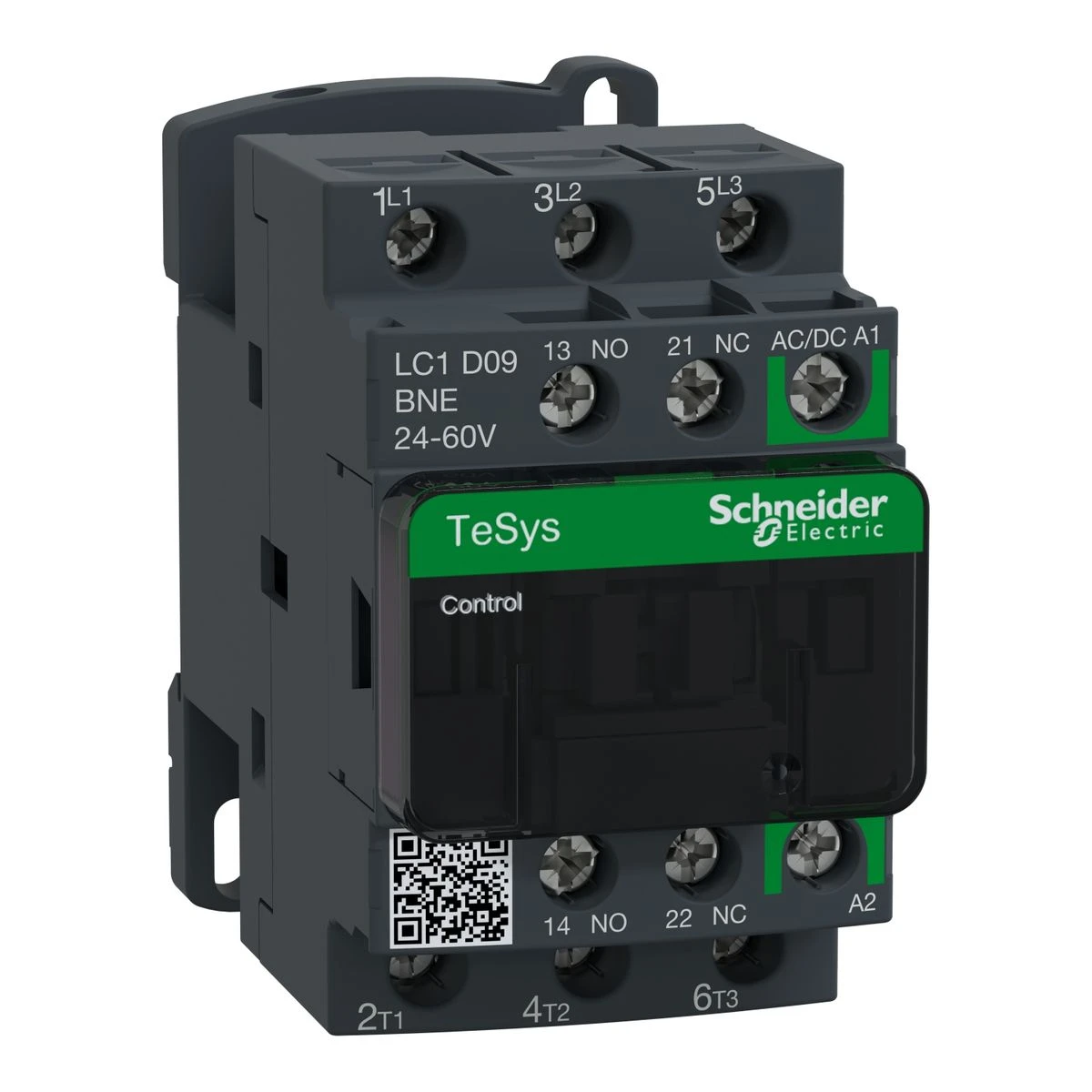

LC1D09BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24-60VAC/DC coil - Schneider Electric
Resistive load
TeSys Deca
24...60 V DC
Signalling circuit: 690 V conforming to IEC 60947-1
4 kW at 380...400 V AC 50 Hz (AC-3)
4 kW at 415 V AC 50 Hz (AC-3)
4 kW at 440 V AC 50 Hz (AC-3)
5.5 kW at 500 V AC 50 Hz (AC-3)
5.5 kW at 660...690 V AC 50 Hz (AC-3)
2.2 kW at 220...230 V AC 50 Hz (AC-3e)
4 kW at 380...400 V AC 50 Hz (AC-3e)
4 kW at 415 V AC 50 Hz (AC-3e)
4 kW at 440 V AC 50 Hz (AC-3e)
5.5 kW at 500 V AC 50 Hz (AC-3e)
5.5 kW at 660...690 V AC 50 Hz (AC-3e)
25 A (at <60 °C) at <= 440 V AC-1 for power circuit
9 A (at <60 °C) at <= 440 V AC-3e for power circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit
30 A 40 °C - 10 min for power circuit
61 A 40 °C - 1 min for power circuit
105 A 40 °C - 10 s for power circuit
210 A 40 °C - 1 s for power circuit
25 A (at 60 °C) for power circuit
CSA
EAC
UL
KC
DNV-GL
LROS (Lloyds register of shipping)
UKCA
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid
25 A gG at <= 690 V coordination type 1 for power circuit
20 A gG at <= 690 V coordination type 2 for power circuit
type mirror contact 1 NC conforming to IEC 60947-4-1
0.85...1.1 Uc (-40…60 °C):operational AC
0.8...1.1 Uc (-40…60 °C):operational DC
1...1.1 Uc (60…70 °C):operational AC/DC
Vibrations contactor closed (4 Gn, 5...300 Hz)
Shocks contactor open (10 Gn for 11 ms)
Shocks contactor closed (15 Gn for 11 ms)
1 hp at 230/240 V AC 60 Hz for 1 phase motors
2 hp at 200/208 V AC 60 Hz for 3 phases motors
2 hp at 230/240 V AC 60 Hz for 3 phases motors
5 hp at 460/480 V AC 60 Hz for 3 phases motors
7.5 hp at 575/600 V AC 60 Hz for 3 phases motors
Plate
0.2 W AC-3
0.2 W AC-3e
0.6 Mcycles 25 A AC-1 at Ue <= 440 V
2.4 Mcycles 8 A AC-3e at Ue <= 440 V
140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1
20...90 ms opening
1.5 ms on energisation between NC and NO contact
AC-3
AC-3e
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
conforming to IEC 60947-1 Annex Q category D exposure to damp heat
60…70 °C with derating
EN/IEC 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
IEC 60335-1
The LC1D09BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24-60VAC/DC coil is formulated to serve the necessities of industry experts, such as panel manufacturers, electrical installers, service providers, and primary equipment makers. LC1D09BNE supplies superb standards and value for contractors in the energy management industry. This Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24-60VAC/DC coil and other TeSyS Deca Contactors from Schneider Electric can be acquired at the unbeatable price and shipping time through BaltElec, a reputable provider meeting the needs of consultants in their collection needs.
Customers who have adopted Schneider Electric TeSyS Deca Contactors have frequently complimented the brand's solidity. It has been stated that the outstanding productivity of LC1D09BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24-60VAC/DC coil extends to a spectrum of applications. Its exceptional characteristics make it great selection to meet diverse demands, assuring the success of your industrial, tertiary, and automation ventures.
Our experts concentrates in addressing industrial and tertiary professionals’ needs. We understand the specific needs and standards of our customers in the market. By teaming up with our company, your organization gain access to the premier costs and stock of first-rate products like LC1D09BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24-60VAC/DC coil from Schneider Electric at a budget-friendly price. Our registered accounts appreciate further discounts and priority service.
Do not hesitate and order LC1D09BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24-60VAC/DC coil at our reliable and simple web store. Don't delay in making this savvy plan that warrants the greatest quality and adheres to the defined criteria of traders like your enterprise.
In case you have any questions or concerns about LC1D09BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24-60VAC/DC coil or any other Schneider Electric products, drop us a line or refer to our Frequently Asked Queries section below. We have compiled answers to routine concerns to assist you further in making an well-considered decision about industrial and tertiary electrical components.
Remember, LC1D09BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24-60VAC/DC coil from Schneider Electric is safe, low-cost, and better to other brands in the TeSyS Deca Contactors category. Make it a part of your electrical system this moment. Obtain at BaltElec, your respected merchant for all your Schneider Electric.
In our Baltelec.eu dot-com store you will discover Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24-60VAC/DC coil - LC1D09BNE worth 61.55 €, which will be a secure and innovative solution for your demands. This item is developed by the Schneider Electric brand using the freshest technologies and follows the premier standards of precaution and performance. We give products from the TeSyS Deca Contactors category that combine toughness and usefulness, which is an premium possibility for various operations. In spite of whether you call for instruments for small formation or for specialized industrial utilization, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24-60VAC/DC coil will be a reliable aide in your task.
Baltelec endeavors to make the acquiring process as easy and fast as viable for our clients. We offer detailed outlines and high-quality depictions of Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24-60VAC/DC coil so that you can make an educated choice. A team of connoisseurs is always ready to help you with any queries in the TeSyS Deca Contactors section tied to the electing and use of wares. We are sure that Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24-60VAC/DC coil will meet your prospects and become an key element of your hardware for just 61.55 €.
Common Questions about LC1D09BNE:
-
Why should I buy LC1D09BNE - Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24-60VAC/DC coil from baltelec.eu?
When you order Schneider Electric LC1D09BNE from baltelec.eu, you will receive genuine quality Schneider Electric TeSyS Deca Contactors products at advantageous prices and delivery period. Moreover, registered accountstake pleasure in additional savings and preferred assistance.
-
Can you advise if Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24-60VAC/DC coil suits for my contract?
To ensure that Schneider Electric LC1D09BNE is suitable for your drawings, we offer comprehensive information concerning product's technical specifications, features, and in some cases 3D models as well. You can find this data on the dedicated page of the device model. If you need more guidance, our customer service team is prepared to aid you in reaching an educated choice.
-
Which guarantee coverage is offered for Schneider Electric LC1D09BNE?
BALTELEC is committed to the reliability of the items we sell. The default guarantee coverage for Schneider Electric TeSyS Deca Contactors including LC1D09BNE is 12 months. Nonetheless, it varies based on the individual product, category, and may even be extended. You can find detailed warranty information on the Schneider Electric LC1D09BNE dedicated page or by getting in touch with our customer service team.
-
Can you provide international shipping for LC1D09BNE as well as other Schneider Electric items?
Certainly. In addition to catering to Estonia, Latvia, Lithuania and other European Union countries, we offer global shipping for Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24-60VAC/DC coil. Please note that shipping options, costs, and delivery times can vary depending on the destination. For complicated acquisitions, please consult Baltelec.eu sales representatives.
-
Do Schneider Electric MBC provided by BaltElec comply with global norms for security and quality?
Completely. All Schneider Electric products provided at BALTELEC web store meet international standards such as IEC 60898-1 standard and carry the CE mark. Such norms ensure that the products fulfill stringent security, technological, dependability, and functional requirements.
-
Can BALTELEC provide guidance on incorporating renewable energy solutions, such as solar power systems or wind power converters, into my projects?
Certainly! BaltElec understands the importance of clean energy integration within projects. Our group of professionals can assist you in picking the suitable Schneider Electric items, to integrate them into your renewable energy projects}. We can offer guidance on combining solar power systems, wind energy converters, and other sustainable options to optimize energy generation and efficiency.
-
Do you have green options available within the TeSyS Deca Contactors category to support green energy initiatives?
Certainly! BaltElec offers various green solutions in the category of TeSyS Deca Contactors that align with energy-saving goals. Our Schneider Electric products, such as the Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24-60VAC/DC coil, are designed with energy conservation in mind. By incorporating these products into your electrical system, you can maximize energy usage and lower environmental impact. Additionally, we provide competitive pricing for our green Schneider Electric products,, making them an budget-friendly choice for advocating sustainability.
-
Are Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24-60VAC/DC coil available by BALTELEC legitimate?
Yes, we solely sell genuine Schneider Electric products, such as Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24-60VAC/DC coil. We procure our products exclusively through authorized distribution channels to ensure their legitimacy and excellent quality.
