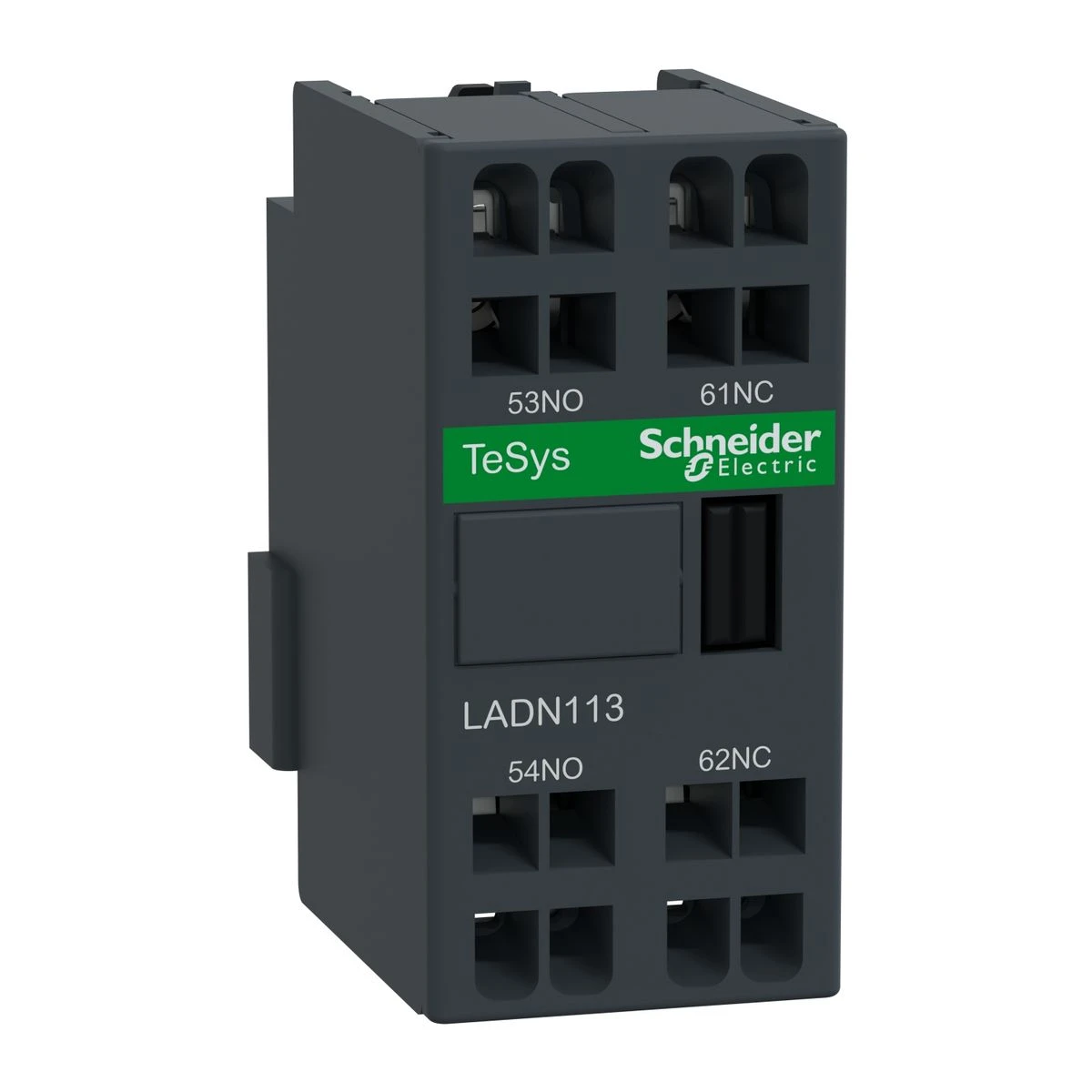

LADN113 - Auxiliary contact block, TeSys Deca, 1NO+1NC, front mounting, spring terminals - Schneider Electric

Expected in 2-4 weeks EAN: 3389110820997
LADN113 - Auxiliary contact block, TeSys Deca, 1NO+1NC, front mounting, spring terminals - Schneider Electric - Auxiliary contact block, TeSys Deca, 1NO+1NC, front mounting, spring terminals - Schneider Electric - 0
EAN: 3389110820997
LADN113 - Auxiliary contact block, TeSys Deca, 1NO+1NC, front mounting, spring terminals - Schneider Electric
20,77 € excl. VAT
25,76 € incl. VAT
Text About:
Auxiliary contact block, TeSys Deca, 1NO+1NC, front mounting, spring terminals - Schneider Electric
25,76 €
SPECIFICATIONS
Main
Range TeSys
TeSys Deca
name of the device LADN
type of product or equipment Bloc de contact auxiliaire
composition of the poles 1F+1O
Product Name TeSys D
TeSys Deca
[ui] rated insulation voltage 690 V se conformer à CEI 60947-5-1
600 V se conformer à UL
600 V se conformer à CSA
Complementary
[ie] rated operational current 6 A à 120 V AC-15
1,04 A à 690 V AC-15
0,55 A à 125 V DC-13
0,1 A à 600 V DC-13
[ue] rated operational voltage 690 V CA 25...400 Hz
range compatibility TeSys D CAD
TeSys D LC1D
TeSys Deca CAD
TeSys Deca LC1D
[ith] conventional thermal current 10 A à <60 °C)
allowable temporary current 100 A 60 °C 1s
120 A 60 °C 500 ms
140 A 60 °C 100 ms
Handle front plate colour 48 mm
mounting location Façade
minimum switching current 5 mA
connection mode Bornes à ressort 2 câble(s) 2,5 mm²souple sans extrémité de câble
Bornes à ressort 2 câble(s) 2,5 mm²rigide
contact operation Instantané
mechanical endurance 30 Mcycles
width (w) 26 mm
Colour Gris foncé
rated rms inrush power 140 A CA se conformer à CEI 60947-5-1
250 A CC se conformer à CEI 60947-5-1
depth 42 mm
minimum switching voltage 17 V
kind of protection Fusible gG 10 A
non-overlap time 1,5 ms sur désexcitation non-chevauchement entre contact NC et NO
1,5 ms sur excitation non-chevauchement entre contact NC et NO
Environment
environment characteristic Environnement normal
ip degree of protection IP20 se conformer à CEI 60529
operating altitude 3000 m
product certificates CB
UL
CSA
CCC
EAC
UKCA
operating ambient temperature -5…60 °C
standards EN/CEI 60947-5-1
UL 60947-5-1
CSA C22.2 No 60947-5-1
GB/T 14048.5
storage room temperature -60…80 °C
protective treatment TH se conformer à CEI 60068
insulation resistance > 10 MΩ
About this product

The LADN113 - Auxiliary contact block, TeSys Deca, 1NO+1NC, front mounting, spring terminals is created to cover the prerequisites of sector experts, such as installers, electrical technicians, management services, and Industry suppliers. LADN113 furnishes first-rate standards and profit for consultants in the automation and control industry. This Auxiliary contact block, TeSys Deca, 1NO+1NC, front mounting, spring terminals and other TeSyS Deca Contactors from Schneider Electric can be ordered at the optimal price and supply period through baltelec.eu, a trustworthy merchant aiding tradesmen in their supply needs.

Buyers who have purchased Schneider Electric TeSyS Deca Contactors have steadily extolled the maker's stability. It has been noted that the superior operation of LADN113 - Auxiliary contact block, TeSys Deca, 1NO+1NC, front mounting, spring terminals extends to a multitude of functions. Its elite components make it ideal solution for multiple purposes, promoting success in your industrial, tertiary, and automation efforts.

Our experts commits in addressing industrial and tertiary professionals’ needs. We grasp the unique needs and expectations of our buyers in the realm. By collaborating with our specialists, your company acquire access to the best price lists and stock of superior products like LADN113 - Auxiliary contact block, TeSys Deca, 1NO+1NC, front mounting, spring terminals from Schneider Electric at an attractive price. Baltelec account members receive extra discounts and top-tier service.

Seize the moment and secure LADN113 - Auxiliary contact block, TeSys Deca, 1NO+1NC, front mounting, spring terminals at our safe and intuitive web store. Don't delay in making this astute selection that promises the paramount quality and complies with the special standards of traders like your firm.

Should you experience any matters or concerns about LADN113 - Auxiliary contact block, TeSys Deca, 1NO+1NC, front mounting, spring terminals or any other Schneider Electric products, message us or refer to our Frequently Asked Queries section below. We have consolidated answers to routine questions to assist you further in making an enlightened decision about industrial and tertiary electrical components.

Remember, LADN113 - Auxiliary contact block, TeSys Deca, 1NO+1NC, front mounting, spring terminals from Schneider Electric is credible, value-priced, and high-quality to industry peers in the TeSyS Deca Contactors category. Feel free to make it a part of your installation immediately. Procure at baltele.eu, your faithful dealer for all your Schneider Electric.

In our Baltelec.eu online store you will encounter Auxiliary contact block, TeSys Deca, 1NO+1NC, front mounting, spring terminals - LADN113 worth 25.34 €, which will be a faithful and current solution for your requirements. This commodity is formulated by the Schneider Electric brand using the up-to-the-minute technologies and meets the premier standards of safety and effectiveness. We supply produce from the TeSyS Deca Contactors category that combine lastingness and operability, which is an excellent pick for various roles. Regardless of whether you crave instruments for small construction or for specialized industrial purpose, Auxiliary contact block, TeSys Deca, 1NO+1NC, front mounting, spring terminals will be a reliable facilitator in your undertaking.

Baltelec aims to make the getting process as comfortable and fast as realizable for our customers. We offer detailed explanations and high-quality depictions of Auxiliary contact block, TeSys Deca, 1NO+1NC, front mounting, spring terminals so that you can make an educated choice. A team of virtuosos is always ready to help you with any enquiries in the TeSyS Deca Contactors section connected to the determining and use of materials. We are convinced that Auxiliary contact block, TeSys Deca, 1NO+1NC, front mounting, spring terminals will meet your anticipations and become an important element of your setup for just 25.34 €.
