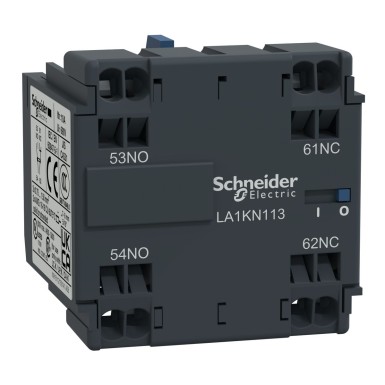

LA1KN113 - Auxiliary contact block, TeSys K, 1NO+1NC, front mounting, spring terminals - Schneider Electric

Pending restock EAN: 3389110244922

EAN: 3389110244922

45,30 € excl. VAT

56,17 € incl. VAT

Text About:

Auxiliary contact block, TeSys K, 1NO+1NC, front mounting, spring terminals - Schneider Electric

In cart

56,17 €

SPECIFICATIONS

Main

Range TeSys

name of the device LA1

type of product or equipment Bloc de contact auxiliaire

composition of the poles 1F+1O

Product Name TeSys K

[ui] rated insulation voltage 690 V se conformer à CEI 60947-5-1
600 V se conformer à UL 60947-5-1
600 V se conformer à CSA C22.2 No 60947-5-1

Complementary

[ue] rated operational voltage 690 V CA 25...400 Hz

range compatibility TeSys K LC1K
TeSys K CA2K
TeSys K CA3K
TeSys K CA4K

[ith] conventional thermal current 10 A à <50 °C)

caliber of the fuse to be associated 10 A gG à <= 690 V se conformer à CEI 60947

allowable temporary current 80 A 1s
60 A 500 ms
110 A 100 ms

Handle front plate colour 30 mm

mounting location Façade

minimum switching current 5 mA

product weight 0,045 kg

non-overlapping distance 0,5 mm

connection mode Bornes à ressort 1 câble(s) 0,75…1,5 mm²souple sans extrémité de câble
Bornes à ressort 1 câble(s) 0,75…1,5 mm²rigide

contact operation Instantané

width (w) 38 mm

rated rms inrush power 110 A à <= 690 V CA se conformer à CEI 60947

depth 35 mm

minimum switching voltage 17 V

Environment

environment characteristic Environnement normal

ip degree of protection IP20 se conformer à CEI 60529

operating altitude 2000 m

product certificates certificat CEI CE
UL
CSA
CCC

operating ambient temperature -25…50 °C

standards EN/CEI 60947-5-1
UL 60947-5-1
CSA C22.2 No 60947-5-1
GB/T 14048.5

storage room temperature -50…80 °C

protective treatment TC se conformer à CEI 60068

insulation resistance > 10 MΩ

Q&A and product info

Contact Us

Professional sales of electrical equipment in Estonia, Latvia, Lithuania, and Finland. Certified low-voltage components, circuit breakers, contactors, and industrial automation solutions. Same-day quotations and fast delivery across the Baltics and Finland.

+372 5326 4976

Mon–Fri 9:00–17:00

info@baltelec.eu

Response within 2 hours

Schneider Electric LA1KN113 is a industrial TeSyS K Contactors product designed for enterprises. BaltElec specializes in volume-based sales and product distribution in Estonia, Latvia, Lithuania, and Finland.

Authentic Schneider Electric product, certificates and compliance documents available.
Volume-based pricing – request a quote for larger quantities (MOQ may apply).
Fast delivery across the Baltics and Finland; cooperation with trusted couriers.
Technical support and selection assistance based on your requirements.

Price: Request a project quote. The price depends on quantity, delivery, and payment terms.

TeSyS K Contactors specifications may vary by configuration. For an exact match, please send us your requirements or check the technical data sheet.

FAQ for LA1KN113 - Schneider Electric

Does your company provide wholesale prices for LA1KN113?

Yes, project discounts are available. Send us a list of required quantities (e.g. Schneider Electric, LA1KN113, 5 pcs) and we’ll prepare a personalized quotation.
What is the availability and lead time for LA1KN113 in the Baltics and Finland?

We provide fast turnaround for deliveries to Estonia, Latvia, Lithuania, and Finland. Exact lead time depends on quantity and batch availability, confirmed upon quotation.
Is LA1KN113 by Schneider Electric an original product?

Yes. We only sell Schneider Electric authentic products with manufacturer’s warranty. Compliance certificates are available on request.
Is LA1KN113 suitable for my TeSyS K Contactors project?

We help confirm compatibility quickly. Please provide parameters (voltage, current, environment, standards), and we’ll compare them to Schneider Electric technical requirements.
How does shipping and invoicing work?

We deliver via courier to Estonia, Latvia, Lithuania, and Finland. Invoicing is done according to agreement; bulk purchases are priced individually.
