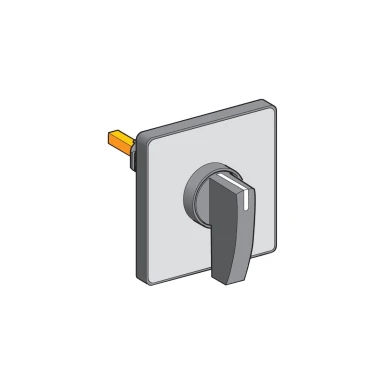

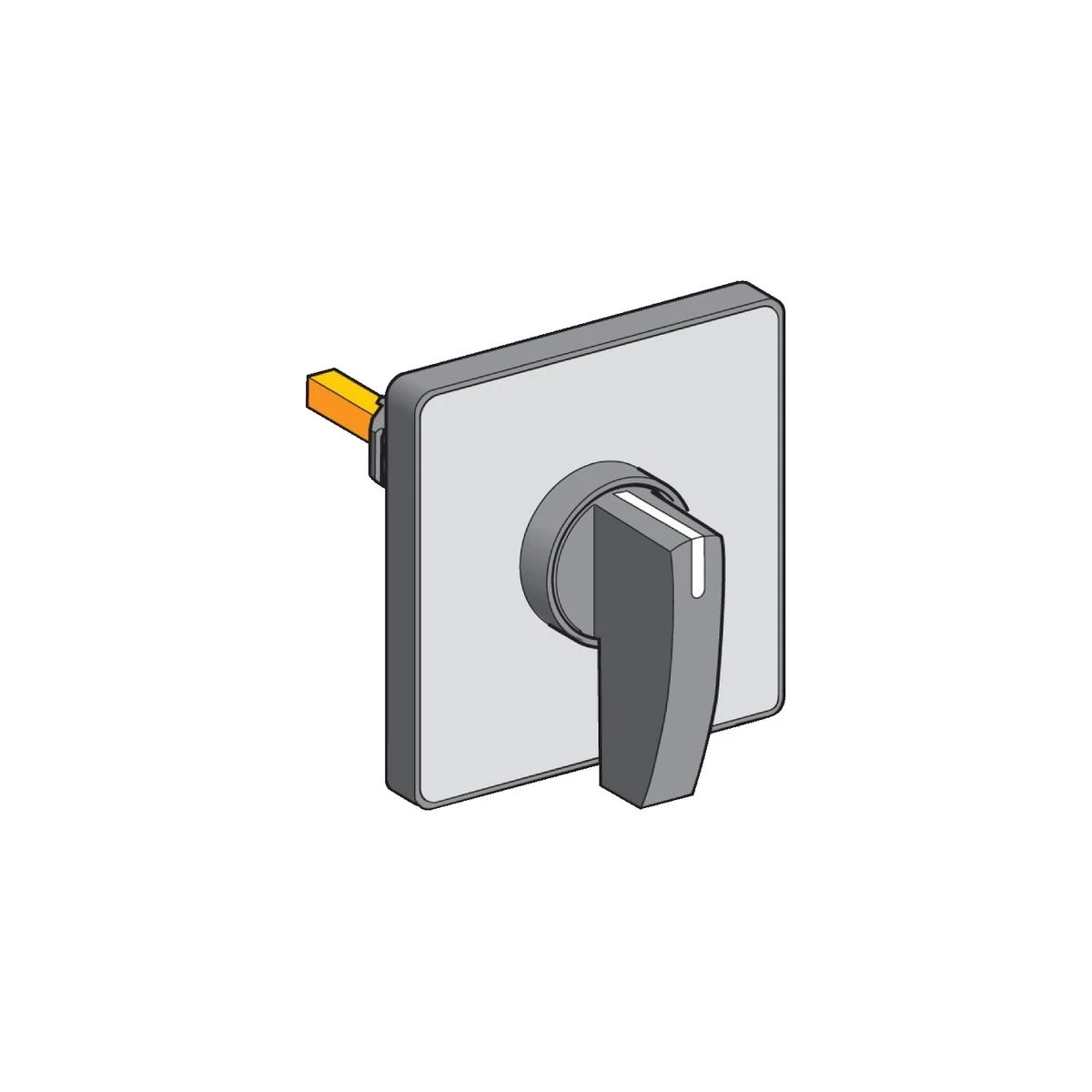

KDD1H - Cam switch operating head, Harmony K, Ш 22mm, plastic, 60x60mm, black handle 42mm - Schneider Electric
Expected in 2-4 weeks
10,61 € excl. VAT
12,94 € incl. VAT
Text About:
Cam switch operating head, Harmony K, Ш 22mm, plastic, 60x60mm, black handle 42mm - Schneider Electric
SPECIFICATIONS
Main
Cam switch head type
With front plate 60 x 60 mm
Presentation of legend
Without
component name
KDD
Complementary
product compatibility
Front mounting bodies 12 and 20 A by Ø 22 mm hole
length [l]
42 mm
Product or component type
Cam switch operating head
Cad overall depth
77 mm
Cad overall height
60 mm
Cad overall width
60 mm
Rotary handle padlocking
Without
Type of operator
Black handle, length = 42 mm
Net weight
0.053 kg
mechanical durability
1000000 cycles
Shock resistance
30 gn conforming to IEC 68-2-27
Environment
Ambient air temp for storage/transportation
-40…70 °C
ip degree of protection
IP65 conforming to IEC 529
IP65 conforming to NF C 20-010
IP65 conforming to NF C 20-010
Range of product
Harmony Series K
ambient air temperature for operation
-25…55 °C
vibration resistance
5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)
protective treatment
TC
