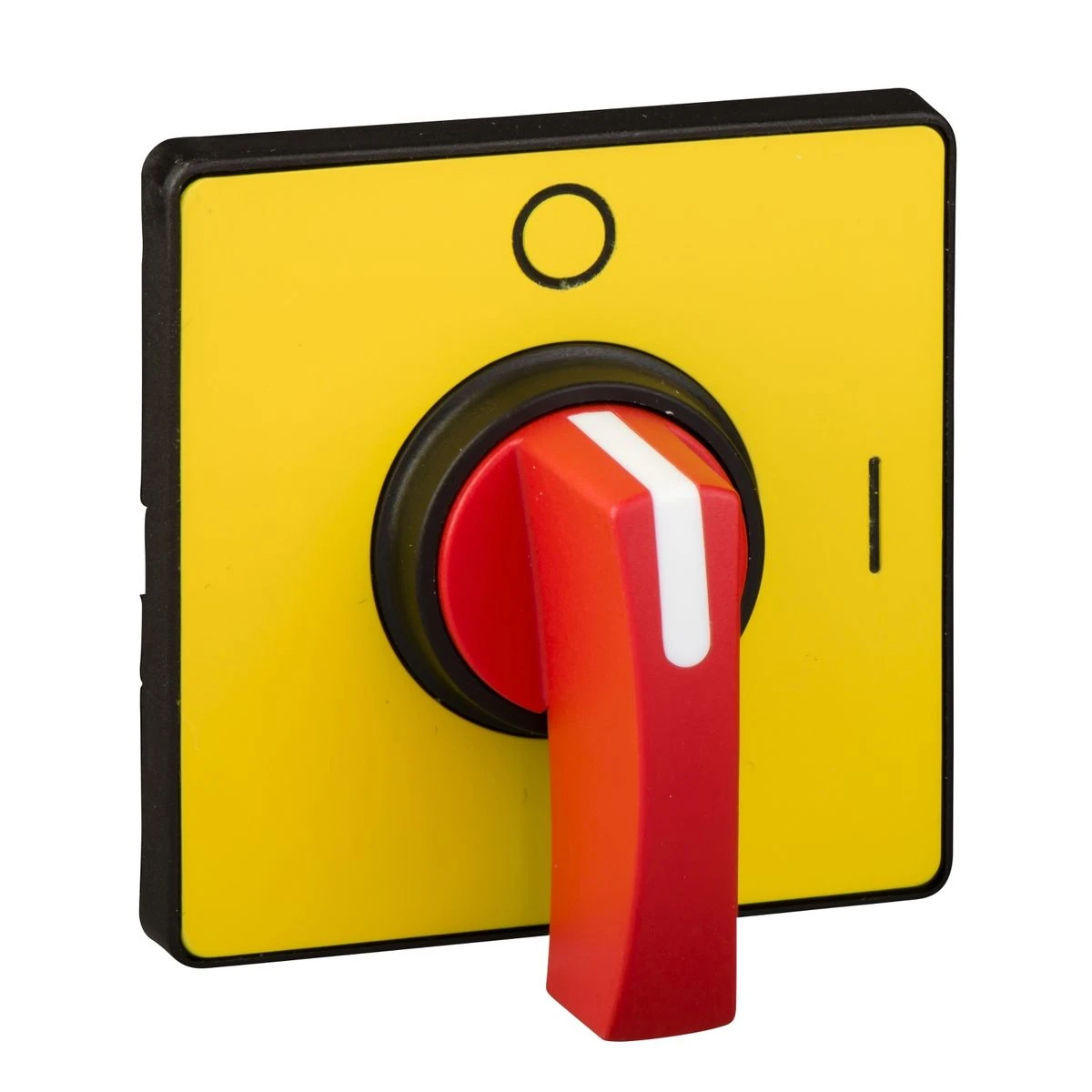

KCD1MH - Cam switch operating head, Harmony K, Ш 22mm, plastic, 60x60mm, yellow legend, red handle, 90° - Schneider Electric

Expected in 2-4 weeks

18,28 € excl. VAT

22,30 € incl. VAT

Text About:

Cam switch operating head, Harmony K, Ш 22mm, plastic, 60x60mm, yellow legend, red handle, 90° - Schneider Electric

In cart

22,30 €

SPECIFICATIONS

Main

Cam switch head type With front plate 60 x 60 mm

Presentation of legend With yellow legend, 0 - 1

component name KCD

Complementary

product compatibility Front mounting bodies 12 and 20 A by Ø 22 mm hole

length [l] 42 mm

Product or component type Cam switch operating head

switching angle 90 °

Cad overall depth 77 mm

Cad overall height 60 mm

Cad overall width 60 mm

Rotary handle padlocking Without

Type of operator Red handle, length = 42 mm

Net weight 0.053 kg

mechanical durability 1000000 cycles

Shock resistance 30 gn conforming to IEC 68-2-27

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP65 conforming to IEC 529
IP65 conforming to NF C 20-010

Range of product Harmony Series K

ambient air temperature for operation -25…55 °C

vibration resistance 5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)

protective treatment TC
