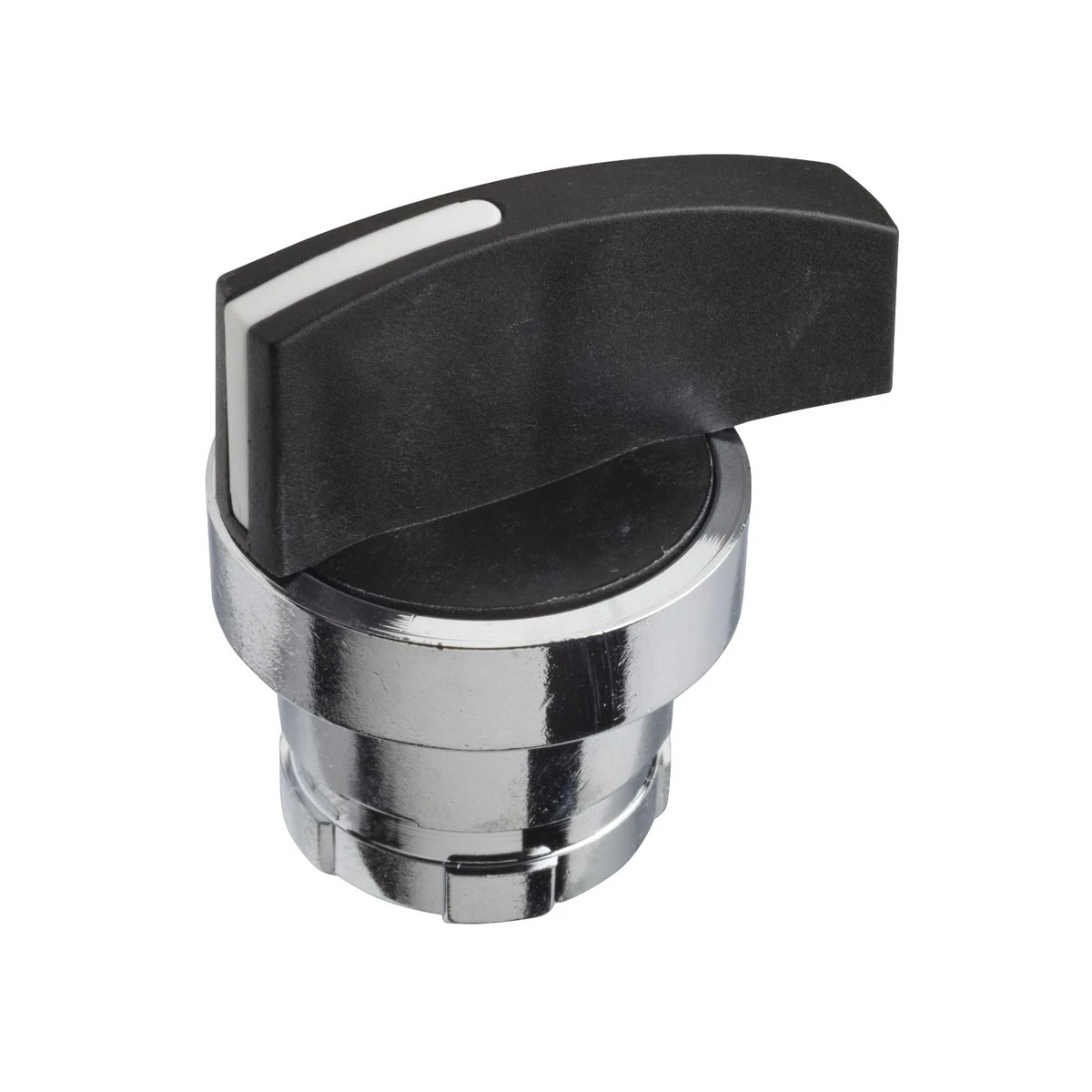

KAXZ1C12 - Cam switch operating head, Harmony K, Ш 22mm, metal, circular Ш 29mm, long black handle - Schneider Electric
Expected in 2-4 weeks
10,48 €
Text About:
Cam switch operating head, Harmony K, Ш 22mm, metal, circular Ш 29mm, long black handle - Schneider Electric
SPECIFICATIONS
Main
Cam switch head type
With bezel Ø 28.5 mm, metal
Presentation of legend
With mat black legend
component name
KAX
Complementary
product compatibility
Front mounting bodies 12 and 20 A by Ø 22 mm hole
compatibility code
KAX
Product or component type
Cam switch operating head
Cad overall depth
25 mm
Cad overall height
34 mm
Cad overall width
29 mm
Rotary handle padlocking
Without
Type of operator
Black long handle
Net weight
0.04 kg
mechanical durability
1000000 cycles
Shock resistance
30 gn conforming to IEC 68-2-27
Environment
Ambient air temp for storage/transportation
-40…70 °C
ip degree of protection
IP65 conforming to IEC 529
IP65 conforming to NF C 20-010
IP65 conforming to NF C 20-010
Range of product
Harmony Series K
ambient air temperature for operation
-25…55 °C
vibration resistance
5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)
protective treatment
TC
