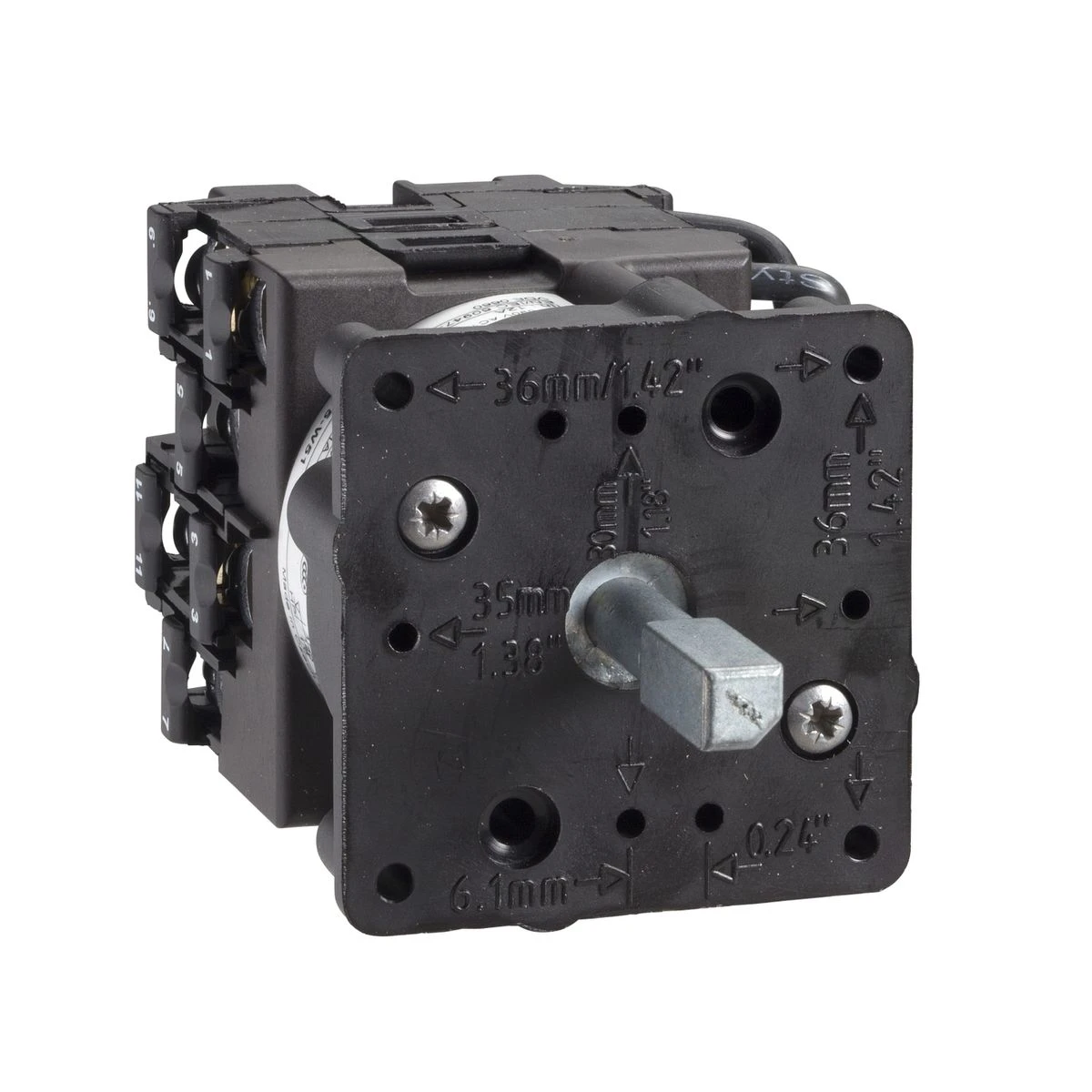

K1D030BL - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 10 positions without 0 position, 45°, 12A - Schneider Electric

Expected in 2-4 weeks
K1D030BL - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 10 positions without 0 position, 45°, 12A - Schneider Electric - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 10 positions without 0 position, 45°, 12A - Schneider Electric - 0
K1D030BL - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 10 positions without 0 position, 45°, 12A - Schneider Electric
39,26 € excl. VAT
48,68 € incl. VAT
Text About:
Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 10 positions without 0 position, 45°, 12A - Schneider Electric
48,68 €
SPECIFICATIONS
Main
Cam switch function BCD encoded output switch
[ithe] thermal current under enclosure 10 A
Off position Without Off position
Sub-assembly composition Contact blocks + fixing plate
[ui] rated insulation voltage 690 V (pollution degree 3) conforming to IEC 60947-1
Switching positions Right: 0° - 30° - 60° - 90° - 120° - 150° - 180° - 210° - 240° - 270°
component name K1
Complementary
[ie] rated operational current ac 1.8 A at 690 V AC-3 3 phases conforming to IEC 947-3
2.8 A at 500 V AC-3 3 phases conforming to IEC 947-3
2.8 A at 690 V AC-23A 3 phases conforming to IEC 947-3
3.3 A at 400 V AC-3 3 phases conforming to IEC 947-3
3.8 A at 500 V AC-23A 3 phases conforming to IEC 947-3
4.6 A at 230 V AC-3 3 phases conforming to IEC 947-3
4.8 A at 400 V AC-23A 3 phases conforming to IEC 947-3
5.6 A at 230 V AC-23A 3 phases conforming to IEC 947-3
1 A at 500 V AC-15 conforming to IEC 947-5-1
2 A at 400 V AC-15 conforming to IEC 947-5-1
3 A at 230 V AC-15 conforming to IEC 947-5-1
[ith] conventional thermal current 12 A
Product certifications CSA 240 V 1 hp 1 phase
CSA 240 V 3 hp 3 phases 2 -pole(s)
UL 240 V 1 hp 3 phases
UL 240 V 0.33 hp 1 phase 2 -pole(s)
Product or component type Cam switch body
[uimp] rated impulse withstand voltage 4 kV in isolating function
6 kV conforming to IEC 947-1
mounting location Front
switching angle 30 °
bezel material Plastic
contact operation Slow-break
Fixing mode Multifixing
rated operational power in w 10500 W AC-21, 500 - 660 V 3 phases conforming to IEC 947-3
1100 W AC-3, 230 V 3 phases conforming to IEC 947-3
1500 W AC-23A, 230 V 3 phases conforming to IEC 947-3
1500 W AC-3, 400 V 1 phase conforming to IEC 947-3
1500 W AC-3, 400 V 3 phases conforming to IEC 947-3
1500 W AC-3, 500 V 3 phases conforming to IEC 947-3
1500 W AC-3, 690 V 3 phases conforming to IEC 947-3
2200 W AC-23A, 400 V 3 phases conforming to IEC 947-3
2200 W AC-23A, 500 V 3 phases conforming to IEC 947-3
2200 W AC-23A, 690 V 3 phases conforming to IEC 947-3
4800 W AC-21, 230 V 3 phases conforming to IEC 947-3
600 W AC-3, 230 V 1 phase conforming to IEC 947-3
8300 W AC-21, 400 V 3 phases conforming to IEC 947-3
Net weight 0.126 kg
mechanical durability 1000000 cycles
Number of decimal 10
electrical durability 1000000 cycles AC-15
1000000 cycles AC-21
500000 cycles AC-23
500000 cycles AC-3
Positive opening With
electrical connection Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²
Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²
Maximum operating rate 2.5 cyc/mn AC-21
2.5 cyc/mn AC-23
2.5 cyc/mn AC-3
8.333 cyc/mn AC-15
Short-circuit current 10000 A
Shock resistance 30 gn conforming to IEC 68-2-27
Short-circuit protection 16 A cartridge fuse, type gG
Environment
Ambient air temp for storage/transportation -40…70 °C
Range of product Harmony K
ambient air temperature for operation -25…55 °C
overvoltage category Class II conforming to IEC 536
Class II conforming to NF C 20-030
standards EN 60947-3 for power circuit
EN 60947-5-1 for control circuit
IEC 60947-3 for power circuit
IEC 60947-5-1 for control circuit
CENELEC EN 50013
vibration resistance 5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)
protective treatment TC
About this product

The K1D030BL - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 10 positions without 0 position, 45°, 12A is developed to accommodate the requirements of trade buyers, such as control panel builders, electric engineers, support service firms, and Original Equipment manufacturers. K1D030BL supplies outstanding quality and advantages for developers in the electromechanical industry. This Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 10 positions without 0 position, 45°, 12A and other Harmony K from Schneider Electric are accessible at the most competitive price and lead time through BaltElec, a reputable purveyor meeting the needs of tradesmen in their obtaining needs.

Clients who have selected Schneider Electric Harmony K have steadily lauded the producer's dependability. It has been noted that the remarkable efficiency of K1D030BL - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 10 positions without 0 position, 45°, 12A extends to a array of functions. Its supreme attributes make it proper pick for various requirements, promoting success in your industrial, tertiary, and automation efforts.

BALTELEC commits in fulfilling industrial and tertiary professionals’ needs. We comprehend the particular needs and requirements of our clients in the realm. By collaborating with BaltElec, your company receive access to the best price and lead time of high-quality products like K1D030BL - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 10 positions without 0 position, 45°, 12A from Schneider Electric at a reasonable price. Baltelec account members appreciate more savings and first-class attention.

Do not hesitate and purchase K1D030BL - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 10 positions without 0 position, 45°, 12A at our protected and hassle-free e-commerce site. Don't delay in making this sensible investment that assures the paramount quality and fulfills the individual specifications of clients like your team.

When you have any doubts or concerns about K1D030BL - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 10 positions without 0 position, 45°, 12A or any other Schneider Electric products, message us or refer to our Information center section below. We have put together answers to regular doubts to assist you further in making an well-considered decision about industrial and tertiary electrical components.

Remember, K1D030BL - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 10 positions without 0 position, 45°, 12A from Schneider Electric is reliable, wallet-friendly, and high-quality to other brands in the Harmony K category. Make it a part of your solution this moment. Order at Baltelec e-shop, your reliable retailer for all your professional electrical equipment and automation needs.

In our Baltelec.eu dot-com store you will find Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 10 positions without 0 position, 45°, 12A - K1D030BL worth 47.90 €, which will be a reliable and fashionable solution for your wants. This commodity is fabricated by the Schneider Electric brand using the latest technologies and obeys the premier standards of precaution and efficacy. We offer articles from the Harmony K category that fuse resilience and efficacy, which is an excellent preference for various operations. Without consideration of whether you want gear for small construction or for competent industrial application, Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 10 positions without 0 position, 45°, 12A will be a faithful facilitator in your task.

Baltelec strives to make the purchasing process as uncomplicated and fast as realizable for our buyers. We offer detailed explanations and high-quality depictions of Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 10 positions without 0 position, 45°, 12A so that you can make an well-informed choice. A team of professionals is always ready to help you with any questions in the Harmony K section tied to the nomination and use of merchandise. We are certain that Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 10 positions without 0 position, 45°, 12A will meet your requirements and become an essential element of your kit for just 47.90 €.
