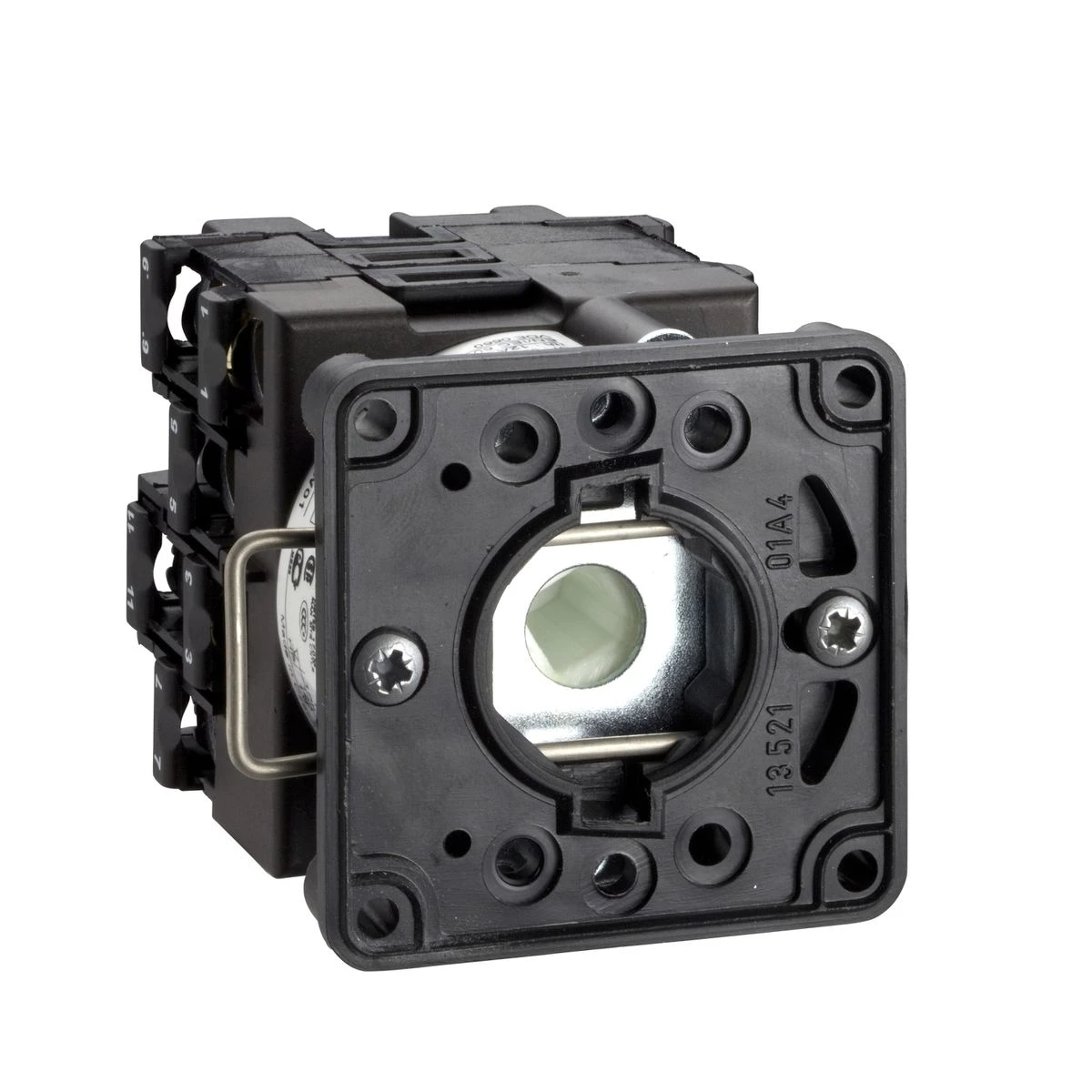

K1D030B - Cam switch body for BCD encoded withoutput switch, Harmony K, Ш 22mm, plastic, 1 pole, 10 positions without 0 position, 45°, 12A - Schneider Electric

Expected in 2-4 weeks
K1D030B - Cam switch body for BCD encoded withoutput switch, Harmony K, Ш 22mm, plastic, 1 pole, 10 positions without 0 position, 45°, 12A - Schneider Electric - Cam switch body for BCD encoded withoutput switch, Harmony K, Ш 22mm, plastic, 1 pole, 10 positions without 0 position, 45°, 12A - Schneider Electric - 0
K1D030B - Cam switch body for BCD encoded withoutput switch, Harmony K, Ш 22mm, plastic, 1 pole, 10 positions without 0 position, 45°, 12A - Schneider Electric
35,49 € excl. VAT
44,01 € incl. VAT
Text About:
Cam switch body for BCD encoded withoutput switch, Harmony K, Ш 22mm, plastic, 1 pole, 10 positions without 0 position, 45°, 12A - Schneider Electric
44,01 €
SPECIFICATIONS
Main
Cam switch function BCD encoded output switch
[ithe] thermal current under enclosure 10 A
Off position Without Off position
Sub-assembly composition Contact blocks + fixing plate
[ui] rated insulation voltage 690 V (pollution degree 3) conforming to IEC 60947-1
Switching positions Right: 0° - 30° - 60° - 90° - 120° - 150° - 180° - 210° - 240° - 270°
component name K1
Complementary
[ie] rated operational current ac 1.8 A at 690 V AC-3 3 phases conforming to IEC 947-3
2.8 A at 500 V AC-3 3 phases conforming to IEC 947-3
2.8 A at 690 V AC-23A 3 phases conforming to IEC 947-3
3.3 A at 400 V AC-3 3 phases conforming to IEC 947-3
3.8 A at 500 V AC-23A 3 phases conforming to IEC 947-3
4.6 A at 230 V AC-3 3 phases conforming to IEC 947-3
4.8 A at 400 V AC-23A 3 phases conforming to IEC 947-3
5.6 A at 230 V AC-23A 3 phases conforming to IEC 947-3
1 A at 500 V AC-15 conforming to IEC 947-5-1
2 A at 400 V AC-15 conforming to IEC 947-5-1
3 A at 230 V AC-15 conforming to IEC 947-5-1
[ith] conventional thermal current 12 A
Product certifications CSA 240 V 1 hp 1 phase
CSA 240 V 3 hp 3 phases 2 -pole(s)
UL 240 V 1 hp 3 phases
UL 240 V 0.33 hp 1 phase 2 -pole(s)
Product or component type Cam switch body
[uimp] rated impulse withstand voltage 4 kV in isolating function
6 kV conforming to IEC 947-1
mounting location Front
switching angle 30 °
bezel material Plastic
contact operation Slow-break
Fixing mode Ø 22 mm hole
rated operational power in w 10500 W AC-21, 500 - 660 V 3 phases conforming to IEC 947-3
1100 W AC-3, 230 V 3 phases conforming to IEC 947-3
1500 W AC-23A, 230 V 3 phases conforming to IEC 947-3
1500 W AC-3, 400 V 1 phase conforming to IEC 947-3
1500 W AC-3, 400 V 3 phases conforming to IEC 947-3
1500 W AC-3, 500 V 3 phases conforming to IEC 947-3
1500 W AC-3, 690 V 3 phases conforming to IEC 947-3
2200 W AC-23A, 400 V 3 phases conforming to IEC 947-3
2200 W AC-23A, 500 V 3 phases conforming to IEC 947-3
2200 W AC-23A, 690 V 3 phases conforming to IEC 947-3
4800 W AC-21, 230 V 3 phases conforming to IEC 947-3
600 W AC-3, 230 V 1 phase conforming to IEC 947-3
8300 W AC-21, 400 V 3 phases conforming to IEC 947-3
Net weight 0.11 kg
mechanical durability 1000000 cycles
Number of decimal 10
electrical durability 1000000 cycles AC-15
1000000 cycles AC-21
500000 cycles AC-23
500000 cycles AC-3
Positive opening With
electrical connection Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²
Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²
Maximum operating rate 2.5 cyc/mn AC-21
2.5 cyc/mn AC-23
2.5 cyc/mn AC-3
8.333 cyc/mn AC-15
Short-circuit current 10000 A
Shock resistance 30 gn conforming to IEC 68-2-27
Short-circuit protection 16 A cartridge fuse, type gG
Environment
Ambient air temp for storage/transportation -40…70 °C
Range of product Harmony K
ambient air temperature for operation -25…55 °C
overvoltage category Class II conforming to IEC 536
Class II conforming to NF C 20-030
standards EN 60947-3 for power circuit
EN 60947-5-1 for control circuit
IEC 60947-3 for power circuit
IEC 60947-5-1 for control circuit
CENELEC EN 50013
vibration resistance 5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)
protective treatment TC
About this product

The K1D030B - Cam switch body for BCD encoded withoutput switch, Harmony K, Ш 22mm, plastic, 1 pole, 10 positions without 0 position, 45°, 12A is created to respond to the needs of trade buyers, such as installers, circuit experts, maintenance service providers, and Industry suppliers. K1D030B delivers exceptional efficiency and gain for professionals in the automation and control industry. This Cam switch body for BCD encoded withoutput switch, Harmony K, Ш 22mm, plastic, 1 pole, 10 positions without 0 position, 45°, 12A and other Harmony K from Schneider Electric are available the best price and fulfillment period through BALTELEC website, a credible retailer catering to professionals in their collection needs.

Contractors who have selected Schneider Electric Harmony K have regularly approved the maker's soundness. It has been indicated that the outstanding functionality of K1D030B - Cam switch body for BCD encoded withoutput switch, Harmony K, Ш 22mm, plastic, 1 pole, 10 positions without 0 position, 45°, 12A extends to a multitude of utilizations. Its elite elements make it suitable for multiple purposes, ensuring your industrial, tertiary and automation projects success.

BALTELEC centers in accommodating industrial and tertiary professionals’ needs. We grasp the individual criteria and requirements of our buyers in the market. By cooperating with Baltelec team, your team secure access to the superior price and availability of high-quality products like K1D030B - Cam switch body for BCD encoded withoutput switch, Harmony K, Ш 22mm, plastic, 1 pole, 10 positions without 0 position, 45°, 12A from Schneider Electric at cost-effective price. Registered users take advantage of additional savings and expedited requests handling.

Begin today and procure K1D030B - Cam switch body for BCD encoded withoutput switch, Harmony K, Ш 22mm, plastic, 1 pole, 10 positions without 0 position, 45°, 12A at our protected and intuitive platform. Don't delay in making this shrewd investment that ensures the paramount quality and addresses the particular expectations of suppliers like your enterprise.

In case you have any uncertainties or concerns about K1D030B - Cam switch body for BCD encoded withoutput switch, Harmony K, Ш 22mm, plastic, 1 pole, 10 positions without 0 position, 45°, 12A or any other Schneider Electric products, call us or refer to our Support section section below. We have brought together answers to routine matters to assist you further in making an knowledgeable decision about industrial and tertiary electrical components.

Remember, K1D030B - Cam switch body for BCD encoded withoutput switch, Harmony K, Ш 22mm, plastic, 1 pole, 10 positions without 0 position, 45°, 12A from Schneider Electric is sure, inexpensive, and outstanding to other manufacturers in the Harmony K category. Make it a part of your setup now. Snap up at Baltelec e-shop, your steady distributor for all your Schneider Electric.

In our Baltelec.eu online store you will identify Cam switch body for BCD encoded withoutput switch, Harmony K, Ш 22mm, plastic, 1 pole, 10 positions without 0 position, 45°, 12A - K1D030B worth 43.30 €, which will be a dependable and new solution for your demands. This thing is engineered by the Schneider Electric brand using the most recent technologies and conforms to the optimal standards of assurance and productivity. We supply products from the Harmony K category that combine longevity and practicality, which is an exceptional election for various roles. In spite of whether you demand equipment for small generation or for expert industrial utilization, Cam switch body for BCD encoded withoutput switch, Harmony K, Ш 22mm, plastic, 1 pole, 10 positions without 0 position, 45°, 12A will be a dependable adjunct in your duty.

Baltelec attempts to make the securing process as accessible and fast as workable for our patrons. We offer detailed narratives and high-quality shots of Cam switch body for BCD encoded withoutput switch, Harmony K, Ш 22mm, plastic, 1 pole, 10 positions without 0 position, 45°, 12A so that you can make an informed choice. A team of virtuosos is always ready to help you with any questions in the Harmony K section associated to the choice and use of equipment. We are sure that Cam switch body for BCD encoded withoutput switch, Harmony K, Ш 22mm, plastic, 1 pole, 10 positions without 0 position, 45°, 12A will meet your demands and become an key element of your tools for just 43.30 €.
