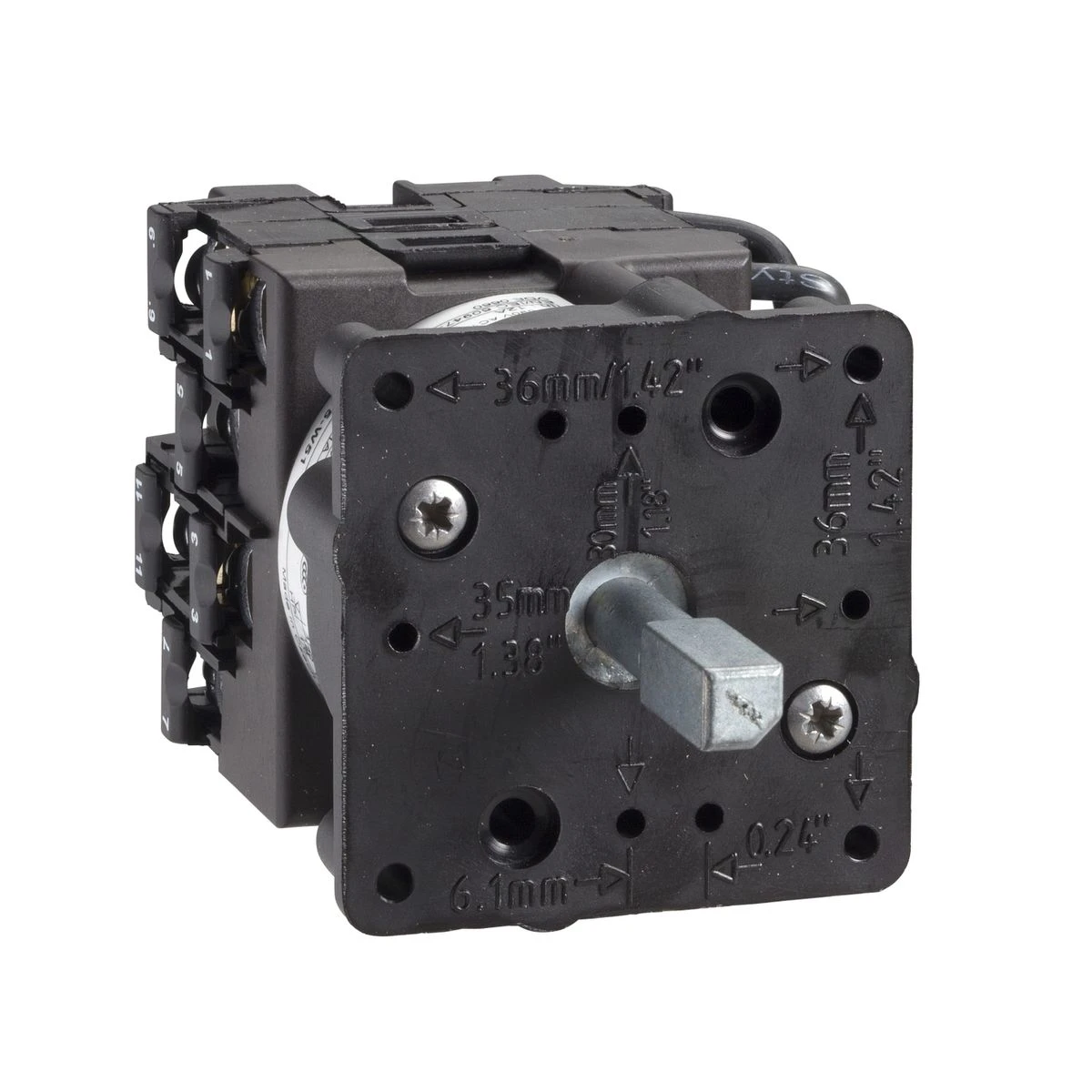

K1C005BL - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 5 positions, 45°, 12A - Schneider Electric

Expected in 2-4 weeks
K1C005BL - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 5 positions, 45°, 12A - Schneider Electric - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 5 positions, 45°, 12A - Schneider Electric - 0
K1C005BL - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 5 positions, 45°, 12A - Schneider Electric
14,66 € excl. VAT
18,18 € incl. VAT
Text About:
Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 5 positions, 45°, 12A - Schneider Electric
18,18 €
SPECIFICATIONS
Main
Cam switch function BCD encoded output switch
[ithe] thermal current under enclosure 10 A
Off position With Off position
Sub-assembly composition Contact blocks + fixing plate
[ui] rated insulation voltage 690 V (pollution degree 3) conforming to IEC 60947-1
Switching positions Right: 0° - 45° - 90° - 135° - 180° - 225°
component name K1
Complementary
[ie] rated operational current ac 1.8 A at 690 V AC-3 3 phases conforming to IEC 947-3
2.8 A at 500 V AC-3 3 phases conforming to IEC 947-3
2.8 A at 690 V AC-23A 3 phases conforming to IEC 947-3
3.3 A at 400 V AC-3 3 phases conforming to IEC 947-3
3.8 A at 500 V AC-23A 3 phases conforming to IEC 947-3
4.6 A at 230 V AC-3 3 phases conforming to IEC 947-3
4.8 A at 400 V AC-23A 3 phases conforming to IEC 947-3
5.6 A at 230 V AC-23A 3 phases conforming to IEC 947-3
1 A at 500 V AC-15 conforming to IEC 947-5-1
2 A at 400 V AC-15 conforming to IEC 947-5-1
3 A at 230 V AC-15 conforming to IEC 947-5-1
[ith] conventional thermal current 12 A
Product certifications CSA 240 V 1 hp 1 phase
CSA 240 V 3 hp 3 phases 2 -pole(s)
UL 240 V 1 hp 3 phases
UL 240 V 0.33 hp 1 phase 2 -pole(s)
Product or component type Cam switch body
[uimp] rated impulse withstand voltage 4 kV in isolating function
6 kV conforming to IEC 947-1
mounting location Front
switching angle 45 °
bezel material Plastic
contact operation Slow-break
Fixing mode Multifixing
rated operational power in w 10500 W AC-21, 500 - 660 V 3 phases conforming to IEC 947-3
1100 W AC-3, 230 V 3 phases conforming to IEC 947-3
1500 W AC-23A, 230 V 3 phases conforming to IEC 947-3
1500 W AC-3, 400 V 1 phase conforming to IEC 947-3
1500 W AC-3, 400 V 3 phases conforming to IEC 947-3
1500 W AC-3, 500 V 3 phases conforming to IEC 947-3
1500 W AC-3, 690 V 3 phases conforming to IEC 947-3
2200 W AC-23A, 400 V 3 phases conforming to IEC 947-3
2200 W AC-23A, 500 V 3 phases conforming to IEC 947-3
2200 W AC-23A, 690 V 3 phases conforming to IEC 947-3
4800 W AC-21, 230 V 3 phases conforming to IEC 947-3
600 W AC-3, 230 V 1 phase conforming to IEC 947-3
8300 W AC-21, 400 V 3 phases conforming to IEC 947-3
Net weight 0.121 kg
mechanical durability 1000000 cycles
Number of decimal 5
electrical durability 1000000 cycles AC-15
1000000 cycles AC-21
500000 cycles AC-23
500000 cycles AC-3
Positive opening With
electrical connection Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²
Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²
Maximum operating rate 2.5 cyc/mn AC-21
2.5 cyc/mn AC-23
2.5 cyc/mn AC-3
8.333 cyc/mn AC-15
Short-circuit current 10000 A
Shock resistance 30 gn conforming to IEC 68-2-27
Short-circuit protection 16 A cartridge fuse, type gG
Environment
Ambient air temp for storage/transportation -40…70 °C
Range of product Harmony K
ambient air temperature for operation -25…55 °C
overvoltage category Class II conforming to IEC 536
Class II conforming to NF C 20-030
standards EN 60947-3 for power circuit
EN 60947-5-1 for control circuit
IEC 60947-3 for power circuit
IEC 60947-5-1 for control circuit
CENELEC EN 50013
vibration resistance 5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)
protective treatment TC
About this product

The K1C005BL - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 5 positions, 45°, 12A is produced to respond to the requirements of specialized professionals, such as panel builders, circuit experts, upkeep firms, and primary equipment suppliers. K1C005BL affords remarkable robustness and value for engineers in the electrotechnical industry. This Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 5 positions, 45°, 12A and other Harmony K from Schneider Electric are available at the unbeatable price and delivery schedule through baltelec.eu, a distinguished retailer assisting professionals in their acquisition needs.

Users who have chosen Schneider Electric Harmony K have consistently approved the creator's durability. It has been indicated that the notable performance of K1C005BL - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 5 positions, 45°, 12A extends to a diverse range of purposes. Its excellent aspects make it great selection for diverse needs, ensuring the success of your industrial, tertiary, and automation projects.

Our specialists commits in addressing industrial and tertiary professionals’ needs. We understand the special requirements and demands of our customers in the industry. By joining forces with BALTELEC, our partners get access to the top pricing and supply timeline of high-quality products like K1C005BL - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 5 positions, 45°, 12A from Schneider Electric at a budget-friendly price. Authorized buyers receive more savings and dedicated support.

Don't wait and obtain K1C005BL - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 5 positions, 45°, 12A at our verified and intuitive digital marketplace. Don't delay in making this savvy action that secures the greatest quality and complies with the unique requirements of contractors like your outfit.

If you possess any queries or concerns about K1C005BL - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 5 positions, 45°, 12A or any other Schneider Electric products, call us or refer to our Assistance center section below. We have assembled answers to standard uncertainties to benefit you further in making an wise decision about industrial and tertiary electrical components.

Remember, K1C005BL - Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 5 positions, 45°, 12A from Schneider Electric is safe, cost-effective, and better to other brands in the Harmony K category. Don't hesitate to make it a part of your apparatus this moment. Take advantage of at Baltelec webstore, your reliable source for all your Schneider Electric.

In our Baltelec.eu virtual store you will locate Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 5 positions, 45°, 12A - K1C005BL worth 17.89 €, which will be a faithful and fashionable solution for your requirements. This article is formulated by the Schneider Electric brand using the current technologies and fulfills the leading standards of protection and competence. We present articles from the Harmony K category that mix robustness and practicality, which is an exceptional option for various uses. Independent of whether you necessitate instruments for small construction or for professional industrial application, Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 5 positions, 45°, 12A will be a safe partner in your endeavor.

Baltelec works to make the acquiring process as convenient and fast as practicable for our users. We offer detailed narratives and high-quality photos of Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 5 positions, 45°, 12A so that you can make an enlightened choice. A team of professionals is always ready to help you with any queries in the Harmony K section involved to the picking and use of articles. We are positive that Cam switch body for BCD encoded withoutput switch, Harmony K, multi fixing, plastic, 1 pole, 5 positions, 45°, 12A will meet your criteria and become an important element of your equipment for just 17.89 €.
