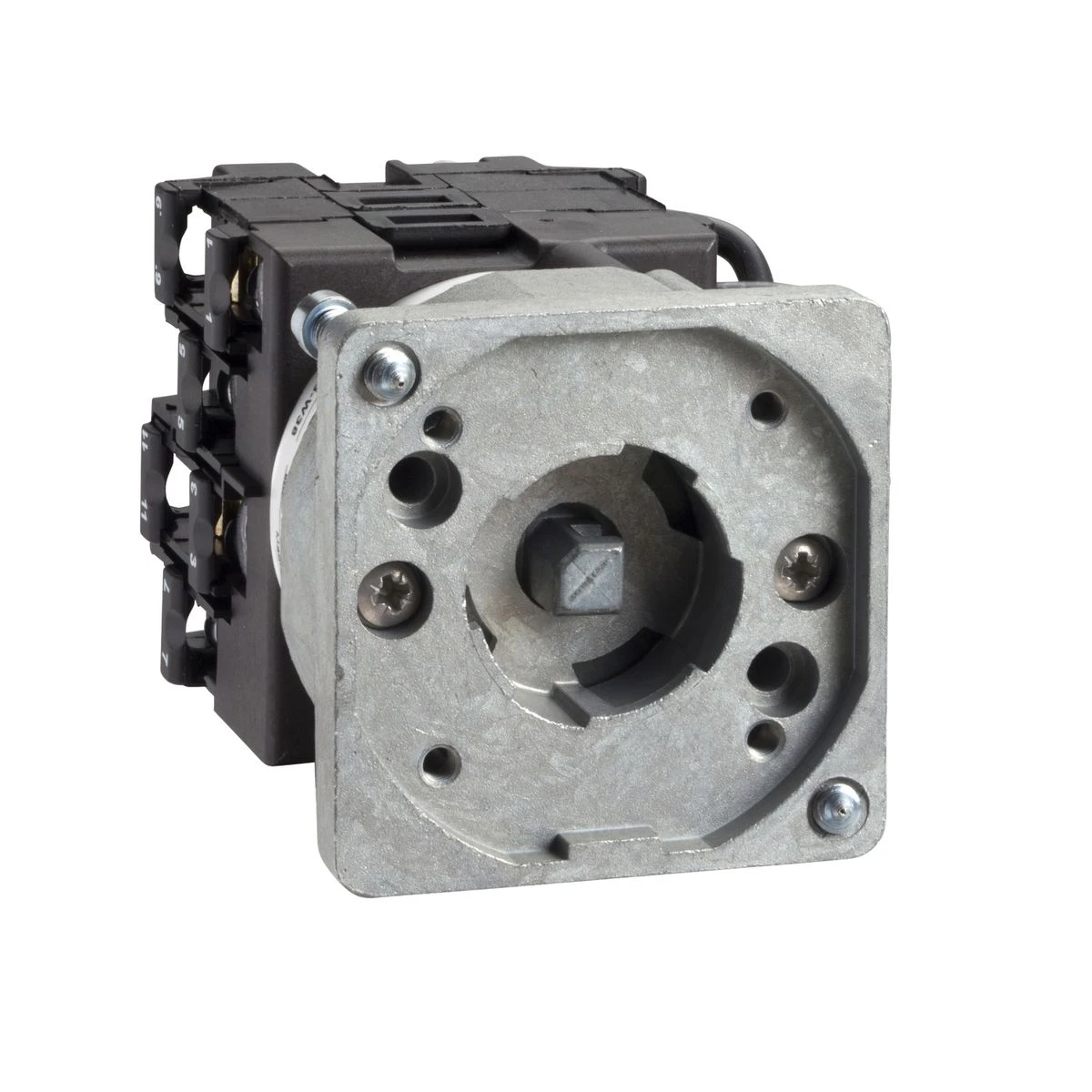

K1B002NX - Body for stepping switch, Harmony K, Ш 22mm, metal, 1 pole, 1 steps, 45°, 12A - Schneider Electric

Expected in 2-4 weeks
K1B002NX - Body for stepping switch, Harmony K, Ш 22mm, metal, 1 pole, 1 steps, 45°, 12A - Schneider Electric - Body for stepping switch, Harmony K, Ш 22mm, metal, 1 pole, 1 steps, 45°, 12A - Schneider Electric - 0
K1B002NX - Body for stepping switch, Harmony K, Ш 22mm, metal, 1 pole, 1 steps, 45°, 12A - Schneider Electric
24,16 € excl. VAT
29,96 € incl. VAT
Text About:
Body for stepping switch, Harmony K, Ш 22mm, metal, 1 pole, 1 steps, 45°, 12A - Schneider Electric
29,96 €
SPECIFICATIONS
Main
Cam switch function Stepping switch
[ithe] thermal current under enclosure 10 A
Off position Without Off position
Sub-assembly composition Contact blocks + fixing plate
[ui] rated insulation voltage 690 V (pollution degree 3) conforming to IEC 60947-1
Switching positions Right: 0° - 45°
component name K1
Complementary
[ie] rated operational current ac 1.8 A at 690 V AC-3 3 phases conforming to IEC 947-3
2.8 A at 500 V AC-3 3 phases conforming to IEC 947-3
2.8 A at 690 V AC-23A 3 phases conforming to IEC 947-3
3.3 A at 400 V AC-3 3 phases conforming to IEC 947-3
3.8 A at 500 V AC-23A 3 phases conforming to IEC 947-3
4.6 A at 230 V AC-3 3 phases conforming to IEC 947-3
4.8 A at 400 V AC-23A 3 phases conforming to IEC 947-3
5.6 A at 230 V AC-23A 3 phases conforming to IEC 947-3
1 A at 500 V AC-15 conforming to IEC 947-5-1
2 A at 400 V AC-15 conforming to IEC 947-5-1
3 A at 230 V AC-15 conforming to IEC 947-5-1
[ith] conventional thermal current 12 A
Product certifications CSA 240 V 1 hp 1 phase
CSA 240 V 3 hp 3 phases 2 -pole(s)
UL 240 V 1 hp 3 phases
UL 240 V 0.33 hp 1 phase 2 -pole(s)
Product or component type Cam switch body
[uimp] rated impulse withstand voltage 4 kV in isolating function
6 kV conforming to IEC 947-1
mounting location Front
switching angle 45 °
bezel material Metal
contact operation Slow-break
Fixing mode Ø 22 mm hole
rated operational power in w 10500 W AC-21, 500 - 660 V 3 phases conforming to IEC 947-3
1100 W AC-3, 230 V 3 phases conforming to IEC 947-3
1500 W AC-23A, 230 V 3 phases conforming to IEC 947-3
1500 W AC-3, 400 V 1 phase conforming to IEC 947-3
1500 W AC-3, 400 V 3 phases conforming to IEC 947-3
1500 W AC-3, 500 V 3 phases conforming to IEC 947-3
1500 W AC-3, 690 V 3 phases conforming to IEC 947-3
2200 W AC-23A, 400 V 3 phases conforming to IEC 947-3
2200 W AC-23A, 500 V 3 phases conforming to IEC 947-3
2200 W AC-23A, 690 V 3 phases conforming to IEC 947-3
4800 W AC-21, 230 V 3 phases conforming to IEC 947-3
600 W AC-3, 230 V 1 phase conforming to IEC 947-3
8300 W AC-21, 400 V 3 phases conforming to IEC 947-3
Net weight 0.163 kg
mechanical durability 1000000 cycles
electrical durability 1000000 cycles AC-15
1000000 cycles AC-21
500000 cycles AC-23
500000 cycles AC-3
Number of steps 2
Positive opening With
electrical connection Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²
Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²
Maximum operating rate 2.5 cyc/mn AC-21
2.5 cyc/mn AC-23
2.5 cyc/mn AC-3
8.333 cyc/mn AC-15
Short-circuit current 10000 A
Shock resistance 30 gn conforming to IEC 68-2-27
Poles description 1P
Short-circuit protection 16 A cartridge fuse, type gG
Environment
Ambient air temp for storage/transportation -40…70 °C
Range of product Harmony K
ambient air temperature for operation -25…55 °C
standards EN/IEC 60947-3 for power circuit
EN/IEC 60947-5-1 for control circuit
CENELEC EN 50013
vibration resistance 5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)
protective treatment TC
About this product

The K1B002NX - Body for stepping switch, Harmony K, Ш 22mm, metal, 1 pole, 1 steps, 45°, 12A is conceived to address the wants of business buyers, such as control panel builders, electrical fitters, service providers, and industry fabricators. K1B002NX affords superb integrity and beneficence for engineers in the power systems industry. This Body for stepping switch, Harmony K, Ш 22mm, metal, 1 pole, 1 steps, 45°, 12A and other Harmony K from Schneider Electric are on offer at the most competitive price and distribution time through BaltElec, a reliable supplier catering to professionals in their provision needs.

Users who have selected Schneider Electric Harmony K have persistently commended the manufacturer’s robustness. It has been indicated that the remarkable effectiveness of K1B002NX - Body for stepping switch, Harmony K, Ш 22mm, metal, 1 pole, 1 steps, 45°, 12A extends to a extensive scope of implementations. Its first-rate characteristics make it right choice for different applications, ensuring the success of your industrial, tertiary, and automation projects.

Our experts centers in fulfilling industrial and tertiary professionals’ needs. We know the distinct expectations and preferences of our consumers in the niche. By working with our professionals, our partners access access to the superior fees and supply timeline of superior products like K1B002NX - Body for stepping switch, Harmony K, Ш 22mm, metal, 1 pole, 1 steps, 45°, 12A from Schneider Electric at a budget-friendly price. Account holders take advantage of exclusive discounts and premium support.

Begin today and order K1B002NX - Body for stepping switch, Harmony K, Ш 22mm, metal, 1 pole, 1 steps, 45°, 12A at our protected and straightforward website. Don't delay in making this sensible move that validates the top quality and matches the individual requirements of customers like your group.

In the event of any matters or concerns about K1B002NX - Body for stepping switch, Harmony K, Ш 22mm, metal, 1 pole, 1 steps, 45°, 12A or any other Schneider Electric products, communicate with us or refer to our Common Questions section below. We have curated answers to usual uncertainties to assist you further in making an thoughtful decision about industrial and tertiary electrical components.

Remember, K1B002NX - Body for stepping switch, Harmony K, Ш 22mm, metal, 1 pole, 1 steps, 45°, 12A from Schneider Electric is unfailing, inexpensive, and high-quality to market challengers in the Harmony K category. Make it a part of your network straight away. Obtain at Baltelec e-shop, your respected merchant for all your professional electrical equipment and automation needs.

In our Baltelec.eu e-commerce store you will find Body for stepping switch, Harmony K, Ш 22mm, metal, 1 pole, 1 steps, 45°, 12A - K1B002NX worth 29.48 €, which will be a constant and fashionable solution for your necessities. This merchandise is designed by the Schneider Electric brand using the latest technologies and adheres to the leading standards of precaution and competence. We propose produce from the Harmony K category that amalgamate endurance and operability, which is an superior election for various uses. Independent of whether you seek devices for small fabrication or for expert industrial use, Body for stepping switch, Harmony K, Ш 22mm, metal, 1 pole, 1 steps, 45°, 12A will be a trustworthy associate in your task.

Baltelec tries to make the securing process as convenient and fast as practicable for our clients. We offer detailed portrayals and high-quality depictions of Body for stepping switch, Harmony K, Ш 22mm, metal, 1 pole, 1 steps, 45°, 12A so that you can make an conscious choice. A team of virtuosos is always ready to help you with any questions in the Harmony K section pertaining to the opting and use of products. We are sure that Body for stepping switch, Harmony K, Ш 22mm, metal, 1 pole, 1 steps, 45°, 12A will meet your requirements and become an key element of your machinery for just 29.48 €.
