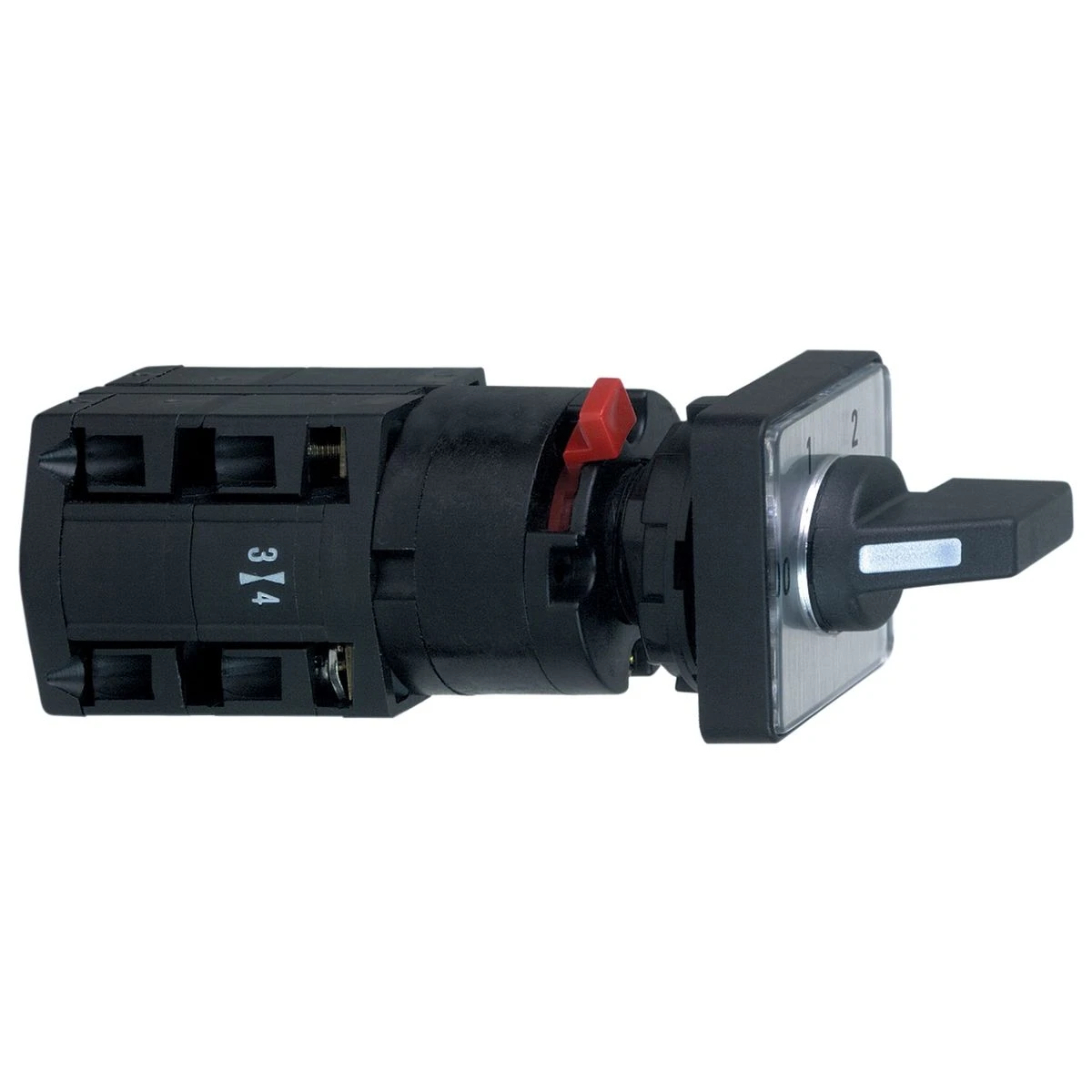

K10D012UCH - Cam changeover switch, Harmony K, Ш16 or 22mm , plastic, 2 poles, 30°, 10A, 30x30mm, marked 1/2 - Schneider Electric
Expected in 2-4 weeks
48,10 € excl. VAT
58,68 € incl. VAT
Text About:
Cam changeover switch, Harmony K, Ш16 or 22mm , plastic, 2 poles, 30°, 10A, 30x30mm, marked 1/2 - Schneider Electric
SPECIFICATIONS
Main
Cam switch function
Changeover switch
Cam switch head type
With front plate 30 x 30 mm
Off position
Without Off position
Presentation of legend
With metallic legend, 1 - 2 black marking
[ui] rated insulation voltage
440 V (pollution degree 3) conforming to IEC 60947-1
Switching positions
Left: 330°
Right: 30°
Right: 30°
component name
K10
Complementary
[ie] rated operational current ac
10 A at 400 V AC-1
10 A at 400 V AC-21A
3 A at 240 V AC-15
6 A at 120 V AC-15
10 A at 400 V AC-21A
3 A at 240 V AC-15
6 A at 120 V AC-15
[ie] rated operational current in dc
10 A at 24 V resistive load
0.3 A at 220 V resistive load
0.7 A at 110 V resistive load
0.3 A at 220 V resistive load
0.7 A at 110 V resistive load
[ith] conventional thermal current
10 A
Product certifications
CULus
Product or component type
Complete cam switch
[uimp] rated impulse withstand voltage
4 kV conforming to IEC 60947-1
switching angle
60 °
Product mounting
Front mounting
Cad overall depth
88 mm
Cad overall height
30 mm
contact operation
Slow-break
Electrical shock protection class
Class II conforming to IEC 60536
Fixing mode
Ø 16 or 22 mm hole
Cad overall width
30 mm
rated operational power in w
1800 W AC-23A, 220/240 V 3 phases
370 W AC-23A, 110/120 V 1 phase
750 W AC-23A, 220/240 V 1 phase
370 W AC-23A, 110/120 V 1 phase
750 W AC-23A, 220/240 V 1 phase
Rotary handle padlocking
Without
Type of operator
Black handle
Net weight
0.045 kg
rated power in hp
1 hp at 220/240 V AC, 3 phases
0.33 hp at 110/120 V AC, 1 phase
0.75 hp at 110/120 V AC, 3 phases
0.75 hp at 220/240 V AC, 1 phase
0.33 hp at 110/120 V AC, 1 phase
0.75 hp at 110/120 V AC, 3 phases
0.75 hp at 220/240 V AC, 1 phase
mechanical durability
1000000 cycles
return
Without
electrical durability
100000000 cycles
electrical connection
Captive screw clamp terminals, clamping capacity: 2 x 1.5 mm²
Poles description
2P
Short-circuit protection
10 A cartridge fuse, type gG
Environment
Ambient air temp for storage/transportation
-40…70 °C
ip degree of protection
Contact block: IP20
Operating head: IP65 conforming to IEC 60529
Operating head: IP65 conforming to IEC 60529
Range of product
Harmony K
ambient air temperature for operation
-20…55 °C
standards
CENELEC EN 50013
EN/IEC 60947-3
EN/IEC 60947-5-1
EN/IEC 60947-3
EN/IEC 60947-5-1
protective treatment
TC
