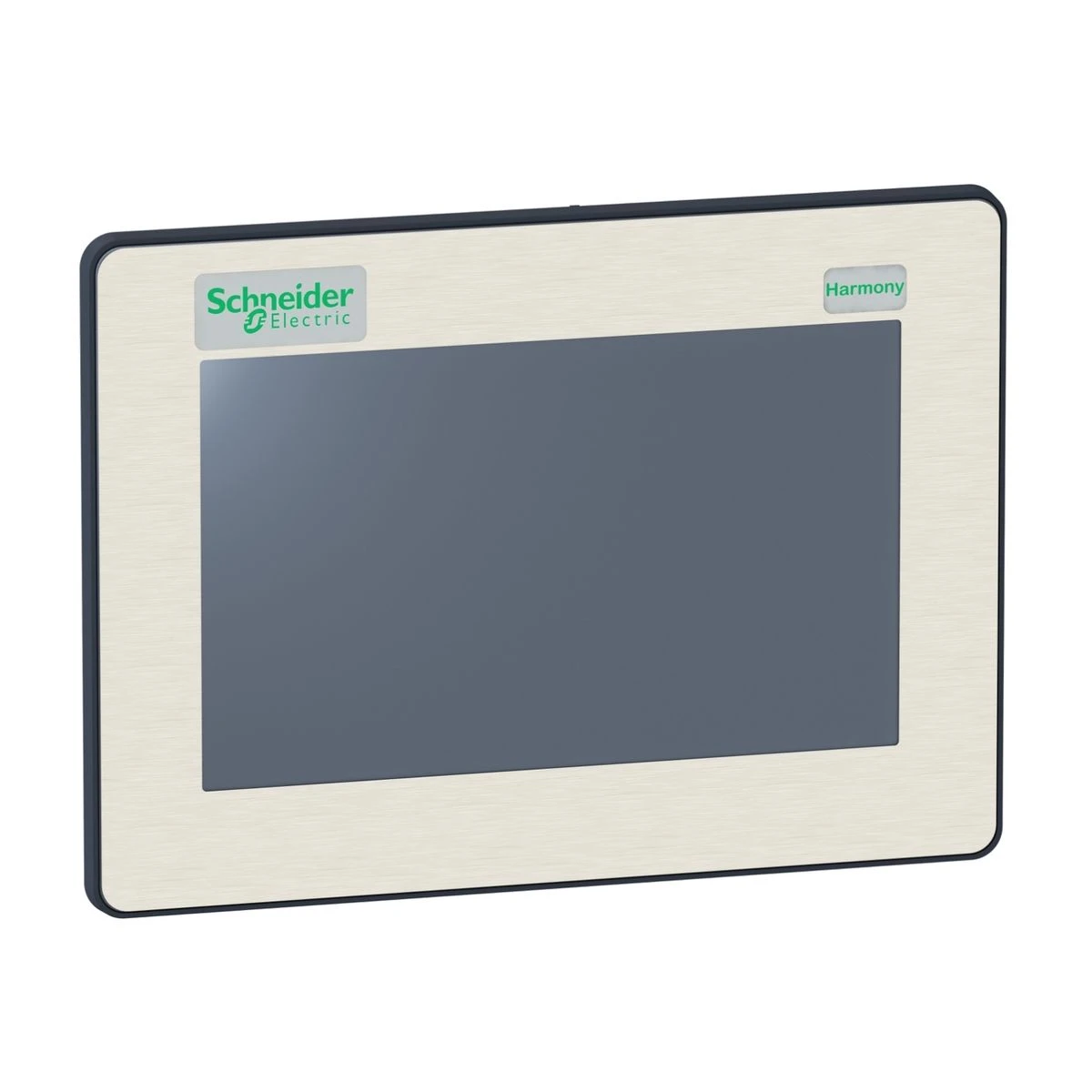

HMIDT35X - EXtreme touchscreen panel, Harmony GTUX, Series Display 7"W, Outdoor use, Rugged, Coated - Schneider Electric

Expected in 2-4 weeks

684,26 € excl. VAT

834,80 € incl. VAT

Text About:

EXtreme touchscreen panel, Harmony GTUX, Series Display 7"W, Outdoor use, Rugged, Coated - Schneider Electric

In cart

834,80 €

SPECIFICATIONS

Main

Terminal type Touchscreen display

Complementary

Product certifications KC
CE
RCM
EAC
ATEX zone 2/22
IEC-Ex
UL
CSA
UKCA
UKEX

Aspect ratio 4:3

Handle front plate colour 148.6 mm

Product or component type EXtreme touchscreen panel

[us] rated supply voltage 12 V DC power supply

inrush current 30 A

pixel resolution 800 x 480

Cut-out dimensions 394 (+ 1/- 0) x 250 (+ 1/- 0) mm

luminance 1000 cd/m²

Display colour 262144 colors

width (w) 203.6 mm

supply voltage limits 10.8…28.8 V

Net weight 1.3 kg

Display type Colour TFT LCD

depth 37 mm

Pollution degree 2

Power consumption in w 12.5 W

display resolution 800 x 480 pixels WVGA

display size 7 inch

Touch panel Single touch analogue resistive

Touchscreen resolution 1024 x 1024

Shock resistance 392 m/s² conforming to EN/IEC 61131-2

Type of cooling Natural convection

Environment

Ambient air temp for storage/transportation -30…70 °C

ip degree of protection IP66f
IP67f
Front panel: Type 4X

operating altitude 2000 m

Range of product Harmony GTUX

ambient air temperature for operation -30…65 °C

electromagnetic compatibility Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2

Environmental characteristics Corrosive gas free
UV resistant

standards UL 61010
UL 121201
Class I division 2 CSA C22.2 No 213
CSA C22.2 No 61010-1
IEC 61132-2

relative humidity 10…90 % non-condensing

vibration resistance 7 mm constant amplitude (f = 5…9 Hz) conforming to EN/IEC 61131-2
19.6 m/s² (f = 9…150 Hz) conforming to EN/IEC 61131-2
