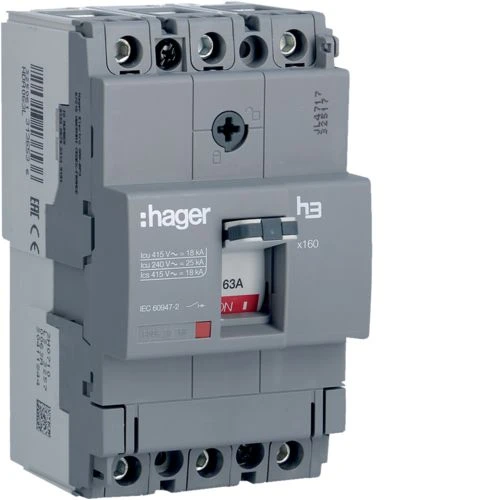

HDA063L - MCCB h3 x160 TM 3x63A 18kA - Hager
Expected in 2-4 weeks
SPECIFICATIONS
Additional Information
type of order
Toggle
type of pole
3P3D
Main
Number of modules
4.5
rated operational voltage ue
220 / 415 V
Complementary
air humidity protection
for all climates
breaking capacity on 1 pole for it 230v nf 60947-2
15 kA
category of use
A
complete device with protection unit
Yes
connection cross-sect. flexible conductor
4 / 70mm²
correction factor of rating current for 2 devices placed side-by-side
1
din rail mounting with optional adaptator
No
electric endurance in number of cycles
1000
magnetic trip delay time
0 ms
motor drive optional
No
power loss per pole at in
7.1 W
range of the magnetic adjustment
1000 A
thermal protection trip time
0 ms
[in] rated current
63 A
breaking capacity on 1 pole for it 400v nf 60947-2
9 kA
connection cross-sect. rigid cable
4 / 95mm²
correction factor of rating current for 3 devices placed side-by-side
1
integrated earth fault protection
No
number of mechanical operations
4000
setting type in or ith
IN
time of response when opening
10 ms
total power loss under in
21.3 W
trip unit
TM F/F
correction factor of rating current for 4 and 5 devices placed side-by-side
1
tripmode
TM
type of connection
with screw
with under voltage release
No
correction factor of rating current for 6 devices placed side-by-side
1
rated service breaking capacity ics ac according iec 60947-2
100 %
storage/transport temperature
-35…70 °C
rated ultimate short-circuit breaking capacity icu under 230v ac iec 60947-2
25 kA
Rated insulation voltage
690 V
rated ultimate short-circuit breaking capacity icu under 240v ac iec 60947-2
25 kA
connection
Front connection
rated ultimate short-circuit breaking capacity icu under 400v ac iec 60947-2
18 kA
rated ultimate short-circuit breaking capacity icu under 415v ac iec 60947-2
18 kA
rated ultimate short-circuit breaking capacity icu under 440v ac iec 60947-2
15 kA
rated ultimate short-circuit breaking capacity icu under 690v ac iec 60947-2
4 kA
thermal protection nob setting xin
1
frequency
50/60
rated impulse withstand voltage
8 kV
Poles description
3 P
Environment
altitude
2000 m
european directive weee
concerned
protection index ip
IP4X
standard text
IEC 60947-2
operating temperature
-25…70 °C
