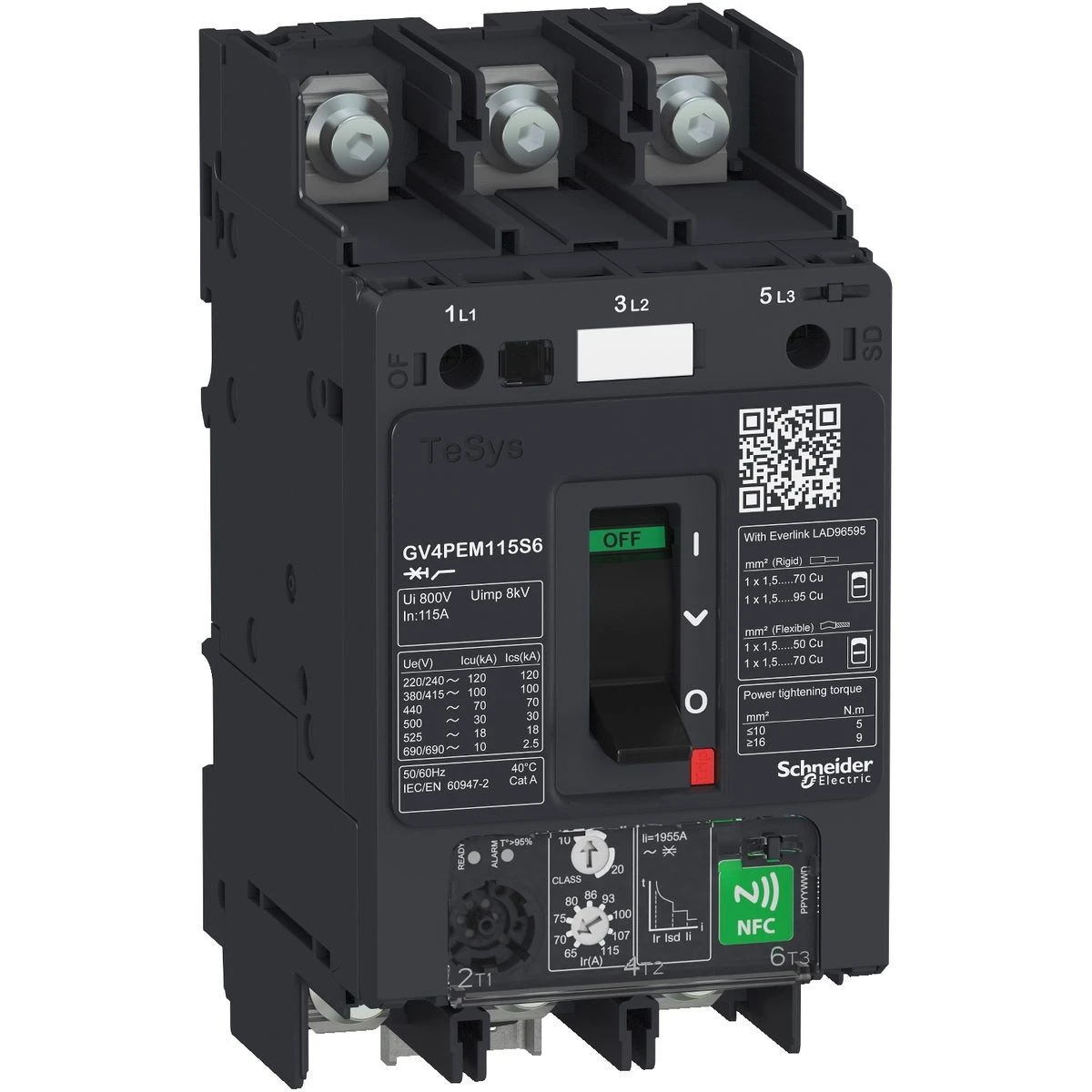

GV4PEM12S6 - Motor circuit breaker, TeSys GV4, 3P, 12.5A, Icu 100kA, thermal magnetic multifunction, lugs termina - Schneider Electric

Expected in 2-4 weeks

419,06 € excl. VAT

511,25 € incl. VAT

Text About:

Motor circuit breaker, TeSys GV4, 3P, 12.5A, Icu 100kA, thermal magnetic multifunction, lugs termina - Schneider Electric

In cart

511,25 €

SPECIFICATIONS

Main

Device short name GV4PEM

Range TeSys Deca
TeSys Deca

magnetic tripping current 212 A

Product Name TeSys GV4
TeSys Deca

Trip unit technology Electronic
Thermal-magnetic

[ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2

motor power kW 3 kW at 400...415 V AC 50/60 Hz
3 kW at 500 V AC 50/60 Hz
4 kW at 500 V AC 50/60 Hz
5.5 kW at 660...690 V AC 50/60 Hz
7.5 kW at 660...690 V AC 50/60 Hz
4 kW at 400...415 V AC 50/60 Hz
5.5 kW at 400...415 V AC 50/60 Hz
5.5 kW at 500 V AC 50/60 Hz
7.5 kW at 500 V AC 50/60 Hz
9 kW at 660...690 V AC 50/60 Hz
11 kW at 660...690 V AC 50/60 Hz

Complementary

[in] rated current 12.5 A

[ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2

[ics] rated service breaking capacity 120 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2
70 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
18 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
100 kA at 208Y/120 V AC 50/60 Hz conforming to UL 60947
100 kA at 240 V AC 50/60 Hz conforming to UL 60947
65 kA at 480Y/277 V AC 50/60 Hz conforming to UL 60947
10 kA Icu at 660...690 V AC 50/60 Hz conforming to IEC 60947-2
25 kA at 600Y/347 V AC 50/60 Hz conforming to UL 60947

[ith] conventional thermal current 115 A conforming to IEC 60947-4-1

Control type Toggle

Product certifications IEC
UL
CSA
CCC
EAC
ATEX
EU-RO MR

Connection pitch 27 mm without spreaders
35 mm with spreaders

Handle front plate colour 155 mm

Product or component type Motor circuit breaker

tightening torque 9 N.m for cable 16…95 mm²
5 N.m for cable 1.5…10 mm²

[uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2

Connections - terminals Lugs-ring terminals

Device application Motor protection

width (w) 81 mm

mechanical robustness Vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6
Vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6
Shocks: 15 gn 11 ms conforming to IEC 60068-2-27

Colour Grey (RAL 7016)

Ik degree of protection IK07 conforming to IEC 62262

Net weight 1.45 kg

Operating position Any position

power dissipation per pole 4.6 W

depth 116 mm

mechanical durability 40000 cycles

electrical durability 40000 cycles for AC-3 at 440 V In/2
20000 cycles for AC-3 at 440 V In

Pollution degree 3

Maximum operating rate 25 cyc/h

Phase failure sensitivity Yes conforming to IEC 60947-4-1

Rated duty Continuous conforming to IEC 60947-4-1

Suitability for isolation Yes conforming to IEC 60947-1

Poles description 3P

Utilisation category Category A conforming to IEC 60947-2
AC-3 conforming to IEC 60947-4-1

Environment

Ambient air temp for storage/transportation -50…85 °C

Climatic withstand conforming to IACS E10

ip degree of protection IP40 conforming to IEC 60529

operating altitude 5000 m

Range of product TeSys GV4

ambient air temperature for operation -25…70 °C

standards CSA C22.2 No 60947-4-1
UL 60947-4-1
EN/IEC 60947-4-1
EN/IEC 60947-2

fire resistance 960 °C conforming to IEC 60695-2-11
