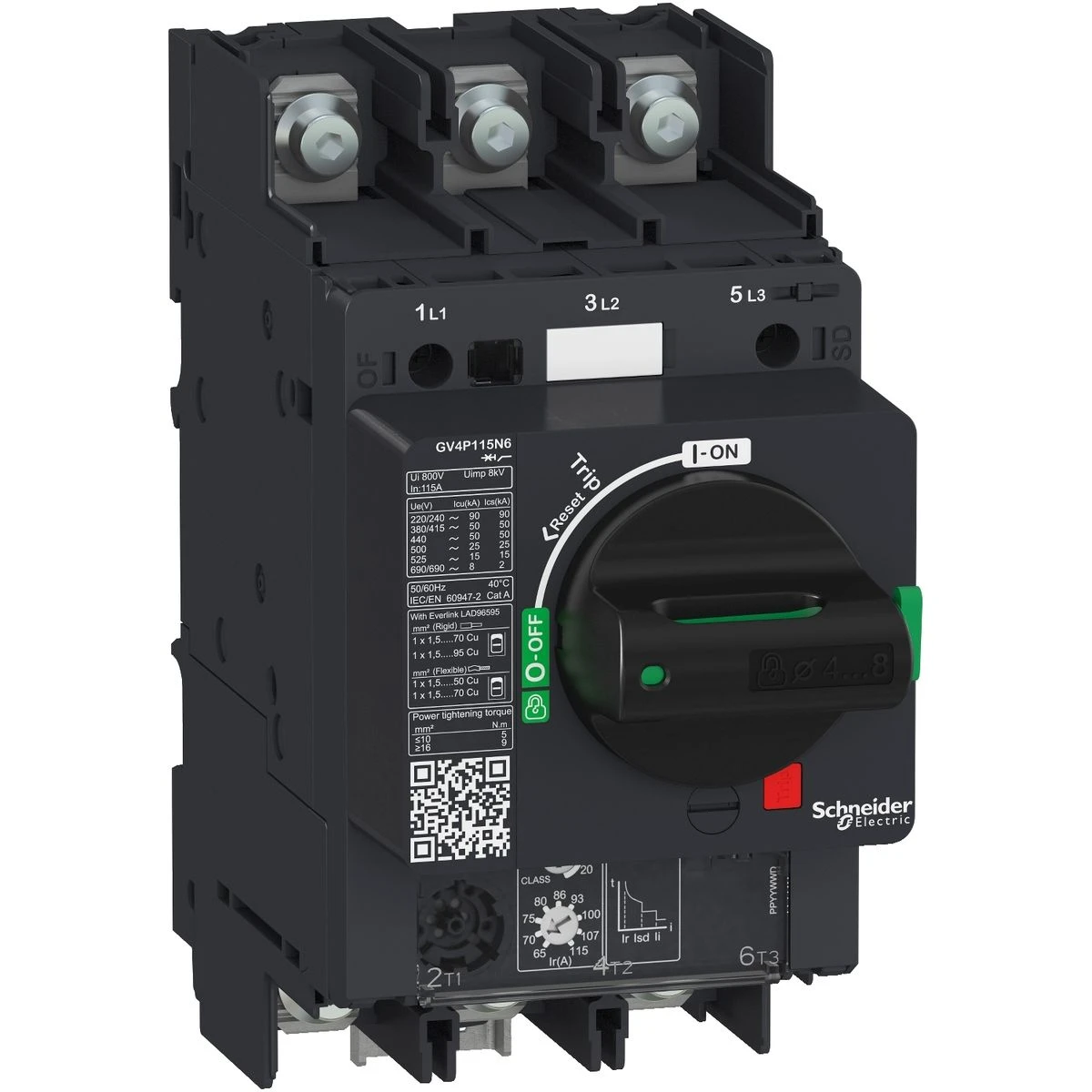

GV4P115N6 - Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic, lugs terminals - Schneider Electric

Expected in 2-4 weeks
GV4P115N6 - Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic, lugs terminals - Schneider Electric - Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic, lugs terminals - Schneider Electric - 0
GV4P115N6 - Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic, lugs terminals - Schneider Electric
328,55 € excl. VAT
407,40 € incl. VAT
Text About:
Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic, lugs terminals - Schneider Electric
407,40 €
SPECIFICATIONS
Main
Device short name GV4P
Range TeSys Deca
TeSys Deca
magnetic tripping current 1955 A
Product Name TeSys GV4
TeSys Deca
Trip unit technology Electronic
Thermal-magnetic
[ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2
motor power kW 37 kW at 400...415 V AC 50/60 Hz
45 kW at 400...415 V AC 50/60 Hz
55 kW at 400...415 V AC 50/60 Hz
45 kW at 500 V AC 50/60 Hz
55 kW at 500 V AC 50/60 Hz
75 kW at 500 V AC 50/60 Hz
75 kW at 660...690 V AC 50/60 Hz
90 kW at 660...690 V AC 50/60 Hz
110 kW at 660...690 V AC 50/60 Hz
Complementary
[in] rated current 115 A
[ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[ics] rated service breaking capacity 100 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
15 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
65 kA at 208Y/120 V AC 50/60 Hz conforming to UL 60947
65 kA at 240 V AC 50/60 Hz conforming to UL 60947
35 kA at 480Y/277 V AC 50/60 Hz conforming to UL 60947
8 kA Icu at 660...690 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
18 kA at 600Y/347 V AC 50/60 Hz conforming to UL 60947
[ith] conventional thermal current 115 A conforming to IEC 60947-4-1
Control type Rotary handle
Product certifications IEC
UL
CSA
CCC
EAC
ATEX
EU-RO MR
Connection pitch 27 mm without spreaders
35 mm with spreaders
Handle front plate colour 155 mm
Product or component type Motor circuit breaker
tightening torque 9 N.m for cable 16…95 mm²
5 N.m for cable 1.5…10 mm²
[uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
Connections - terminals Lugs-ring terminals
Device application Motor protection
width (w) 81 mm
mechanical robustness Vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6
Vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6
Shocks: 15 gn 11 ms conforming to IEC 60068-2-27
Colour Grey (RAL 7016)
Ik degree of protection IK07 conforming to IEC 62262
Net weight 1.6 kg
Operating position Any position
power dissipation per pole 4.6 W
depth 165 mm
mechanical durability 40000 cycles
electrical durability 10000 cycles for AC-3 at 440 V In/2
5000 cycles for AC-3 at 440 V In
Pollution degree 3
Maximum operating rate 25 cyc/h
Phase failure sensitivity Yes conforming to IEC 60947-4-1
Rated duty Continuous conforming to IEC 60947-4-1
Suitability for isolation Yes conforming to IEC 60947-1
Poles description 3P
Utilisation category Category A conforming to IEC 60947-2
AC-3 conforming to IEC 60947-4-1
Environment
Ambient air temp for storage/transportation -50…85 °C
Climatic withstand conforming to IACS E10
ip degree of protection IP40 conforming to IEC 60529
operating altitude 5000 m
Range of product TeSys GV4
ambient air temperature for operation -25…70 °C
standards CSA C22.2 No 60947-4-1
UL 60947-4-1
EN/IEC 60947-4-1
EN/IEC 60947-2
fire resistance 960 °C conforming to IEC 60695-2-11
About this product

The GV4P115N6 - Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic, lugs terminals is formulated to cater to the necessities of industry specialists, such as electrical installers, electric engineers, maintenance service providers, and equipment creators. GV4P115N6 yields outstanding integrity and merit for engineers in the power management industry. This Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic, lugs terminals and other TeSyS Deca GV4 Motor Circuit Breaker from Schneider Electric can be ordered at the optimal price and shipping time through baltelec.eu, a reliable provider assisting specialists in their sourcing needs.

Customers who have opted for Schneider Electric TeSyS Deca GV4 Motor Circuit Breaker have commonly admired the brand's robustness. It has been emphasized that the remarkable efficiency of GV4P115N6 - Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic, lugs terminals extends to a multitude of deployments. Its ideal features make it well-suited solution for diverse needs, ensuring your industrial, tertiary and automation projects success.

Our company specializes in accommodating industrial and tertiary professionals’ needs. We recognize the unique requirements and expectations of our clients in the market. By working with Baltelec.eu, you get access to the top price lists and availability of superior products like GV4P115N6 - Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic, lugs terminals from Schneider Electric at a competitive price. Registered users take pleasure in added discounts and preferred assistance.

Begin today and buy GV4P115N6 - Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic, lugs terminals at our well-established and streamlined e-commerce site. Don't delay in making this intelligent choice that guarantees the top quality and achieves the particular specifications of contractors like your enterprise.

Should you experience any worries or concerns about GV4P115N6 - Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic, lugs terminals or any other Schneider Electric products, connect with us or refer to our Frequently Asked Questions section below. We have consolidated answers to common questions to advise you further in making an educated decision about industrial and tertiary electrical components.

Remember, GV4P115N6 - Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic, lugs terminals from Schneider Electric is credible, inexpensive, and top-notch to other manufacturers in the TeSyS Deca GV4 Motor Circuit Breaker category. Feel free to make it a part of your infrastructure now. Take advantage of at Baltelec webstore, your respected merchant for all your Schneider Electric.

In our Baltelec.eu internet store you will find Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic, lugs terminals - GV4P115N6 worth 400.82 €, which will be a faithful and new solution for your preferences. This produce is formulated by the Schneider Electric brand using the latest technologies and follows the optimal standards of defense and efficiency. We provide articles from the TeSyS Deca GV4 Motor Circuit Breaker category that integrate resilience and usefulness, which is an first-rate choice for various applications. Notwithstanding of whether you demand appliances for small fabrication or for professional industrial exertion, Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic, lugs terminals will be a constant aide in your occupation.

Baltelec aims to make the getting process as convenient and fast as accomplishable for our users. We offer detailed accounts and high-quality illustrations of Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic, lugs terminals so that you can make an conscious choice. A team of authorities is always ready to help you with any matter in the TeSyS Deca GV4 Motor Circuit Breaker section affiliated to the determining and use of articles. We are guaranteed that Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic, lugs terminals will meet your standards and become an indispensable element of your gear for just 400.82 €.

Popular Questions about Schneider Electric Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic, lugs terminals:
