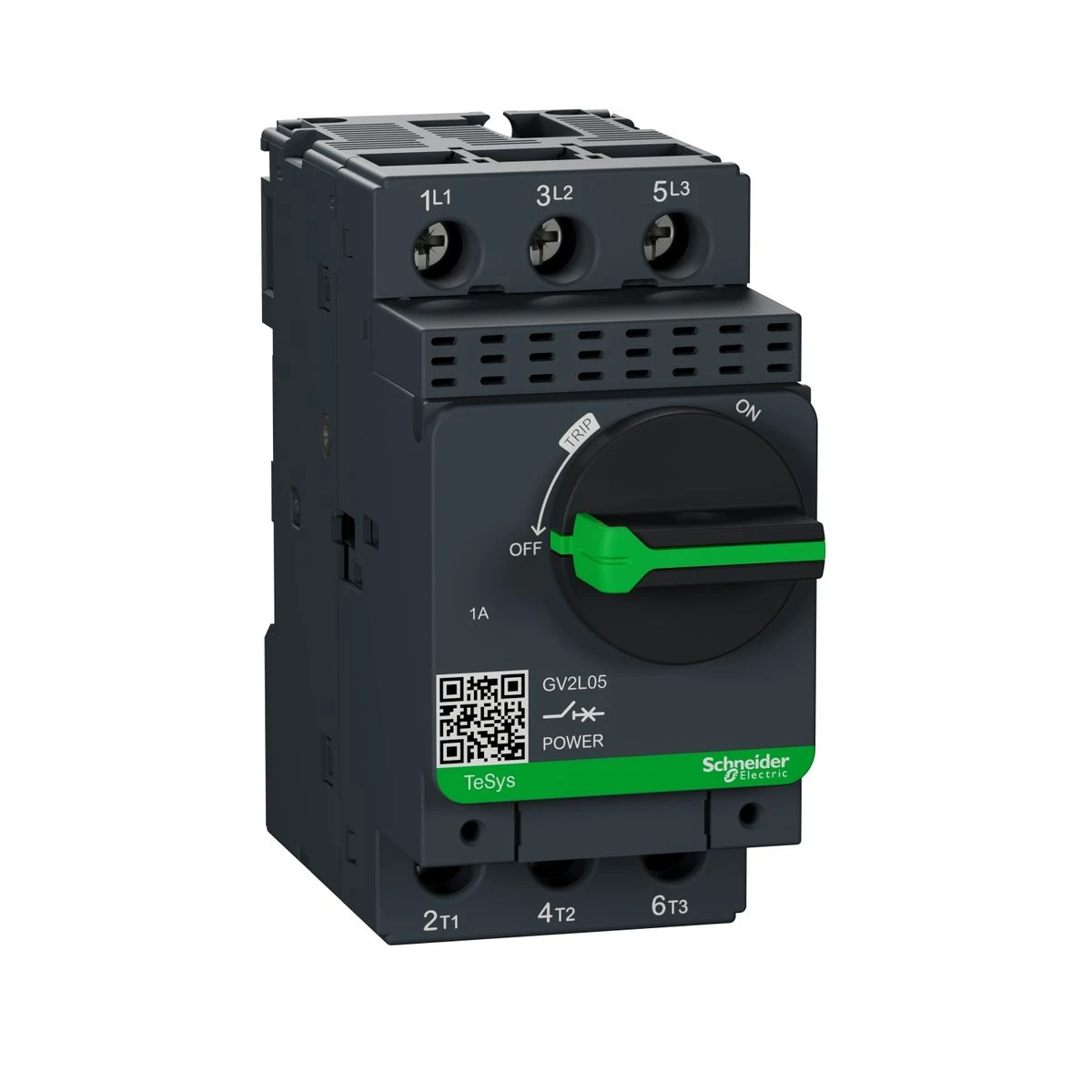

GV2L05 - Motor circuit breaker,TeSys Deca frame 2,3P,1A,magnetic,rotary handle,screw clamp terminals - Schneider Electric

Expected in 2-4 weeks

44,73 € excl. VAT

54,57 € incl. VAT

Text About:

Motor circuit breaker,TeSys Deca frame 2,3P,1A,magnetic,rotary handle,screw clamp terminals - Schneider Electric

In cart

54,57 €

SPECIFICATIONS

Main

Device short name GV2L

Range TeSys Deca

magnetic tripping current 13 A

Product Name TeSys GV2
TeSys Deca

Trip unit technology Magnetic

[ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2

motor power kW 0.25 kW at 400/415 V AC 50/60 Hz
0.37 kW at 400/415 V AC 50/60 Hz
0.37 kW at 500 V AC 50/60 Hz
0.55 kW at 690 V AC 50/60 Hz
0.75 kW at 690 V AC 50/60 Hz

Complementary

[in] rated current 1 A

[ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2

[ics] rated service breaking capacity 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2

[ith] conventional thermal current 1 A conforming to IEC 60947-4-1

Control type Rotary handle

Product certifications CCC
UL
CSA
EAC
LROS (Lloyds register of shipping)
BV
RINA
DNV-GL
UKCA
IECEE CB Scheme

Handle front plate colour 89 mm

Product or component type Motor circuit breaker

tightening torque 1.7 N.m - on screw clamp terminal

[uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2

Device application Motor protection

Fixing mode 35 mm symmetrical DIN rail: clipped
Panel: screwed (with 2 x M4 screws)

width (w) 45 mm

mechanical robustness Shocks: 30 Gn for 11 ms
Vibrations: 5 Gn, 5...150 Hz

network frequency 50/60 Hz conforming to IEC 60947-2

Colour Dark grey

Ik degree of protection IK04

Net weight 0.33 kg

power dissipation per pole 1.8 W

depth 97 mm

mechanical durability 100000 cycles

electrical durability 100000 cycles for AC-3 at 415 V In

Network type AC

Rated duty Continuous conforming to IEC 60947-4-1

Suitability for isolation Yes conforming to IEC 60947-1 § 7-1-6

Poles description 3P

Utilisation category Category A conforming to IEC 60947-2
AC-3 conforming to IEC 60947-4-1

Environment

Ambient air temp for storage/transportation -40…80 °C

Climatic withstand conforming to IACS E10

ip degree of protection IP20 conforming to IEC 60529

operating altitude 2000 m

ambient air temperature for operation -20…60 °C

standards EN/IEC 60947-2
EN/IEC 60947-4-1
UL 60947-4-1
CSA C22.2 No 60947-4-1

fire resistance 960 °C conforming to IEC 60695-2-11
