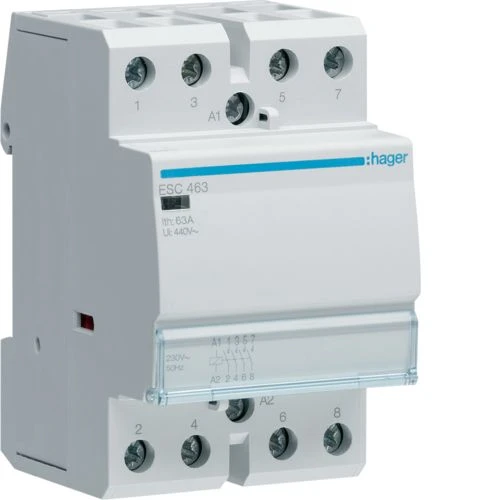

ESC463 - Contactor 63A, 4NO, 230V - Hager

Pending restock
ESC463 - Contactor 63A, 4NO, 230V - Hager - Contactor 63A, 4NO, 230V - Hager - 0
ESC463 - Contactor 63A, 4NO, 230V - Hager
104,88 € excl. VAT
130,05 € incl. VAT
Text About:
Contactor 63A, 4NO, 230V - Hager
130,05 €
SPECIFICATIONS
Additional Information
type of order Not applicable
Main
Number of modules 3
rated operational voltage ue 400 V
Complementary
acceptable current load with ac7 category a 63 A
can be accessorized Yes
command voltage ac 230 V
connection cross-sect. flexible conductor 1,5 / 16mm²
contact rating with 230 v in ac7 category a 11.6 kW
depth of installed product 60 mm
electric endurance in number of cycles 30000
fluorescent lamps in duo circuit 4700 VA
inrush power absorbed 62.5 VA
local operation/hand operation No
max. power with fluorescent parallel lamps 2100 VA
max. power with incandescent lamps 6500 W
search words Installation contactor;Mini contactor;Rail mounted device;Contactor;Control contactor;AC contactor;
time of response when closing 25 ms
winding resistance 770 Ω
[in] rated current 63 A
acceptable current load with ac7 category b 32 A
connection cross-sect. rigid cable 1,5 / 25mm²
contact rating with 230 v in ac7 category b 3.3 kW
dc control voltage 0 V
height of installed product 85 mm
max. load fluorescent lamp 3000 VA
number of mechanical operations 1000000
time of response when opening 20 ms
total power loss under in 21.5 W
connection cross-section of the control cable solid 1 / 2.5 mm²
contact rating with 400 v in ac7 category a 35 kW
number of contacts 4
type of connection with screw
width of installed product 54 mm
contact rating with 400 v in ac7 category b 10 kW
operating consumption 5.7 VA
storage/transport temperature -40…80 °C
thermal rated current outside of housings 63 A
tightening torque Coil: 2,5Nm ; Power: 3,5Nm
power dissipation per coil 1.5 W
type of contacts 4NO
power loss per contact 5 W
Rated insulation voltage 440 V
frequency 50
rated impulse withstand voltage 4 kV
Poles description 4 P
Environment
protection class isol.class II
european directive weee concerned
protection index ip IP2X
operating temperature -10…50 °C
About this product

The ESC463 - Contactor 63A, 4NO, 230V is produced to address the conditions of industry experts, such as electrical installers, electrical fitters, maintenance service providers, and OEMs. ESC463 furnishes unmatched integrity and value for professionals in the electrical engineering industry. This Contactor 63A, 4NO, 230V and other Contactors from Hager can be purchased at the most affordable rate and delivery period through BaltElec, an independent provider aiding consultants in their supply needs.

Users who have secured Hager Contactors have regularly applauded the maker's dependability. It has been specified that the superlative productivity of ESC463 - Contactor 63A, 4NO, 230V extends to a multitude of tasks. Its excellent characteristics make it proper pick to cater to varied requirements, ensuring the success of your industrial, tertiary, and automation projects.

BaltElec dedicates in accommodating industrial and tertiary professionals’ needs. We appreciate the unique criteria and desires of our buyers in the industry. By working with us, our customers get access to the top price and delivery period of first-rate products like ESC463 - Contactor 63A, 4NO, 230V from Hager at cost-effective price. Registered users take advantage of special savings and preferred assistance.

Start immediately and order ESC463 - Contactor 63A, 4NO, 230V at our reliable and hassle-free online store. Don't delay in making this prudent option that certifies the top quality and covers the customized requests of users like your group.

If you possess any uncertainties or concerns about ESC463 - Contactor 63A, 4NO, 230V or any other Hager products, contact us or refer to our Support section section below. We have provided answers to typical concerns to aid you further in making an wise decision about industrial and tertiary electrical components.

Remember, ESC463 - Contactor 63A, 4NO, 230V from Hager is secure, affordable, and outstanding to other producers in the Contactors category. Feel free to make it a part of your apparatus this moment. Order at baltele.eu, your esteemed seller for all your professional electrical equipment and automation needs.

In our Baltelec.eu e-commerce store you will uncover Contactor 63A, 4NO, 230V - ESC463 worth 127.95 €, which will be a faithful and fashionable solution for your wishes. This item is created by the Hager brand using the current technologies and aligns with the pinnacle standards of well-being and productivity. We offer merchandise from the Contactors category that amalgamate lastingness and usability, which is an superior preference for various roles. Regardless of whether you call for apparatus for small fabrication or for expert industrial application, Contactor 63A, 4NO, 230V will be a secure companion in your undertaking.

Baltelec efforts to make the securing process as comfortable and fast as possible for our purchasers. We offer detailed descriptions and high-quality photos of Contactor 63A, 4NO, 230V so that you can make an knowledgeable choice. A team of specialists is always ready to help you with any matter in the Contactors section connected to the nomination and use of items. We are sure that Contactor 63A, 4NO, 230V will meet your prospects and become an significant element of your setup for just 127.95 €.

Common Queries about Hager Contactor 63A, 4NO, 230V:
