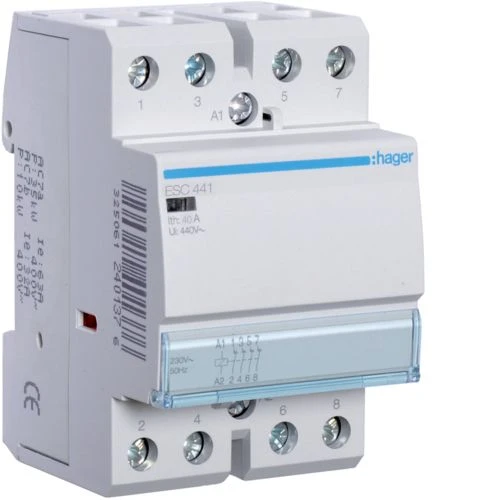

ESC441 - Contactor 40A, 4NC, 230V - Hager

Pending restock
ESC441 - Contactor 40A, 4NC, 230V - Hager - Contactor 40A, 4NC, 230V - Hager - 0
ESC441 - Contactor 40A, 4NC, 230V - Hager
97,93 € excl. VAT
121,44 € incl. VAT
Text About:
Contactor 40A, 4NC, 230V - Hager
121,44 €
SPECIFICATIONS
Additional Information
type of order Not applicable
Main
Number of modules 3
rated operational voltage ue 400 V
Complementary
acceptable current load with ac7 category a 40 A
can be accessorized Yes
command voltage ac 230 V
connection cross-sect. flexible conductor 1,5 / 16mm²
contact rating with 230 v in ac7 category a 7.3 kW
depth of installed product 60 mm
electric endurance in number of cycles 30000
fluorescent lamps in duo circuit 3000 VA
inrush power absorbed 62.5 VA
local operation/hand operation No
max. power with fluorescent parallel lamps 1300 VA
max. power with incandescent lamps 4000 W
search words Installation contactor;Mini contactor;Rail mounted device;Contactor;Control contactor;AC contactor;
time of response when closing 25 ms
winding resistance 770 Ω
[in] rated current 40 A
acceptable current load with ac7 category b 25 A
connection cross-sect. rigid cable 1,5 / 25mm²
contact rating with 230 v in ac7 category b 2.6 kW
dc control voltage 0 V
height of installed product 85 mm
max. load fluorescent lamp 1900 VA
number of mechanical operations 1000000
time of response when opening 20 ms
total power loss under in 12.8 W
connection cross-section of the control cable solid 1 / 2.5 mm²
contact rating with 400 v in ac7 category a 22 kW
number of contacts 4
type of connection with screw
width of installed product 54 mm
contact rating with 400 v in ac7 category b 7.8 kW
operating consumption 5.7 VA
storage/transport temperature -40…80 °C
thermal rated current outside of housings 40 A
tightening torque Coil: 2,5Nm ; Power: 3,5Nm
power dissipation per coil 1.5 W
type of contacts 4NC
power loss per contact 3.2 W
Rated insulation voltage 440 V
frequency 50
rated impulse withstand voltage 4 kV
Poles description 4 P
Environment
protection class isol.class II
european directive weee concerned
protection index ip IP2X
operating temperature -10…50 °C
About this product

The ESC441 - Contactor 40A, 4NC, 230V is developed to meet the obligations of technical experts, such as switchgear manufacturers, electricians, service providers, and equipment creators. ESC441 supplies impressive excellence and value for engineers in the electromechanical industry. This Contactor 40A, 4NC, 230V and other Contactors from Hager are on offer the best price and distribution time through BALTELEC, a reliable dealer attending to consultants in their procurement needs.

Professionals who have purchased Hager Contactors have steadily appreciated the maker's resilience. It has been specified that the notable competence of ESC441 - Contactor 40A, 4NC, 230V extends to a multitude of deployments. Its premium traits make it well-suited solution for diverse needs, assuring the success of your industrial, tertiary, and automation ventures.

BALTELEC specializes in serving industrial and tertiary professionals’ needs. We recognize the special requirements and desires of our partners in the sector. By partnering with our experts, your enterprise gain access to the finest price lists and delivery schedule of the top-of-the-line products like ESC441 - Contactor 40A, 4NC, 230V from Hager at a reasonable price. Registered customers receive more savings and exclusive assistance.

Do not hesitate and procure ESC441 - Contactor 40A, 4NC, 230V at our reliable and streamlined website. Don't delay in making this smart investment that certifies the supreme quality and matches the customized necessities of buyers like your team.

In case you have any matters or concerns about ESC441 - Contactor 40A, 4NC, 230V or any other Hager products, call us or refer to our Frequently Asked Questions section below. We have assembled answers to regular concerns to help you further in making an enlightened decision about industrial and tertiary electrical components.

Remember, ESC441 - Contactor 40A, 4NC, 230V from Hager is credible, affordable, and premier to other manufacturers in the Contactors category. Make it a part of your solution straight away. Take advantage of at BALTELEC, your faithful dealer for all your Contactors.

In our Baltelec.eu internet store you will detect Contactor 40A, 4NC, 230V - ESC441 worth 119.48 €, which will be a faithful and current solution for your wishes. This article is engineered by the Hager brand using the freshest technologies and follows the pinnacle standards of well-being and workmanship. We present goods from the Contactors category that merge toughness and functionality, which is an fine choice for various objectives. Independent of whether you desire equipment for small assembly or for specialized industrial utilization, Contactor 40A, 4NC, 230V will be a sure associate in your task.

Baltelec works to make the buying process as easy and fast as attainable for our clients. We offer detailed descriptions and high-quality depictions of Contactor 40A, 4NC, 230V so that you can make an versed choice. A team of specialists is always ready to help you with any wonder in the Contactors section connected to the electing and use of items. We are persuaded that Contactor 40A, 4NC, 230V will meet your wishes and become an needed element of your equipment for just 119.48 €.

Frequently Asked Questions about ESC441 - Contactor 40A, 4NC, 230V:

  • What are the benefits of purchasing Hager Contactor 40A, 4NC, 230V from baltelec.eu?

    When buying Hager Contactor 40A, 4NC, 230V from baltelec.eu, you will get authentic quality Hager Contactors products at the most advantageous pricing and delivery schedule. Additionally, registered accountsget further discounts and preferred assistance.

  • ESC441 suits for my technical requirements?

    To ensure that Hager ESC441 matches your project, we offer comprehensive details regarding product's specifications, features, and interoperability. You can access this information on the product page of the device model. If you seek additional help, our customer service team stands ready to aid you in making an informed choice.

  • What guarantee coverage is provided for Hager Contactor 40A, 4NC, 230V?

    BaltElec stands for the excellence of the items we distribute. The default guarantee coverage for Hager Contactors including ESC441 is 12 months. Nonetheless, it is subject according to the particular product, category, and could be extended. You can discover comprehensive guarantee information on the ESC441 - Contactor 40A, 4NC, 230V dedicated page or by getting in touch with our customer service representatives.

  • Can you offer global shipping for Hager ESC441 as well as other Hager items?

    Yes. Apart from catering to Estonia, Latvia, Lithuania and other European Union countries, we offer global shipping for Hager Contactor 40A, 4NC, 230V. However that shipping options, fees, and delivery times might differ depending on the shipping location. For complicated acquisitions, feel free to reach out to Baltelec.eu sales staff.

  • Do Hager MBC provided by BaltElec adhere to global norms for safety and quality?

    Completely. All Hager products offered at Baltelec online store adhere to global standards such as IEC 60898-1 standard and carry the CE certification. These norms ensure that the products fulfill stringent security, technical, reliability, and functional requirements.

  • Can BaltElec offer support on integrating renewable energy solutions, such as solar energy systems or wind energy converters, into my projects?

    Definitely!  Baltelec.eu acknowledges the importance of clean energy integration within community. Our team of experts can support you in selecting the suitable Hager products, to integrate them into your renewable energy projects}. We can offer guidance on integrating solar power systems, wind energy converters, and additional sustainable options to maximize energy generation and efficiency.

  • Do you have green options offered within the Contactors category to promote energy conservation efforts?

    Certainly! BaltElec provides a wide range of energy-efficient solutions within the Contactors category that align with green energy initiatives. Our brand's Hager products, such as the ESC441, are designed with energy efficiency in mind. By integrating these products into your electrical system, you can enhance energy usage and reduce environmental impact. Additionally, we offer affordable pricing for our energy-efficient Hager products,, making them an budget-friendly choice for advocating sustainability.

  • Are Contactor 40A, 4NC, 230V offered by Baltelec.eu genuine?

    Indeed, we solely offer authentic Hager products, including but not limited to Contactor 40A, 4NC, 230V. We procure our products exclusively through authorized distribution channels to assure their legitimacy and superior performance.
