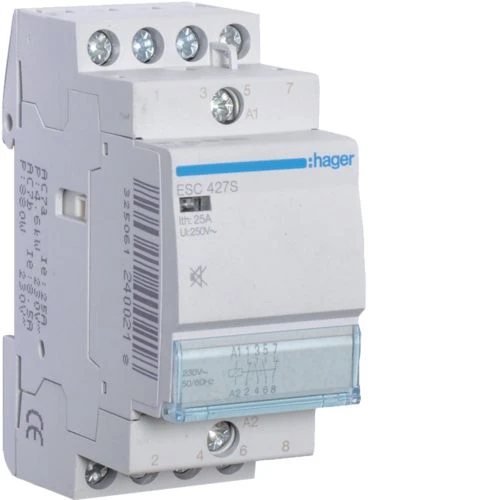

ESC427S - Humfree Contactor 25A, 2NO+2NC, 230V - Hager

Pending restock
ESC427S - Humfree Contactor 25A, 2NO+2NC, 230V - Hager - Humfree Contactor 25A, 2NO+2NC, 230V - Hager - 0
ESC427S - Humfree Contactor 25A, 2NO+2NC, 230V - Hager
48,41 € excl. VAT
60,02 € incl. VAT
Text About:
Humfree Contactor 25A, 2NO+2NC, 230V - Hager
60,02 €
SPECIFICATIONS
Additional Information
type of order Not applicable
Main
Number of modules 2
rated operational voltage ue 400 V
Complementary
acceptable current load with ac7 category a 25 A
can be accessorized Yes
command voltage ac 230 V
connection cross-sect. flexible conductor 1 / 6mm²
contact rating with 230 v in ac7 category a 4.6 kW
depth of installed product 60 mm
electric endurance in number of cycles 30000
fluorescent lamps in duo circuit 1990 VA
inrush power absorbed 3.2 VA
local operation/hand operation No
max. power with fluorescent parallel lamps 810 VA
max. power with incandescent lamps 1900 W
search words Installation contactor;Mini contactor;Rail mounted device;Contactor;Control contactor;AC contactor;AC;Hum-free;
time of response when closing 25 ms
winding resistance 14700 Ω
[in] rated current 25 A
acceptable current load with ac7 category b 8.5 A
connection cross-sect. rigid cable 1 / 10mm²
contact rating with 230 v in ac7 category b 880 W
dc control voltage 0 V
height of installed product 83 mm
max. load fluorescent lamp 950 VA
number of mechanical operations 1000000
time of response when opening 15 ms
total power loss under in 6 W
connection cross-section of the control cable solid 1 / 10 mm²
contact rating with 400 v in ac7 category a 13.8 kW
number of contacts 4
type of connection with screw
width of installed product 35.75 mm
contact rating with 400 v in ac7 category b 2.6 kW
operating consumption 3.2 VA
storage/transport temperature -40…80 °C
thermal rated current outside of housings 25 A
tightening torque 1,2Nm
power dissipation per coil 3 W
type of contacts 2NC+2NO
power loss per contact 1.5 W
Rated insulation voltage 440 V
frequency 50
rated impulse withstand voltage 4 kV
Poles description 4 P
Environment
protection class isol.class II
european directive weee concerned
protection index ip IP2X
operating temperature -10…50 °C
About this product

The ESC427S - Humfree Contactor 25A, 2NO+2NC, 230V is designed to satisfy the prerequisites of technical experts, such as circuit designers, wiring experts, service organizations, and OEMs. ESC427S delivers exceptional reliability and utility for engineers in the automation and control industry. This Humfree Contactor 25A, 2NO+2NC, 230V and other Contactors from Hager can be bought at the most economical price and fulfillment period through BaltElec, a dependable retailer fulfilling the needs of industry experts in their sourcing needs.

Engineers who have used Hager Contactors have habitually appreciated the creator's sturdiness. It has been emphasized that the extraordinary energy-efficiency of ESC427S - Humfree Contactor 25A, 2NO+2NC, 230V extends to a multitude of applications. Its high-end features make it ideal solution to suit a variety of needs, promoting success in your industrial, tertiary, and automation efforts.

Our team devotes in meeting industrial and tertiary professionals’ needs. We appreciate the distinct expectations and preferences of our partners in the realm. By partnering with our specialists, our partners obtain access to the finest costs and supply timeline of superior products like ESC427S - Humfree Contactor 25A, 2NO+2NC, 230V from Hager at a reasonable price. Registered users receive more savings and priority service.

Take action and buy ESC427S - Humfree Contactor 25A, 2NO+2NC, 230V at our risk-free and user-friendly online store. Don't delay in making this smart selection that warrants the utmost quality and adheres to the targeted demands of professionals like your business.

If you possess any issues or concerns about ESC427S - Humfree Contactor 25A, 2NO+2NC, 230V or any other Hager products, reach out to us or refer to our Support section section below. We have amassed answers to frequent doubts to assist you further in making an knowledgeable decision about industrial and tertiary electrical components.

Remember, ESC427S - Humfree Contactor 25A, 2NO+2NC, 230V from Hager is secure, value-priced, and elite to industry peers in the Contactors category. Feel free to make it a part of your apparatus immediately. Obtain at BALTELEC, your faithful dealer for all your Contactors.

In our Baltelec.eu digital store you will detect Humfree Contactor 25A, 2NO+2NC, 230V - ESC427S worth 59.06 €, which will be a faithful and contemporary solution for your desires. This item is produced by the Hager brand using the current technologies and follows the maximum standards of defense and efficacy. We give products from the Contactors category that associate robustness and usefulness, which is an excellent preference for various roles. Without consideration of whether you crave devices for small manufacturing or for experienced industrial utilization, Humfree Contactor 25A, 2NO+2NC, 230V will be a dependable helper in your endeavor.

Baltelec ventures to make the procuring process as uncomplicated and fast as workable for our customers. We offer detailed descriptions and high-quality pictures of Humfree Contactor 25A, 2NO+2NC, 230V so that you can make an knowledgeable choice. A team of professionals is always ready to help you with any uncertainties in the Contactors section connected to the selection and use of materials. We are persuaded that Humfree Contactor 25A, 2NO+2NC, 230V will meet your wishes and become an indispensable element of your hardware for just 59.06 €.

Common Questions about Hager Humfree Contactor 25A, 2NO+2NC, 230V:
