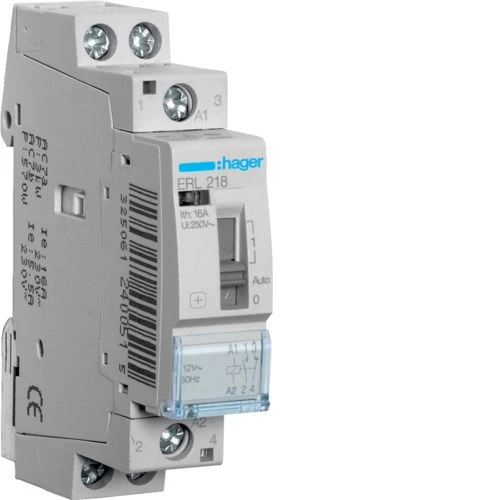

ERL218 - Relay 16A, 1NO+1NC, 12V - Hager
Expected in 2-4 weeks
SPECIFICATIONS
Additional Information
type of order
Relay
Main
Number of modules
1
rated operational voltage ue
230 V
Complementary
acceptable current load with ac7 category a
16 A
can be accessorized
Yes
command voltage ac
12 V
connection cross-sect. flexible conductor
1 / 6mm²
contact rating with 230 v in ac7 category a
3 kW
depth of installed product
60 mm
electric endurance in number of cycles
30000
fluorescent lamps in duo circuit
1200 VA
inrush power absorbed
10.7 VA
local operation/hand operation
Yes
max. power with fluorescent parallel lamps
490 VA
max. power with incandescent lamps
1100 W
search words
Installation relay;Mini contactor;Rail mounted device;Contactor;Control contactor;AC contactor;
time of response when closing
25 ms
[in] rated current
16 A
acceptable current load with ac7 category b
5.5 A
connection cross-sect. rigid cable
1 / 10mm²
contact rating with 230 v in ac7 category b
880 W
dc control voltage
0 V
height of installed product
83 mm
max. load fluorescent lamp
570 VA
number of mechanical operations
100000
quantity of nc contacts
1
quantity of no contacts
1
time of response when opening
15 ms
total power loss under in
2 W
connection cross-section of the control cable solid
1 / 10 mm²
width of installed product
17.85 mm
operating consumption
2.9 VA
storage/transport temperature
-40…80 °C
thermal rated current outside of housings
16 A
tightening torque
1,2Nm
power dissipation per coil
1 W
type of contacts
1NC+1NO
power loss per contact
1 W
Rated insulation voltage
250 V
frequency
50
rated impulse withstand voltage
4 kV
Environment
european directive weee
concerned
protection index ip
IP2X
operating temperature
-10…50 °C
