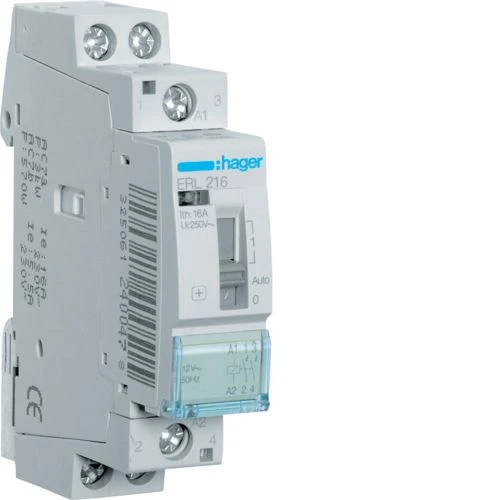

ERL216 - Relay 16A, 2NO, 12V - Hager

Expected in 2-4 weeks
ERL216 - Relay 16A, 2NO, 12V - Hager - Relay 16A, 2NO, 12V - Hager - 0
ERL216 - Relay 16A, 2NO, 12V - Hager
33,04 € excl. VAT
40,31 € incl. VAT
Text About:
Relay 16A, 2NO, 12V - Hager
40,31 €
SPECIFICATIONS
Additional Information
type of order Relay
Main
Number of modules 1
rated operational voltage ue 230 V
Complementary
acceptable current load with ac7 category a 16 A
can be accessorized Yes
command voltage ac 12 V
connection cross-sect. flexible conductor 1 / 6mm²
contact rating with 230 v in ac7 category a 3 kW
depth of installed product 60 mm
electric endurance in number of cycles 30000
fluorescent lamps in duo circuit 1200 VA
inrush power absorbed 10.7 VA
local operation/hand operation Yes
max. power with fluorescent parallel lamps 490 VA
max. power with incandescent lamps 1100 W
search words Installation relay;Mini contactor;Rail mounted device;Contactor;Control contactor;AC contactor;
time of response when closing 25 ms
[in] rated current 16 A
acceptable current load with ac7 category b 5.5 A
connection cross-sect. rigid cable 1 / 10mm²
contact rating with 230 v in ac7 category b 880 W
dc control voltage 0 V
height of installed product 83 mm
max. load fluorescent lamp 570 VA
number of mechanical operations 100000
quantity of no contacts 2
time of response when opening 15 ms
total power loss under in 3 W
connection cross-section of the control cable solid 1 / 10 mm²
width of installed product 17.85 mm
operating consumption 2.9 VA
storage/transport temperature -40…80 °C
thermal rated current outside of housings 16 A
tightening torque 1,2Nm
power dissipation per coil 1 W
type of contacts 2NO
power loss per contact 1 W
Rated insulation voltage 250 V
frequency 50
rated impulse withstand voltage 4 kV
Environment
european directive weee concerned
protection index ip IP2X
operating temperature -10…50 °C
About this product

The ERL216 - Relay 16A, 2NO, 12V is developed to satisfy the necessities of industry specialists, such as control panel builders, wiring specialists, management services, and primary equipment makers. ERL216 provides exceptional durability and worth for experts in the automation and control industry. This Relay 16A, 2NO, 12V and other Contactors from Hager are available at the finest pricing and supply period through BALTELEC.EU, a trustworthy provider supporting experts in their gathering needs.

Users who have used Hager Contactors have invariably admired the producer's solidity. It has been highlighted that the outstanding efficiency of ERL216 - Relay 16A, 2NO, 12V extends to a broad spectrum of functions. Its elite components make it great solution for various requirements, promoting success in your industrial, tertiary, and automation efforts.

BaltElec team centers in addressing industrial and tertiary professionals’ needs. We understand the customized criteria and requirements of our clients in the niche. By aligning with our specialists, our customers obtain access to the best price lists and inventory of top-tier products like ERL216 - Relay 16A, 2NO, 12V from Hager at a competitive price. Baltelec account members benefit from additional savings and top-tier service.

Make a move and grab ERL216 - Relay 16A, 2NO, 12V at our well-established and convenient web store. Don't delay in making this sensible move that promises the ultimate quality and adheres to the individual criteria of customers like yourselves.

If you encounter any questions or concerns about ERL216 - Relay 16A, 2NO, 12V or any other Hager products, reach out to us or refer to our Information center section below. We have assembled answers to habitual issues to facilitate you further in making an considered decision about industrial and tertiary electrical components.

Remember, ERL216 - Relay 16A, 2NO, 12V from Hager is credible, inexpensive, and better to alternative suppliers in the Contactors category. Make it a part of your apparatus immediately. Get at BALTELEC, your trusted partner for all your professional electrical equipment and automation needs.

In our Baltelec.eu e-commerce store you will detect Relay 16A, 2NO, 12V - ERL216 worth 40.31 €, which will be a safe and modern solution for your needs. This commodity is formulated by the Hager brand using the advanced technologies and adheres to the optimal standards of protection and effectiveness. We propose products from the Contactors category that fuse resilience and functionality, which is an premium selection for various intents. Despite of whether you call for equipment for small fabrication or for competent industrial operation, Relay 16A, 2NO, 12V will be a safe aide in your assignment.

Baltelec aims to make the shopping process as accessible and fast as doable for our shoppers. We offer detailed explanations and high-quality images of Relay 16A, 2NO, 12V so that you can make an well-informed choice. A team of maestros is always ready to help you with any matter in the Contactors section linked to the selection and use of supplies. We are persuaded that Relay 16A, 2NO, 12V will meet your demands and become an crucial element of your device for just 40.31 €.
